EDN228
6

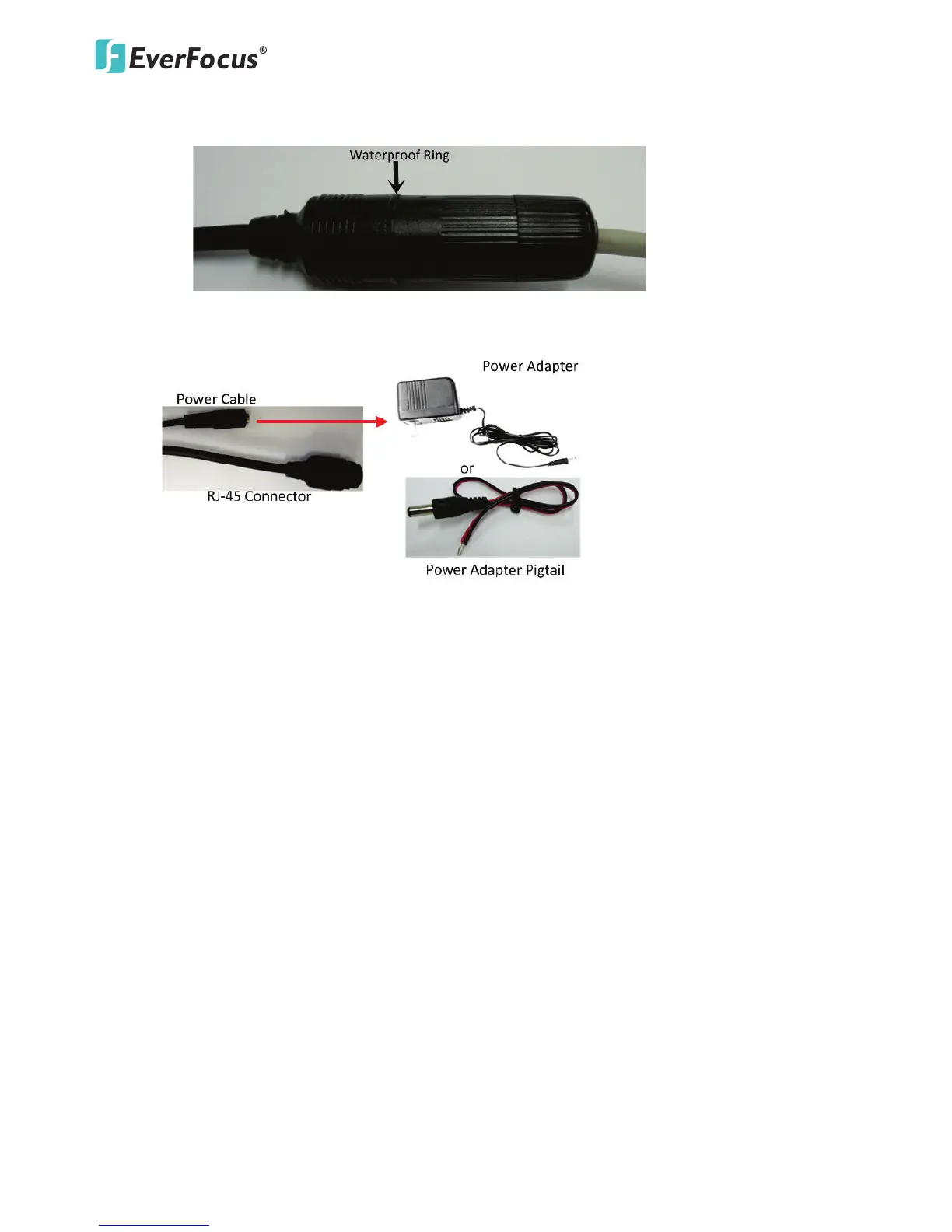

c. Place the Waterproof Ring into the LAN / PoE cable. Connect the RJ-45 cable to the RJ-45
Connector Cable. Tightly screw the Cable Gland and Screw Cap to the RJ-45 Connector Cable.
6. Optionally connect the camera to the 12 VDC power source using the supplied Power Adapter
Pigtail or a power adapter.
7. Screw back the camera cover to the camera base.
