EverFocus EDR810M - Page 25

Trunk
Drive seat ( between seat and wall) or Passenger seat (underneath)
( Users are suggested to use “support” for mounting option)
Glove box (inside or underneath)
Generator
+
-
-
+
Vehicle battery
(+24V)
DVR
Fuse(5A)
Key start
Spilt filter
+
-
Car body
On/Off switch
Vehicle body

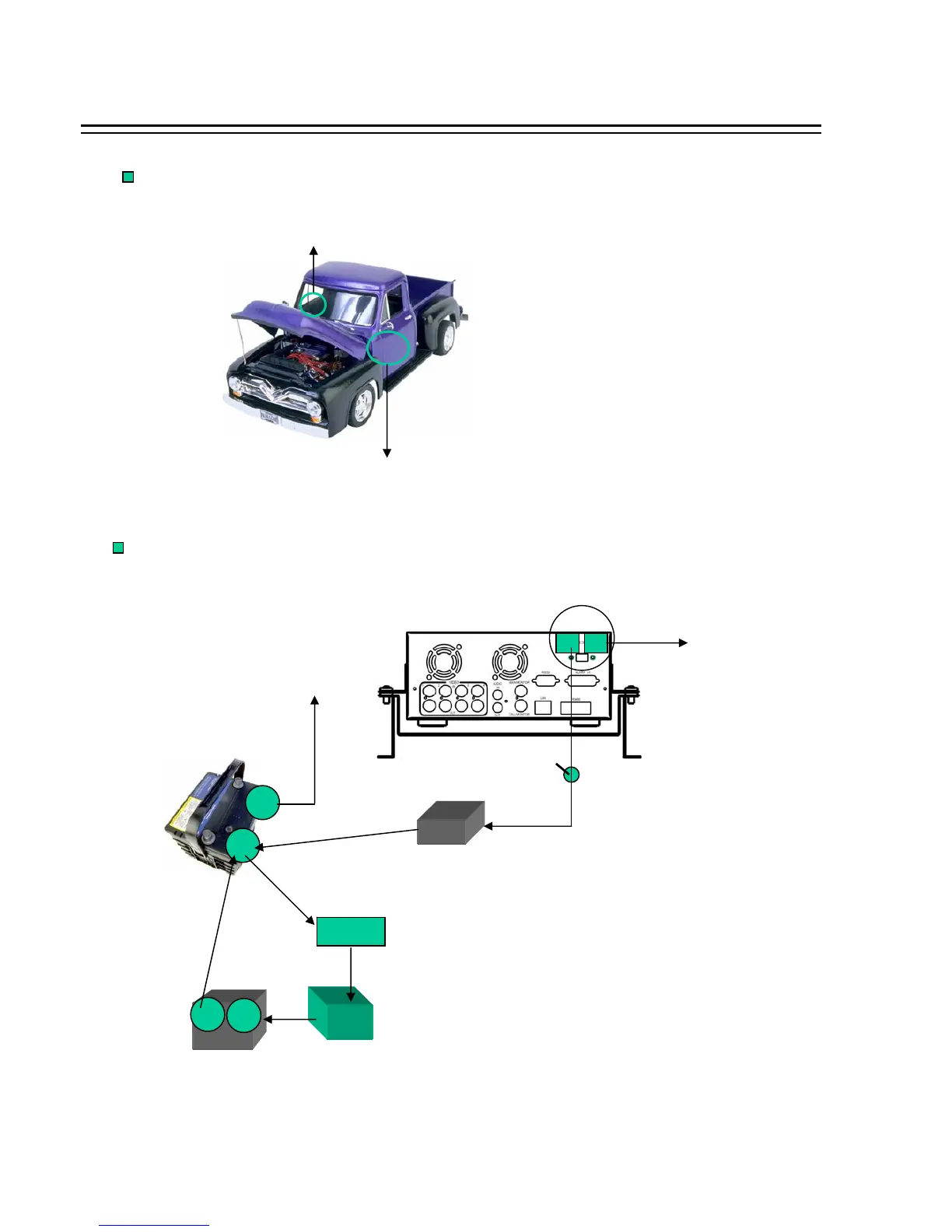

Show the wiring on the wiring harness that connects to the electrical system.
Possible Installation Locations Inside the Automobile Vehicle:
