5.5 EVERFOCUS DVR CONNECTION
The EKB 500 keyboard can control the following digital video recorders:
EDSR series (despite EDSR100 19" model)
EDR series (MPEG-4 series)
EDVR series
Paragon series

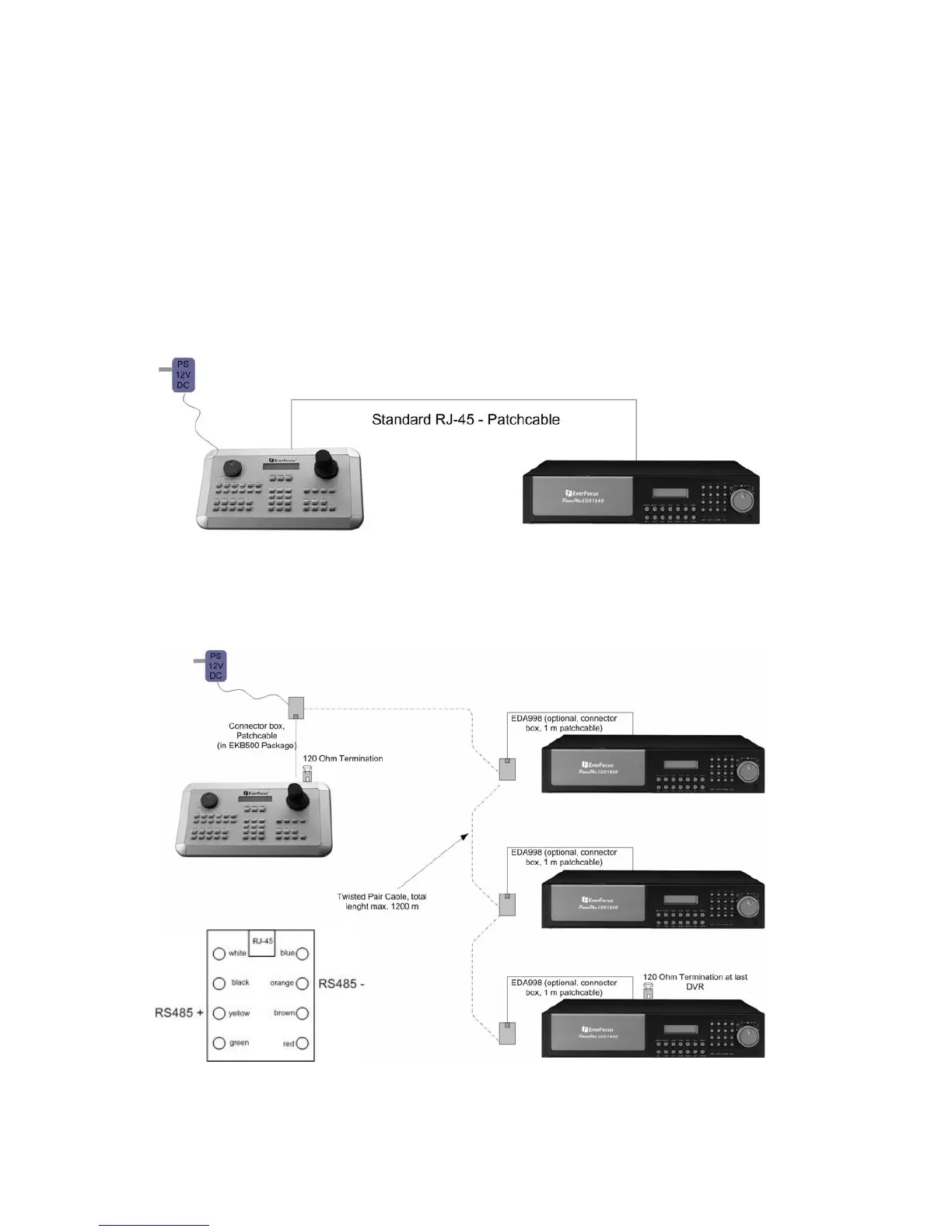

Installation with standard network cable:
For short distances, EKB 500 can directly be connected using a standard network cable (patch cable,
uncrossed!).
Connection with EDA998 connector kit:
Place the EDA998 connector kit at the RS-485 bus for easy DVR installation.
