EPA6220 / EPA6236
4

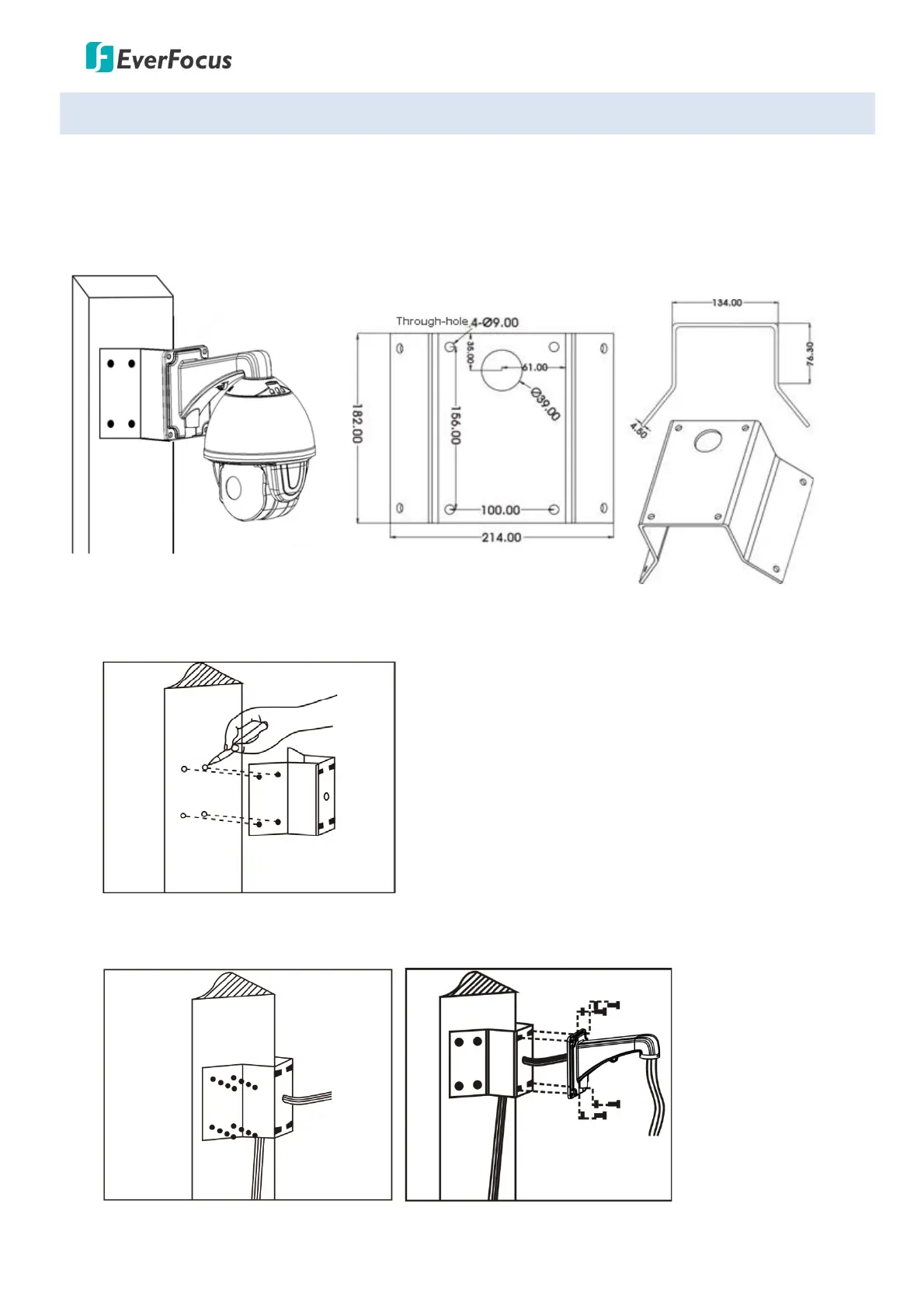

2.2 Corner Mounting
You can purchase the Corner Mount Bracket (please refer to 1.4 Optional Accessories) to install the speed
dome camera to the concrete corner wall with 90°angle. Note that the wall should be withstood at least 4
times the weight of the speed dome camera.
Corner Mount Bracket
1. Mark the screw holes on the wall based on the Corner Mount Bracket, drill the screw-depth holes
and then screw the Corner Mount Bracket to the wall with M8 screws and screw nuts.
2. Run the cables through the Wall Mount Bracket and Corner Mount Bracket, and then screw the Wall
Mount Bracket to the Corner Mount Bracket.
3. Screw the speed dome camera to the Wall Mount Bracket.
