70
Electrical System
Helm Switch Panel
The following is a description of the accessories
controlled by the helm accessory switch panel:
Horn
A momentary switch that activates the boat horn
located on the hardtop.
Windshield Wiper
Activates the windshield wiper.
Windshield Washer
A momentary switch that activates the solenoid that
sprays water on the windshield washer from the
fresh water system.
Notice:
The fresh water system must be activated for
the windshield washers to work.
Helm Lights
Activates the red overhead map lights above the
helm.
Notice:
Red lights have less eect on night vision and
should be selected if you need to illuminate the
helm area while navigating at night.
Switch Dimming
Controls switch panel backlight intensity. Press
and hold the switch to increase intensity, press
and hold again to decrease intensity.
Nav/Anc Lights
Activates the navigation and anchor lights. Press the
switch once for navigation lights. Press the switch
again to activate the anchor light. Press the switch
again to turn the lights o.
Navigation lights are located on the hardtop and
are intended to keep other vessels informed of your
presence and course. All vessels are required to
display navigation lights between sunset and sun-
rise and other periods of reduced visibility. During
these times, no other lights that could be mistaken
for lights specied in the Rules of the Road can be
displayed, nor any lights that impair the visibility or
distinctive character of navigation lights, or interfere
with the keeping of a proper lookout.
Your boat is equipped with navigation lights required
by the U.S. Coast Guard at the time of manufac-
ture and should not be modied. It is up to you to
make sure they are operational and turned on when
required. Navigation lights should be replaced im-
mediately if they are ever found to be inoperable.

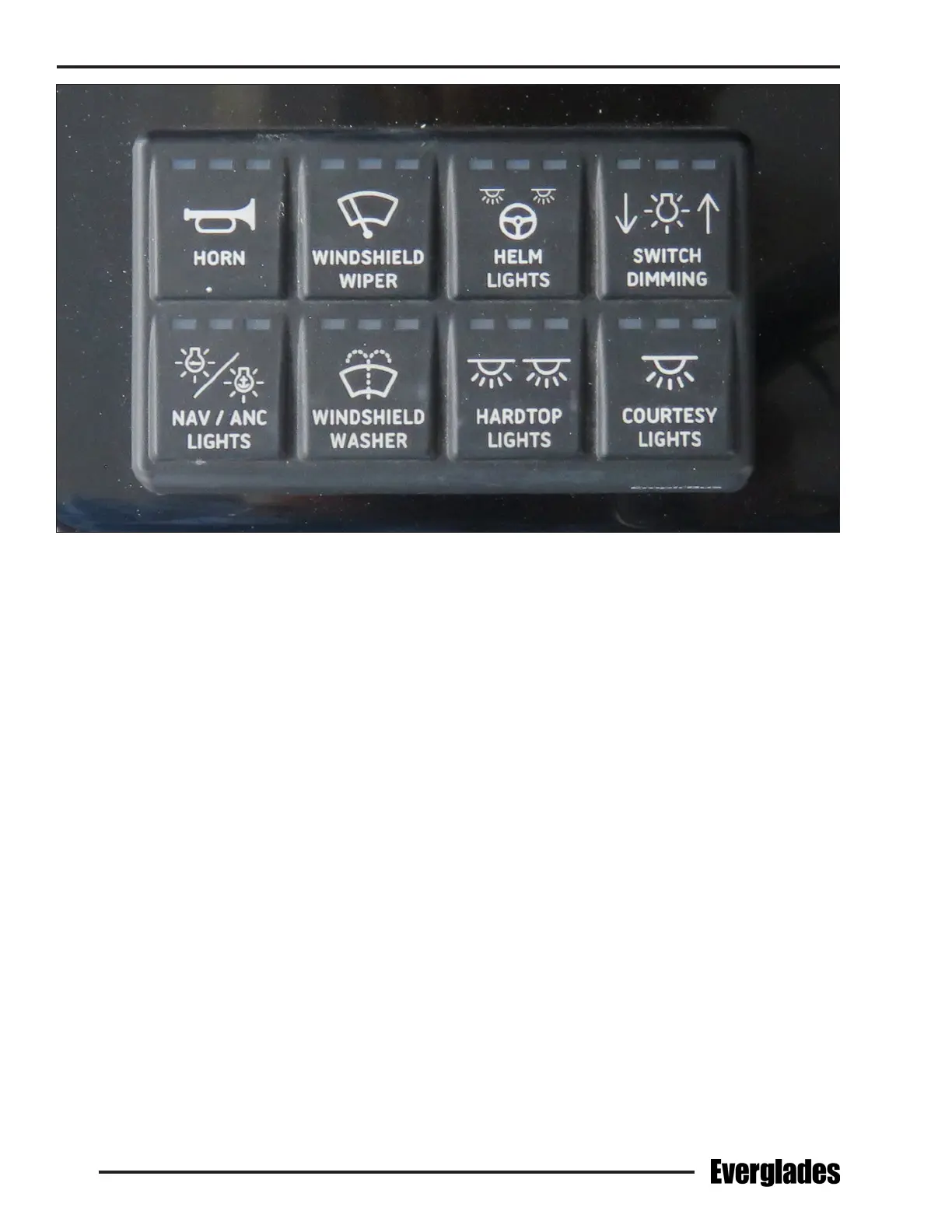

Helm Switch Panel On Port Side Of Steering Wheel
