71
Electrical System
Hardtop Lights
Activates the lights in the hard top above the helm
and mezzanine seats.
Courtesy Lights
Activates the lights below the gunnels that illumi-
nate the cockpit sole.
Port Hardtop Switch Panel
The following is a description of the accessories
controlled by the port accessory switch panel in
the hardtop above the helm:
Windshield Up/Windshield Down
Two momentary switches that activate the hy-
draulic rams that raise and lower the windshield
to provide ventilation for the helm area and/
or improve visibility. Press and hold the DOWN
switch to lower the windshield. Press and hold the
UP switch to raise the windshield. The switches
return to the OFF position when released.
Fresh Water
Activates the pump that supplies water pres-
sure for the fresh water system. The pump is
the pressure demand type. A pressure switch
automatically controls the water pump when the
system is activated and properly primed.
Raw Water
Activates the seawater system pump that supplies
the raw water washdown hose connector in the cock-
pit. The pump is the pressure demand type. A pres-
sure switch automatically controls the water pump
when the system is activated and properly primed.

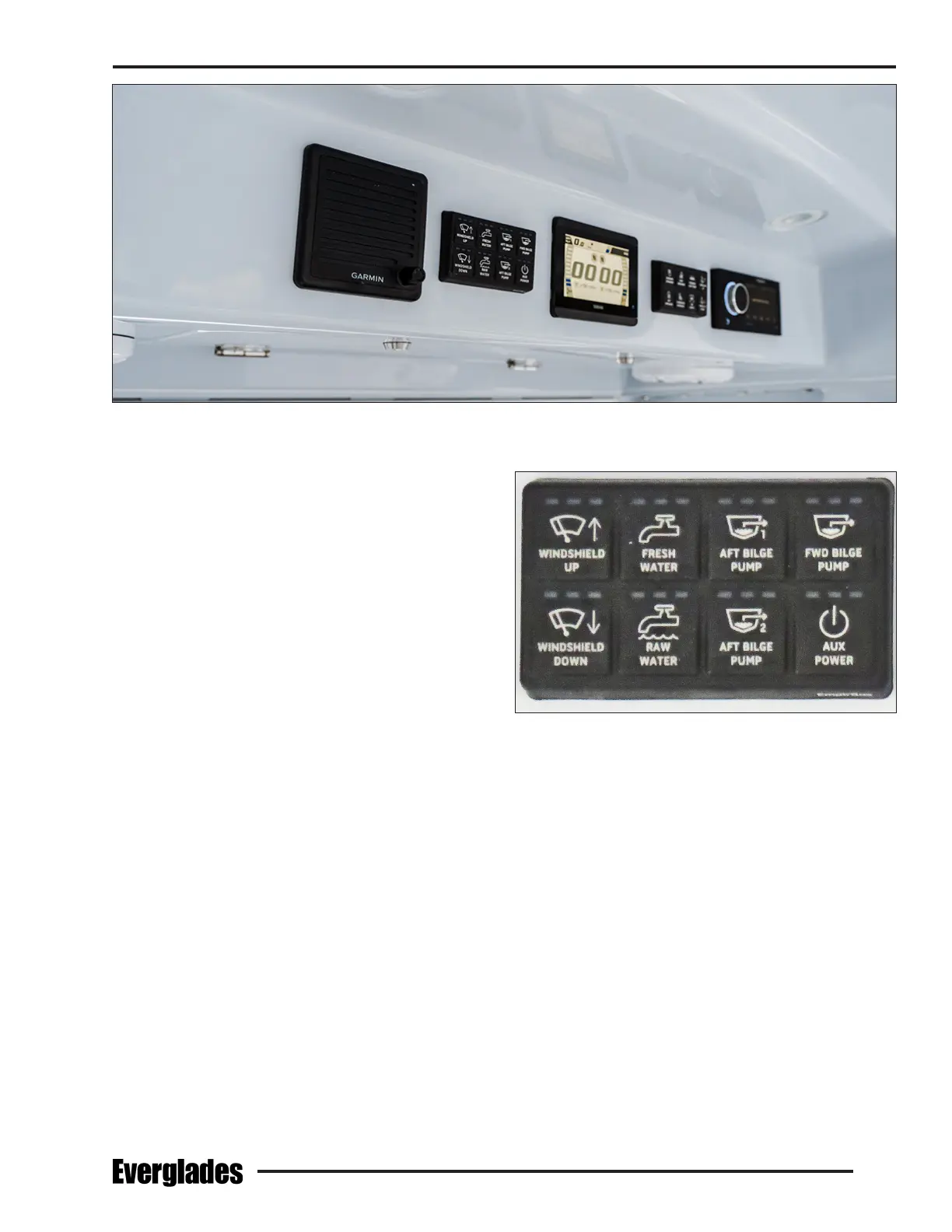

Switch Panels In The Hardtop Instrument Panel
Port Hardtop Switch Panel
Aft Bilge Pump 1
Manually activates aft bilge pump #1 located
in the aft systems compartment bilge near the
transom. The pump moves water out a thru-hull
tting in the hull. The pump is also activated by
an automatic switch whenever the batteries are
connected. This pump will run as needed when-
ever water in the bilge accumulates high enough
to be activated by the automatic switch and turn
o when the water is removed.
Aft Bilge Pump 2
Manually activates the aft emergency bilge pump
# 2 located behind the aft bilge pump in the aft
systems compartment bilge near the transom.
The pump moves water out a thru-hull tting in the
hull. The pump is also activated by an automatic
switch whenever the batteries are connected. This
pump will run as needed whenever water in the
