72
Electrical System
bilge accumulates high enough to be activated by
the automatic switch and turn o when the water
is removed.
Fwd Bilge Pump
Manually activates the forward bilge pump located
below the head compartment sole. The pump
moves water out a thru-hull tting in the hull.
The pump is also activated by an automatic switch
whenever the batteries are connected. This pump
will run as needed whenever water in the bilge
accumulates high enough to be activated by the
automatic switch and turn o when the water is
removed.
Notice:
The bilge pumps will start automatically
when there is sucient water in the bilge
to activate the oat switch. Each automatic
switch is protected by a labeled fuse located
in the fuse and breaker panel and are always
supplied current when the batteries are con-
nected.
AUX
Reserved for additional 12 volt accessories.
Starboard Hardtop Switch Panel
The following is a description of the accessories
controlled by the starboard accessory switch panel
in the hardtop above the helm:
Forward Spreader
Activates the overhead light at the front of the
hardtop that illuminates the forward cockpit.
Aft Spreader
Activates the overhead light at the rear of the
hardtop that illuminates the aft cockpit.
Port Spreader
Activates the overhead light on the port side of the
hardtop that illuminates the port cockpit.
Starboard Spreader
Activates the overhead light on the starboard side of
the hardtop that illuminates the starboard cockpit.
Forward Light Bars
Activates the overhead lights at the front of the
hardtop that illuminate the area forward of the
bow.
Underwater Lights
Activates the LED underwater lights in stern below
the water line.
Windlass Up/Windlass Down
Two momentary switches that control the wind-
lass, which is mounted in a compartment below
the deck at the bow. Press and hold the WIND-
LASS DOWN switch to pay the anchor line out.
Press and hold the WINDLASS UP switch to pull
the anchor line in. The switches return to the OFF
position when released.

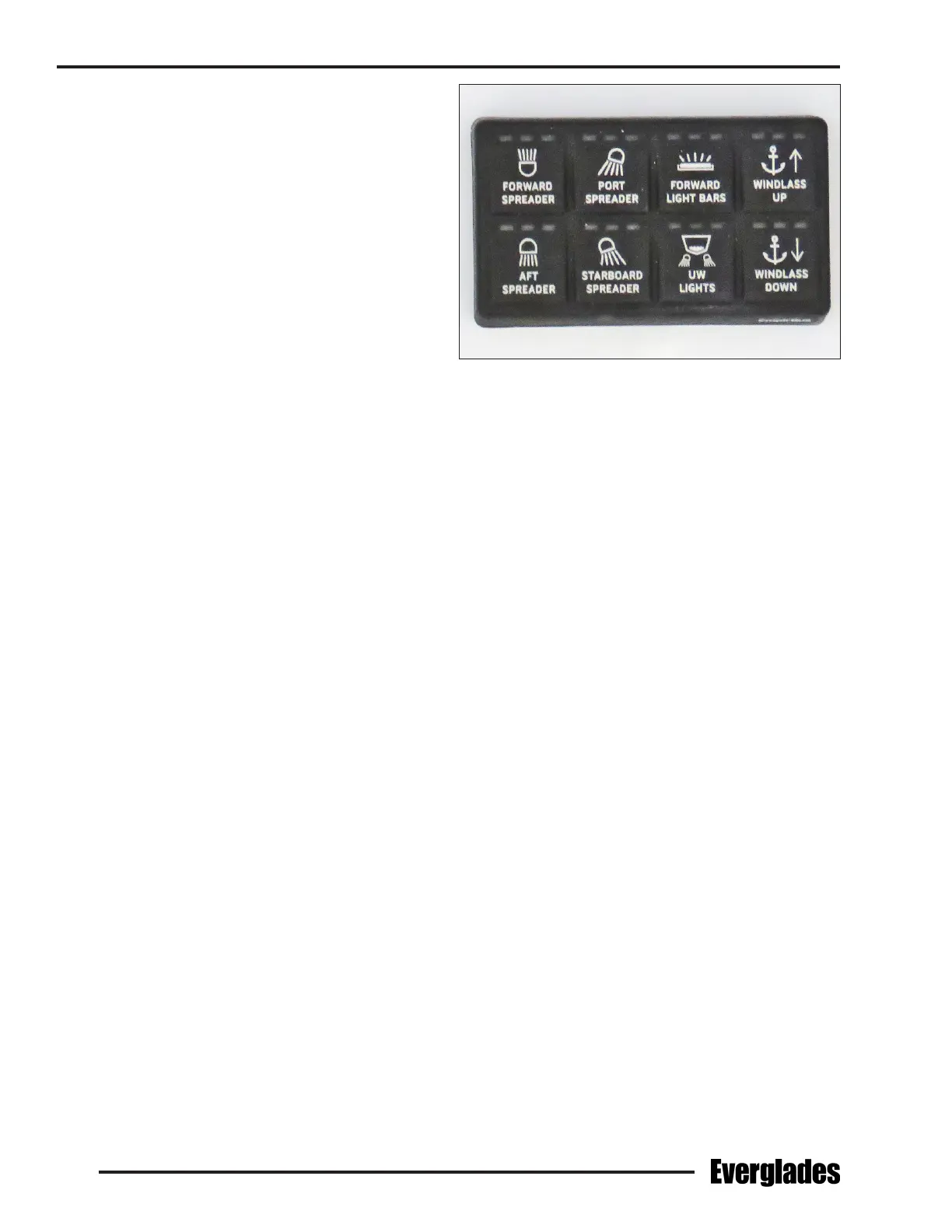

Starboard Hardtop Switch Panel
