Everglades 335 CC - Page 74

74
Electrical System
Raw H2O Pump
Activates the raw water washdown pump that sup-
plies the washdown hose in the cockpit. The pump
is the pressure demand type. A pressure switch
automatically controls the water pump when the
system is activated and properly primed.
Forward Bilge Pump 1
Manually activates the forward bilge pump located
below the head compartment sole. The pump
moves water out a thru-hull tting in the hull.
The pump is also activated by an automatic switch
whenever the batteries are connected. This pump
will run as needed whenever water in the bilge
accumulates high enough to be activated by the
automatic switch and turn o when the water is
removed.
Aft Bilge Pump 1
Manually activates the aft bilge pump located in the
aft systems compartment bilge near the transom.
The pump moves water out a thru-hull tting in the
hull. The pump is also activated by an automatic
switch whenever the batteries are connected. This
pump will run as needed whenever water in the
bilge accumulates high enough to be activated by
the automatic switch and turn o when the water
is removed.
Aft Bilge Pump 2
Manually activates the aft emergency bilge pump
located behind the aft bilge pump in the aft sys-
tems compartment bilge near the transom. The
pump moves water out a thru-hull tting in the
hull. The pump is also activated by an automatic
switch whenever the batteries are connected. This
pump will run as needed whenever water in the
bilge accumulates high enough to be activated by
the automatic switch and turn o when the water
is removed.
Notice:
The bilge pumps will start automatically
when there is sucient water in the bilge
to activate the automatic switch. Each au-
tomatic switch is protected by a labeled fuse
located in a panel on the fuse and breaker
panel in the battery compartment and are
always supplied current when the batteries
are connected.

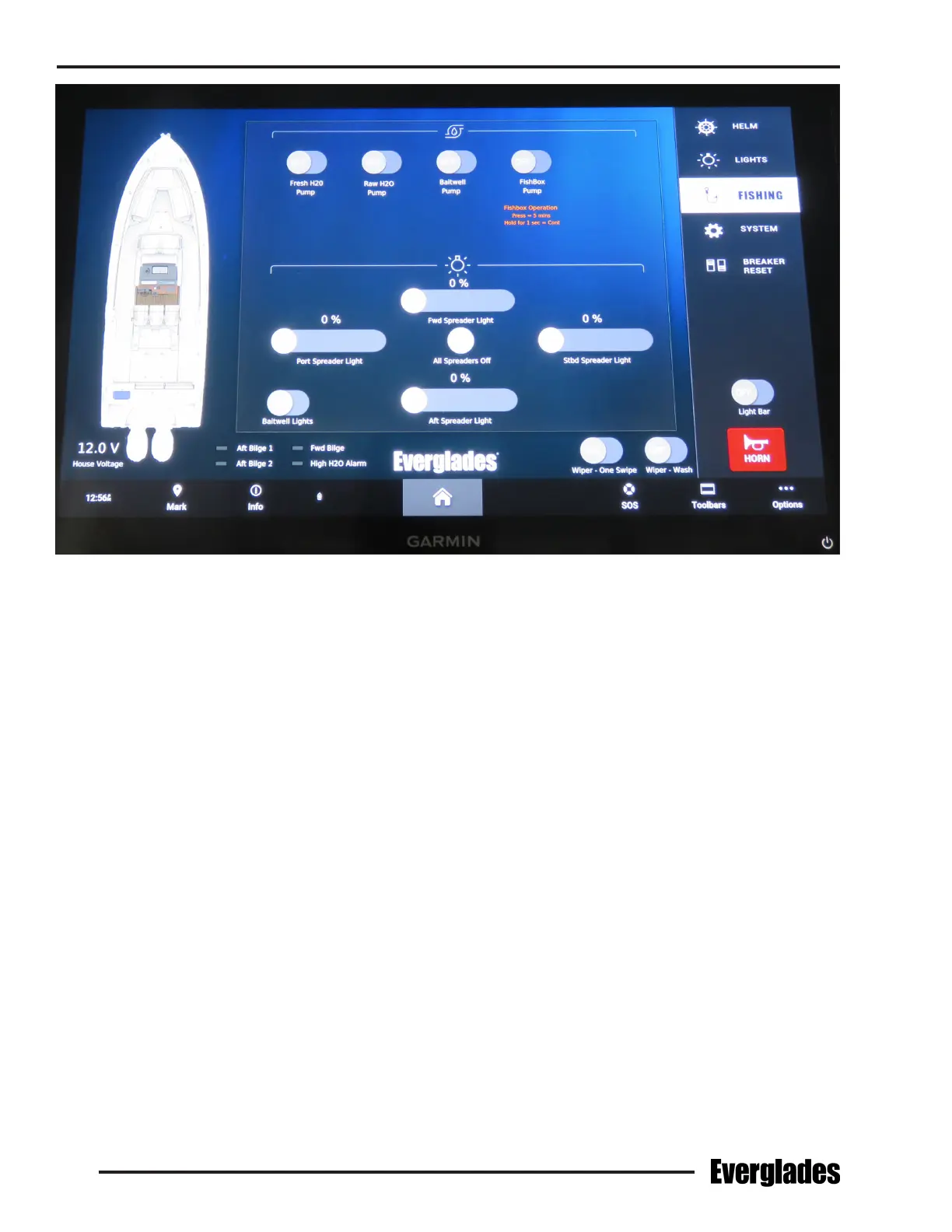

Typical Fishing Page In Helm Touch Screen Display
