Electrical System
The following are the main circuits supplied and
protected by heavy duty circuit breakers:
Main
Protects the circuit that supplies 12 volt current to the
digital switching modules, accessory switch panels
and most DC accessories. This circuit is deactivated
when the House battery switch is o.
Seakeeper (Optional)
Protects the circuit that supplies 12 volt current to the
Seakeeper main circuit. This circuit is deactivated
when the House battery switch is o.
Amp (2)
Protects the circuits that supply 12 volt current to the
stereo ampliers. This circuit is deactivated when
the House battery switch is o.
DCM 1,2,3
Protects the circuits that supply 12 volt current to
the digital switch control modules. These circuits are
deactivated when the House battery switch is o.
Windshield
Protects the circuit that supplies 12 volt current to the
windshield hydraulic system main circuit. This circuit
is deactivated when the House battery switch is o.
Hardtop
Protects the circuit that supplies 12 volt current to the
hardtop accessory circuits. This circuit is deactivated
when the House battery switch is o.
Windlass
Protects the circuit that supplies 12 volt current
to the windlass main circuit. This circuit is deac-
tivated when the House battery switch is o.
Spare
Reserved for additional 12 Volt Equipment. This
circuit is deactivated when the House battery
switch is o.
Continuous Power Fuse Panels
These fuses protect circuits that are always active
and not turned o by the battery switches. The
continuous power circuits are always supplied current
when the house batteries are connected.
The fuses in these panels provide continuous
power and protect the circuits for the follow-
ing accessories:

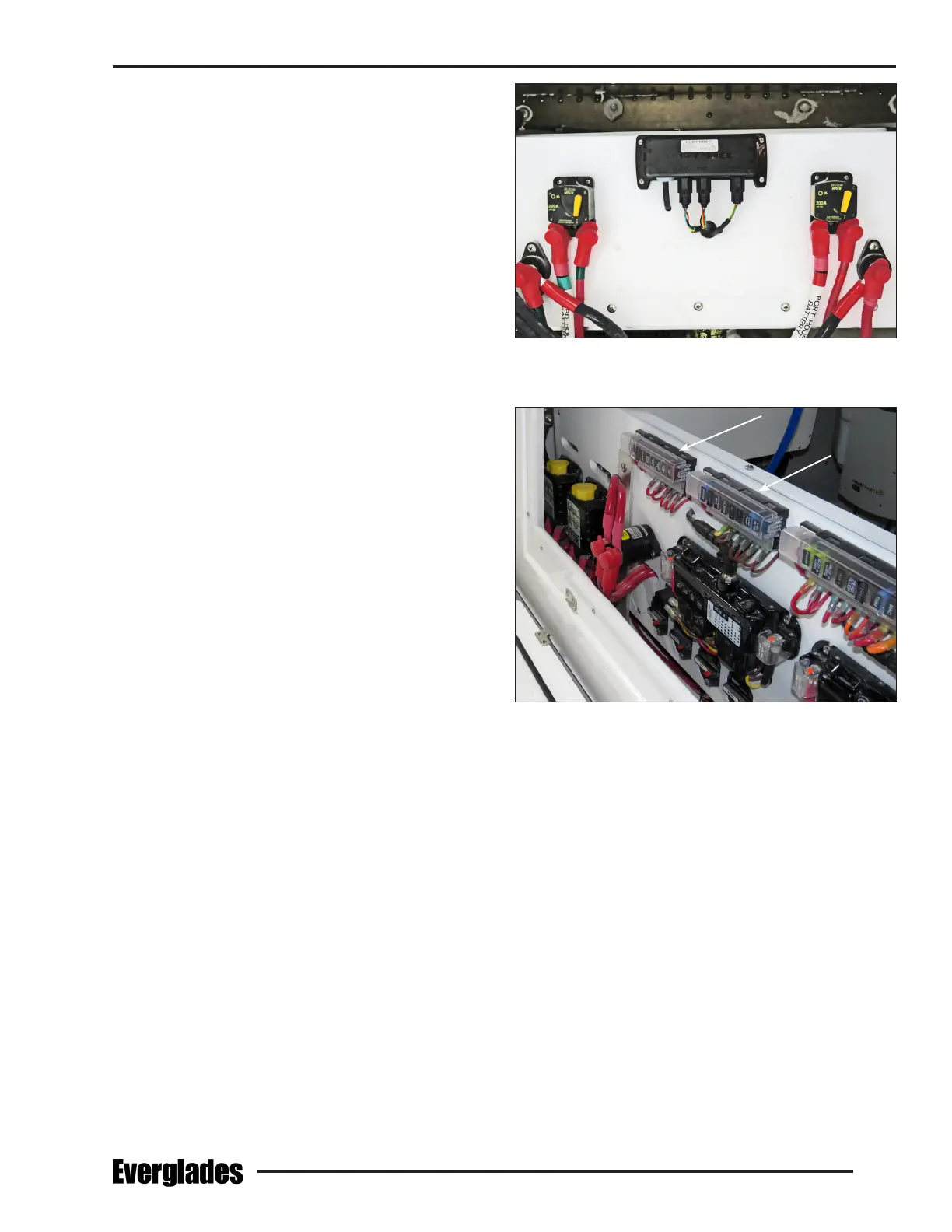

Main Circuit Breakers In Aft Systems Compartment
House SW
Protects the circuit for the switch that controls the
remote battery switch for the House 12 volt electri-
cal system.
Port SW
Protects the circuit for the switch that controls the
remote battery switch for the port engine 12 volt
electrical system.
STBD SW
Protects the circuit for the switch that controls the
remote battery switch for the Starboard engine 12
volt electrical system.
Continuous Power Fuse Panels
