Electrical System
Aft 1
Protects the circuit for the automatic switch that
activates the aft bilge pump located in the aft bilge.
A light in the Aft 1 Bilge Pump switch will be lit when-
ever the pump is activated.
Aft 2
Protects the circuit for the automatic switch that
activates the emergency aft bilge pump located in
the aft bilge behind the aft bilge pump. A light in
the Aft 2 Bilge Pump switch will be lit whenever the
pump is activated.
Fwd Bilge
Protects the circuit for the automatic switch that
activates the forward bilge pump located in the
bilge below the head compartment sole. A light in
the Fwd Bilge Pump switch will be lit whenever the
pump is activated.
Sump Pump
Circuit for the automatic switch that activates
the head compartment drain sump pump located
below the head compartment sole.
Alarm
Protects the circuit for the automatic switch in the
aft bilge that activates the high water alarm. The
high water alarm will sound to alert the operator of
unusually high water in the bilge.
Stereo Memory
Protects the circuit that supplies continuous 12 volt
electrical current to the memory circuit in the stereo.
Notice:
The continuous power circuit fuses are always
supplied current when the batteries are con-
nected. These circuits are not deactivated
when the battery switches are o.
PROPER FUSE OR BREAKER PROTECTION MUST BE
PROVIDED FOR ALL 12 VOLT EQUIPMENT ADDED. DO NOT
OVERLOAD THE ACCESSORY CIRCUIT BREAKERS, FUSE
PANELS OR OTHER CIRCUITRY THROUGH ADDITIONAL 12
VOLT EQUIPMENT.

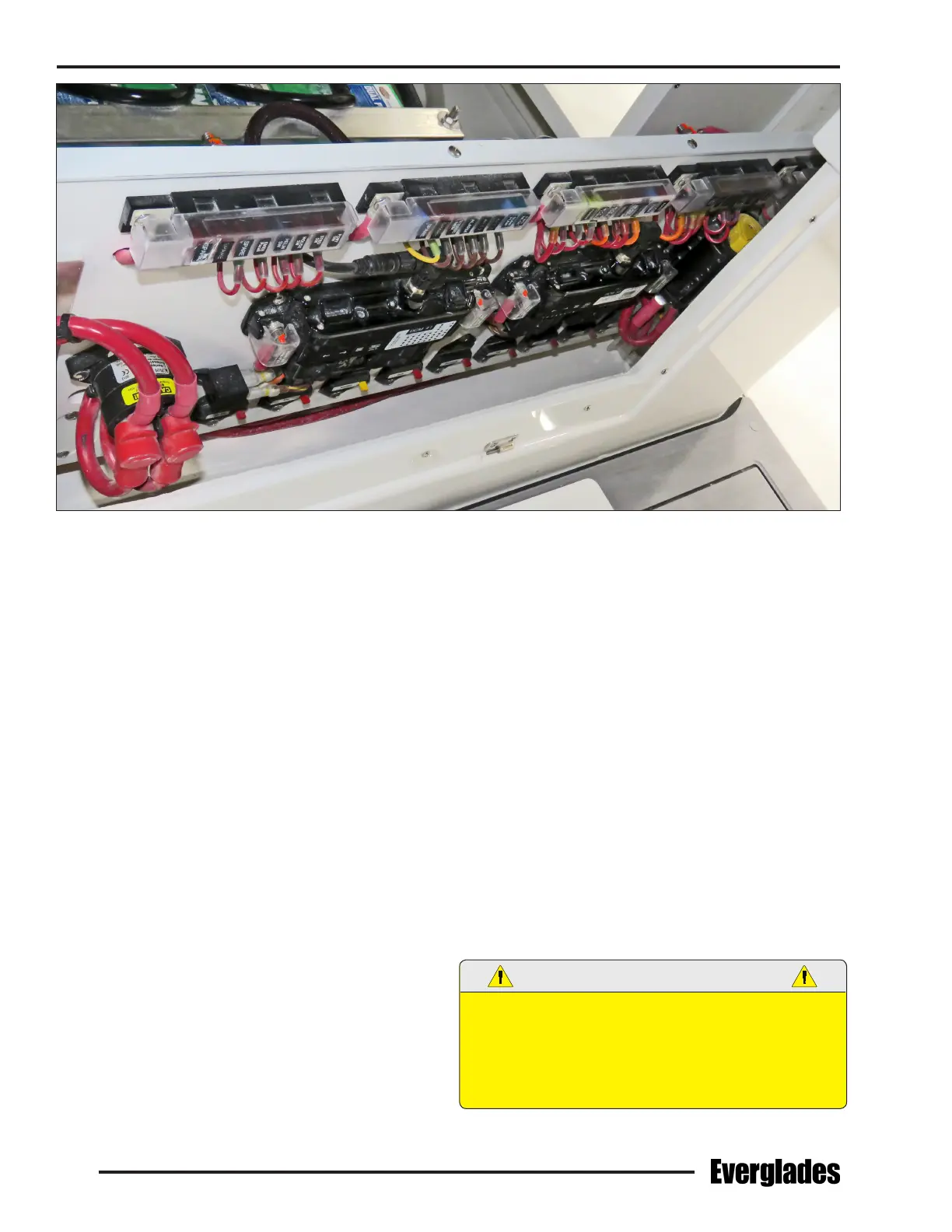

Accessory Fuse Panels On Fuse & Breaker Panel In Battery Compartment
