NO. DESCRIPTION QTY
21
HEX BOLT (M10 x 130mm)
1
25
FLATWASHERS (M10)
2
29
NYLON LOCKNUT (M10)
1
32
BACKRESt SUPPORT BUSHING
2
ASSEMBLY STEPS

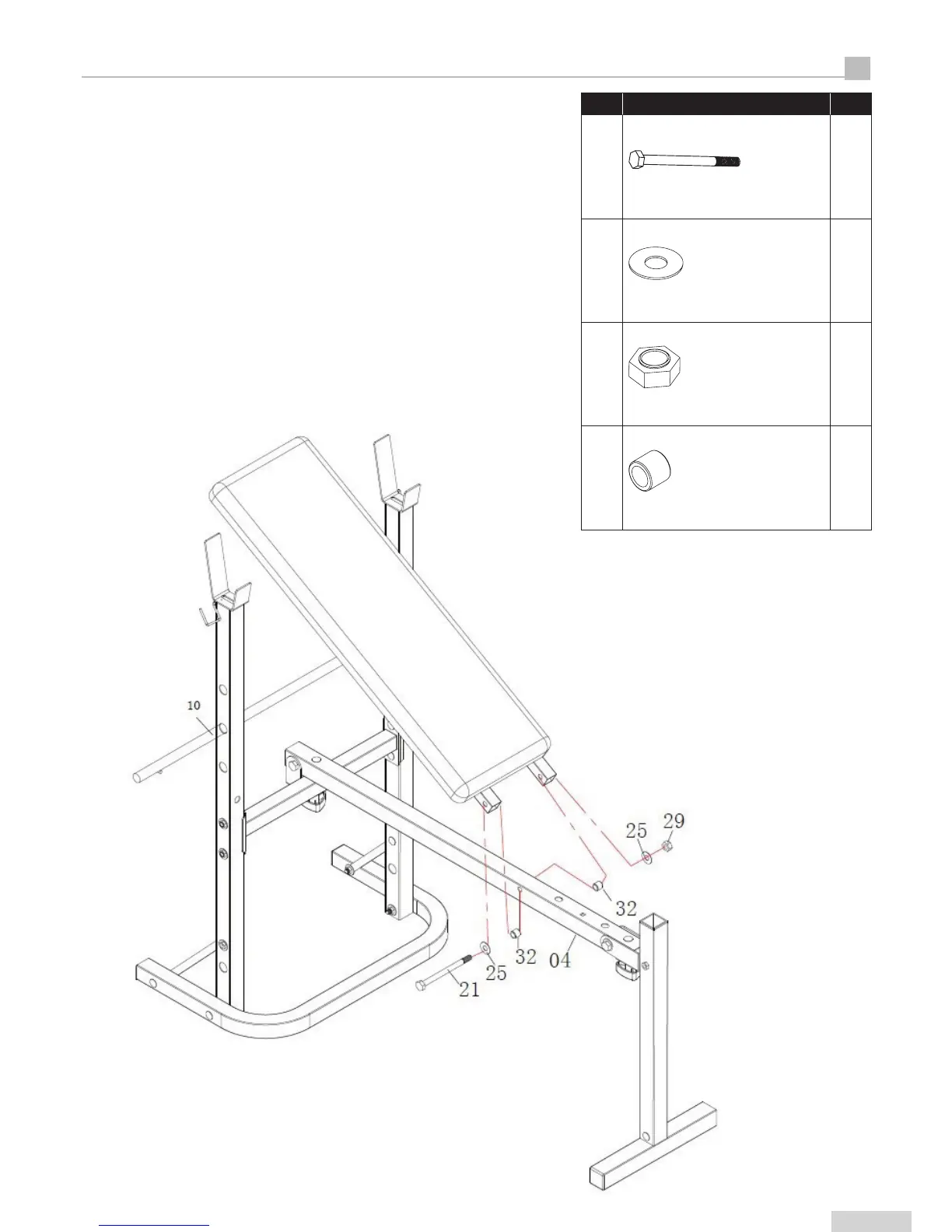

STEP 6
• Connect the assembled Backrest (41) to the Main Frame
(4) using the fittings in the following sequence. An M10 x
130mm Hex Bolt (21), an M10 Flat Washer (25) and an
Backrest Support Bushing (32) on one side. Then an
Backrest Support Bushing (32) on the other side of Main
Frame (4), an M10 Flat Washer (25), and an M10 Nylon
Locknut (29). Tighten securely to remove all free-play but
take care NOT to overtighten.
• Insert Backrest Adjustment Rod (10) to assembled
Upright (2).
11
