1. OVERVIEW
The CP-2272E remote control panel features two small high resolution color LCD displays alongside
an array of 72 full color dynamic LCD buttons, all of which are fully programmable. The two LCD
displays intelligently interact with the panel's buttons and rotary controls, updating automatically as
different operation facilities are selected.
Each of the 72 LCD buttons is capable of displaying a multiple character text string. They can also be
configured with a menu structure which allows quick navigation through the systems. When a menu
button is pressed some or all of the buttons change their function and legend. Their operation is then
defined by the configuration setup for this new menu. The selection of a new menu can also be
configured to change the graphical display of one or both the LCD screens.
The CP-2272E within the Evertz's MAGNUM control system, can interface with automated tielines and
pathfinding, and advanced breakaway routing while still supporting basic routing concepts like levels
and categories. The CP-2272E requires the EQX SERVER/MAGNUM Control System for router
control.
The CP-2272E is a very sophisticated advanced panel that allows you to create a very powerful and
very simple interface to your entire system. It is ideal for applications where a panel design with more
LCD buttons is critical based on number of sources, destinations, levels to control etc. is desired. This
makes it perfect in many different environments including Production areas, Technical Director areas,
"Tape" areas etc. Considering its small foot print the CP-2272E is perfect for use as an advanced
system control panel in truck and mobile applications.

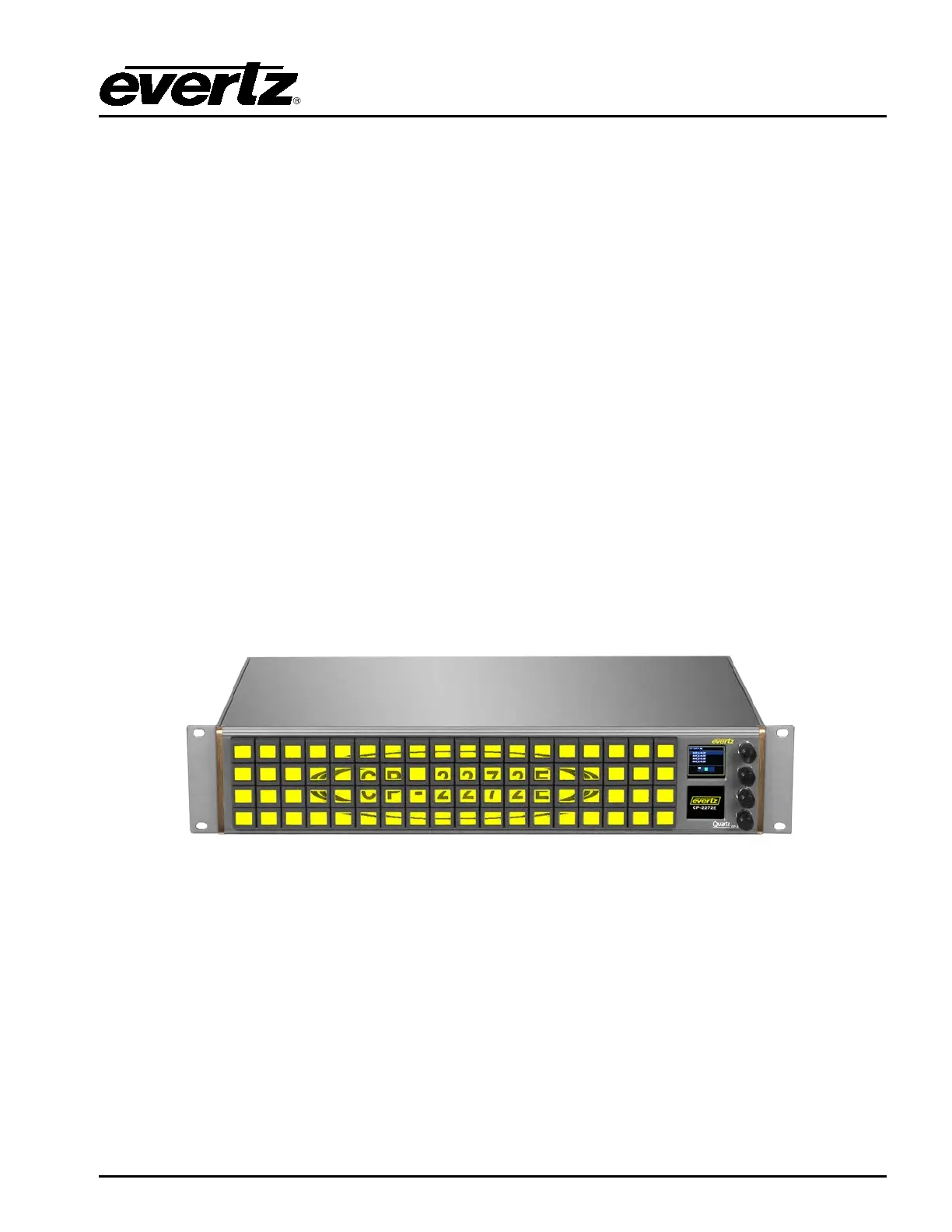

Figure 1-1: CP-2272E Control Panel
Features:
• Flexible feature or menu driven configurations providing quick and simple access
• Two small high quality LCD displays which dynamically react with the panels buttons and rotary
controls
• Easily reconfigured for regularly changing environments
• Advanced control system interface
• Fully programmable buttons
