Multifunction Machine ER2500- THE OPERATOR’S MANUAL
- 18
-
3.1.6 BRAKE PEDAL
Engage it when need to stop the machine.
3.1.7
Electric joystick

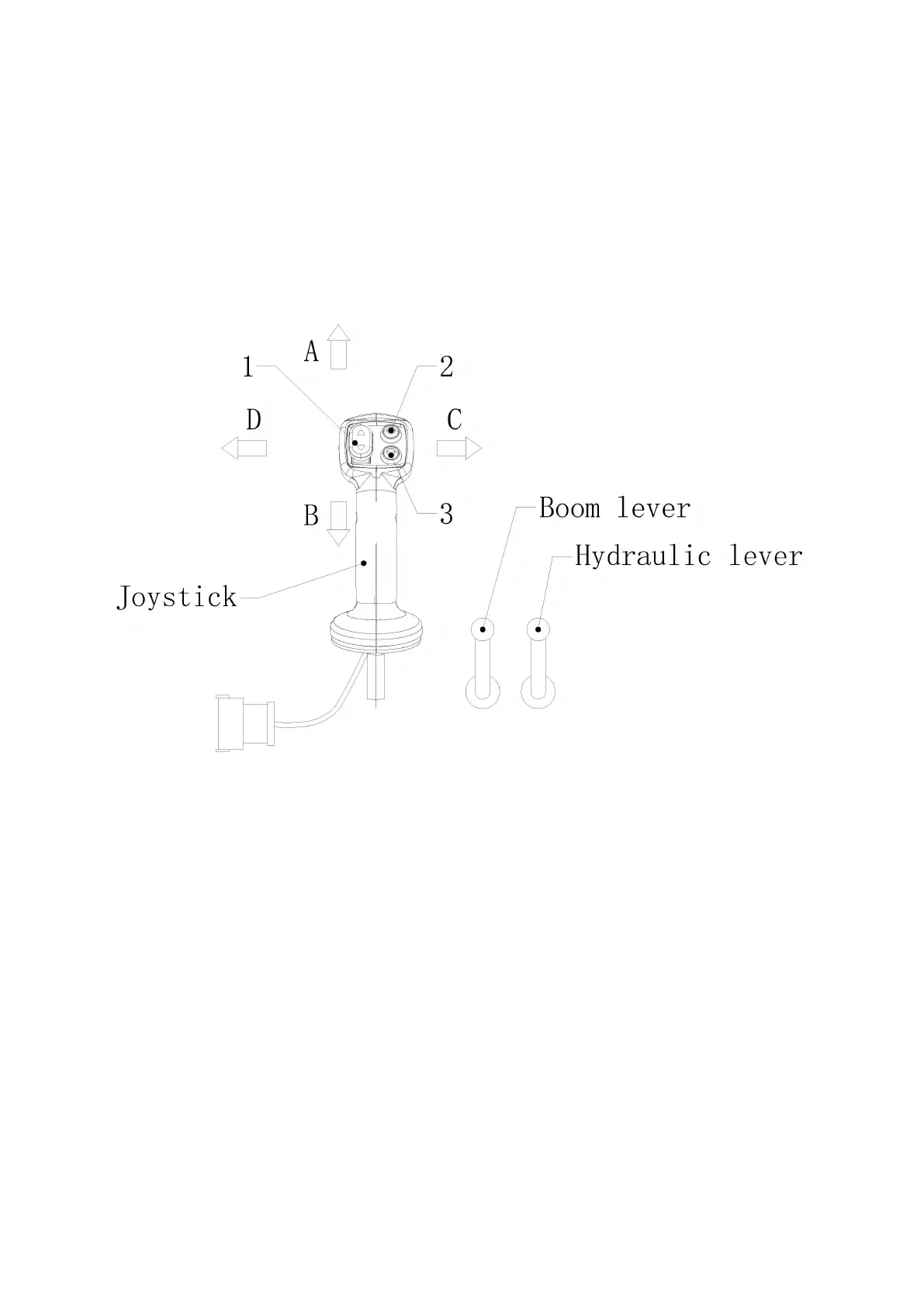

Picture3.1.2
1. F N R switch. Press it forward , the machine goes forwards. Press it rearward, the
machine goes backwards. In middle position, it’s neutral gear.
2. High and low speed button. Press it down, it’s high speed.
3. Power cut-ff selection button. Press it down, the power is cut off when braking.
4. Push the joystick forward to <<A>>, the arm drops.
5. Pushing the joystick back to <<B>>, the arm rises.
6. Pushing the joystick to the right <<C>>, the bucket turns forwards.
7. Pushing the joystick to the left <<D>>, the bucket turns backwards.
3.1.8 Boom telescopic lever.
Push forwards, the boom extended; pull backwards, the boom retracted.
