Section 3
Hardee by EVH
Tethered Joystick
LR50160 Long Reach Mower 10

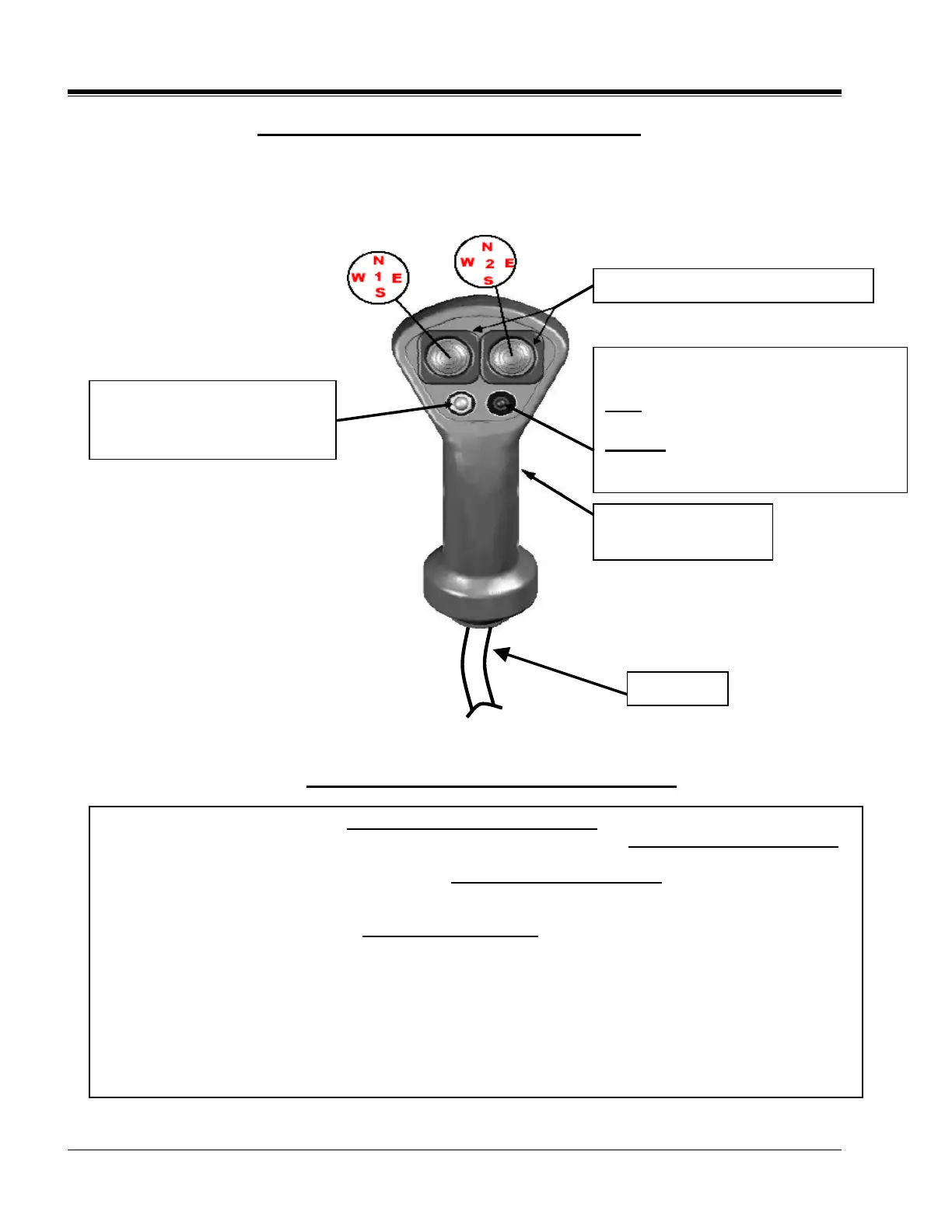

TETHERED GRIP WITH MICRO-JOYSTICKS
1W – DECK DOWN 2W – SWING LEFT
1E – DECK UP 2E – SWING RIGHT
1N – 1
ST
STAGE BOOM UP 2N – 2
ND
STAGE BOOM UP
1S – 1
ST
STAGE BOOM DOWN 2S – 2
ND
STAGE BOOM DOWN
JOYSTICK RECALIBRATION
TWO
(
2
)
MICRO-JOYSTICKS
ONE (1) DUAL COLORED LED
RED: CUTTER HEAD MOTOR IS
ACTIVE
GREEN: SYSTEM IS ACTIVE, BUT
CUTTER HEAD MOTOR IS
OFF
DEAD-MAN BAR
(FAR SIDE)
ONE (1) MOMENTARY
PUSH BUTTON FOR
CUTTER HEAD MOTOR
TETHER
CLEAR CURRENT CALIBRATION
1.0 - POWER UP THE CONTROLLER BOX WITH JOYSTICK CONNECTOR (ENGINE SHOULD BE SHUT OFF).
2.0 - PULL “DEAD-MAN BAR” UNTIL GREEN LED COMES ON, THEN RELEASE “DEAD-MAN BAR”.
3.0 - HOLD DOWN THE CUTTER HEAD SWITCH (
ENGINE SHOULD BE SHUT OFF) WHILE PUSHING THE
LEFT JOYSTICK (1) UP AND THE RIGHT JOYSTICK (2) DOWN FOR 5-SECONDS.
THE GREEN LED WILL BEGIN TO FLASH, INDICATING THE CALIBATION HAS BEEN RESET.
CALIBRATE JOYSTICK
4.0 -WITH JOYSTICK (1): PUSH AND HOLD IN EACH DIRECTION FOR 5 SECONDS EACH. N, S, W AND E
5.0 -WITH JOYSTICK (2): PUSH AND HOLD IN EACH DIRECTION FOR 5 SECONDS EACH. N, S, W AND E
6.0 -AFTER THE CALIBRATION HAS BEEN COMPLETED THE GREEN LED WILL STOP FLASHING.
7.0 -POWER DOWN THE CONTROLLER FOR 10 SECONDS AND THEN POWER UP THE SYSTEM AGAIN.
PULL THE DEAD-MAN BAR FOR 2 SECONDS TO VERIFY THAT CALIBRATION WAS ACCEPTED (THE
LED WILL BE A STEADY GREEN).
N
OTE: THE BOOM AND SWING FUCTIONS WILL NOT WORK UNTIL ALL POSITIONS OF THE JOYSTICKS
ARE CALIBRATED.
