Section 5
Maintenance
Function Valve Port Coil Wire Color (+) Connector No. Handle Position
Swing (Boom) Right 8A1 A - Top White C10 Right (E)
Swing (Boom) Left 8A2 A - Bottom White C9 Left (W)
1st Stage Up 5B1 B - Top White C17 Up (N)
1st Stage Down 5B2 B - Bottom White C16 Down (S)
2nd Stage Down 5C1 C - Top White C12 Down (S)
2nd Stage Up 5C2 C - Bottom White C11 Up (N)
Deck Down 5D1 D - Top White C15 Left (W)
Deck Up 5D2 D - Bottom White C14 Right (E)
Deck Motor 9 O Black C19 Any
Proportional Control 2 L Black C20 Any

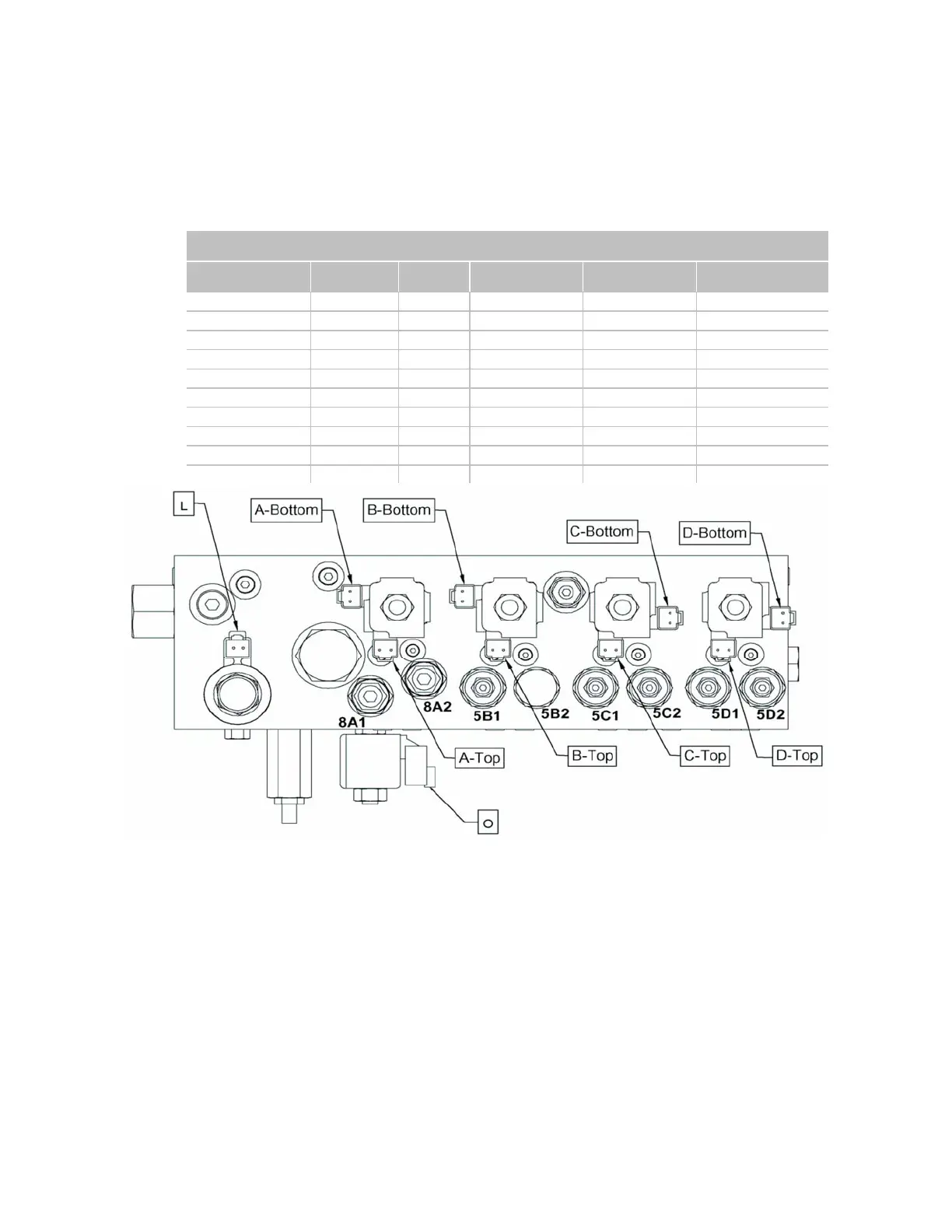

LR50160 Valve / Joystick Wiring Schematic
LR50160 Long Reach Mower 20
