146
ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING
If the pinion does not properly engage the fly-
wheel, the pinion and screw shaft assembly could
be worn, distorted, or dirty. Locate the cause of
binding and correct it before completing the
assembly.
Inspect and replace end cap thrust washer if dis-
torted or worn excessively.

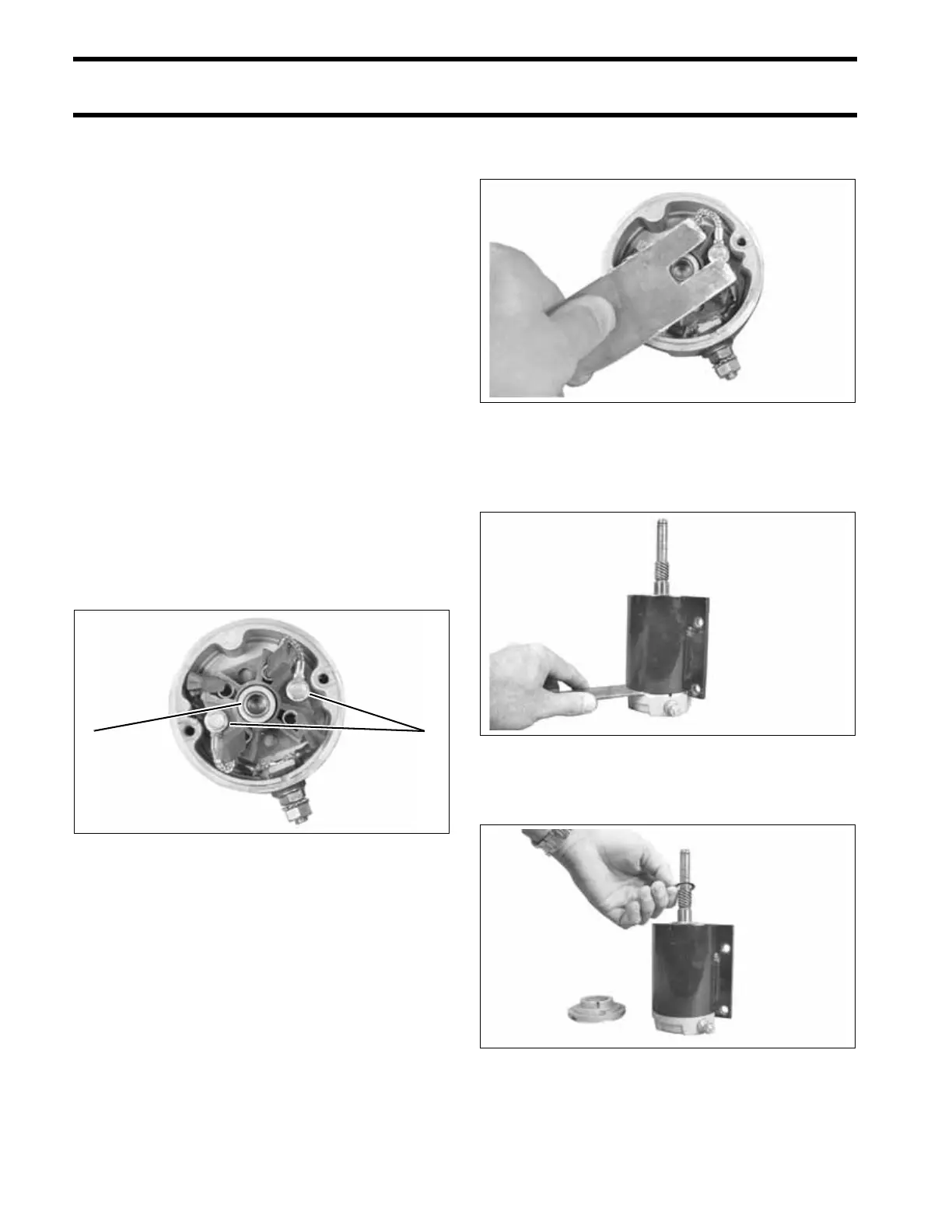

Starter Assembly
IMPORTANT: If removed, apply Locquic Primer
and Screw Lock to the brush card screws before
installing.
Place armature in frame.
Apply Moly Lube to the armature bushing.
Route the brush leads and install the springs and
brushes.
IMPORTANT: Incorrect orientation of the
brushes could damage the starter or cause
reverse rotation.
Compress the brushes and springs with a modi-
fied putty knife.
Align and place brush holder cap firmly on arma-
ture and slide putty knife out, making sure the
brushes are retained properly.
Install thrust washer. Align and place end cap
onto armature shaft.
1. Brush card screws
2. Armature bushing
002300
12
002309
002310
002308
