Evinrude & Johnson E90DSLSCM User Manual

272
GEARCASE
SHIFTER, BEARING AND SEAL SERVICE
SHIFTER, BEARING AND
SEAL SERVICE

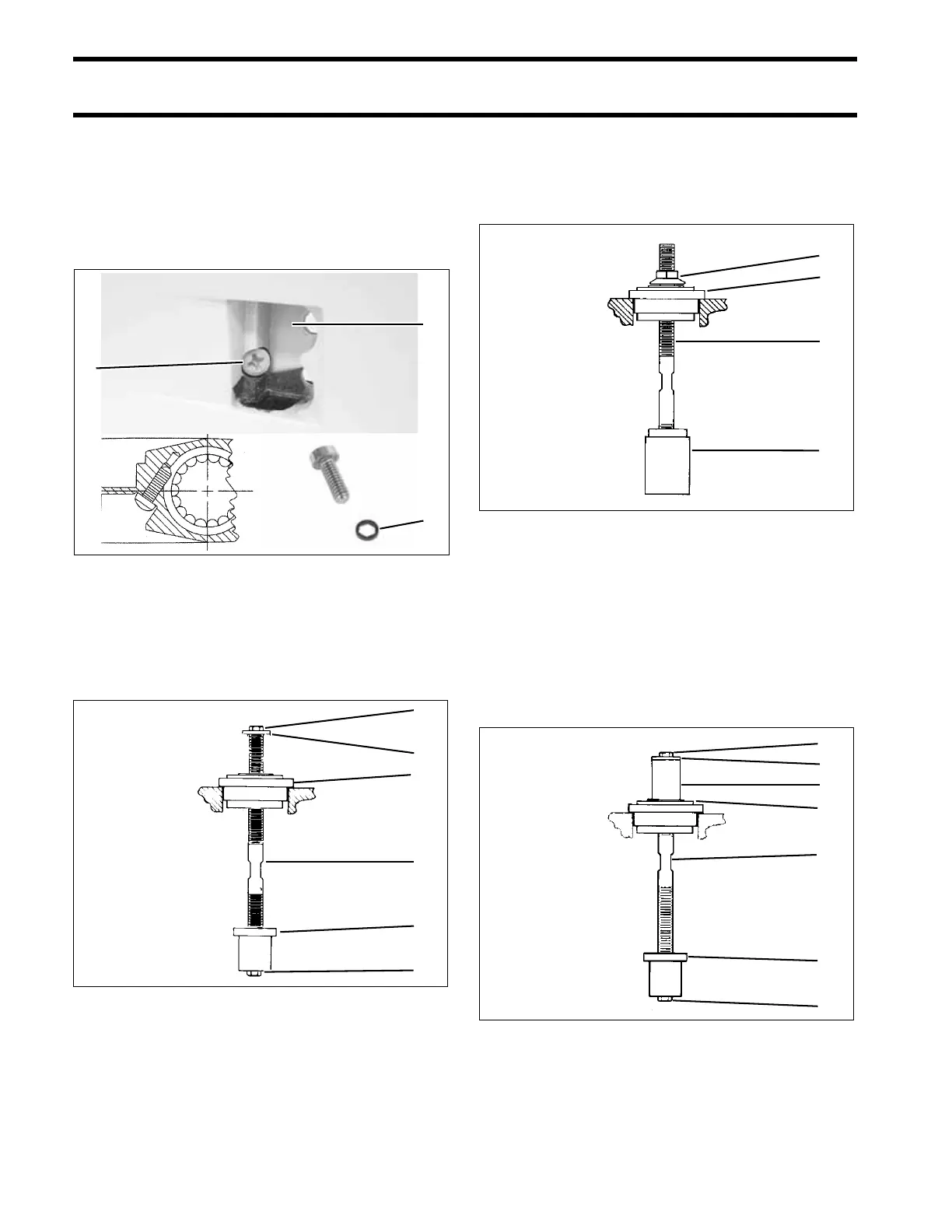

Pinion Bearing Removal
Remove pinion bearing retaining screw.
“S” Type Gearcases
Assemble Pinion Bearing Remover/Installer,
P/N 391257, in the gearcase as follows:
Use a mallet to drive the bearing from the hous-
ing.
“O” Type Gearcases
Use a 7/8 in. wrench to hold the remover in place.
Use a 3/4 in. wrench to turn flange nut clockwise.
Draw the bearing up from the housing.
Pinion Bearing Installation
Assemble the following components of Pinion
Bearing Remover and Installer, P/N 391257, as
shown:
“S” Type Gearcases
1. Pinion bearing retaining screw
2. Water screen pocket
3. Seal
DSC02370
DRC7416
DSC02313
1. 1/4-20 x 1/2 in. Hex Head Screw
2. 1 in. O.D. Flat Washer
3. Plate, P/N 391260
4. Rod, P/N 326582
5. Installer/Remover, P/N 326574
6. 1/4-20 x 1 1/4 in. Hex Head Screw
824163
2
3
1
1
2
3
4
5
6
1. Flange nut, P/N 326586
2. Plate, P/N 391260
3. Rod, P/N 326582
4. Remover, P/N 326579
DR3419
1. 1/4-20 X 1/2 in. Hex head screw
2. 1 in. O.D. Flat washer
3. Spacer, P/N 341437
4. Plate, P/N 391260
5. Rod, P/N 326582
6. Installer/Remover, P/N 326574
7. 1/4-20 X 1 1/4 in. Hex head screw
824182
1
2
3
4
1
2
3
4
5
6
7
