147
ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING
7

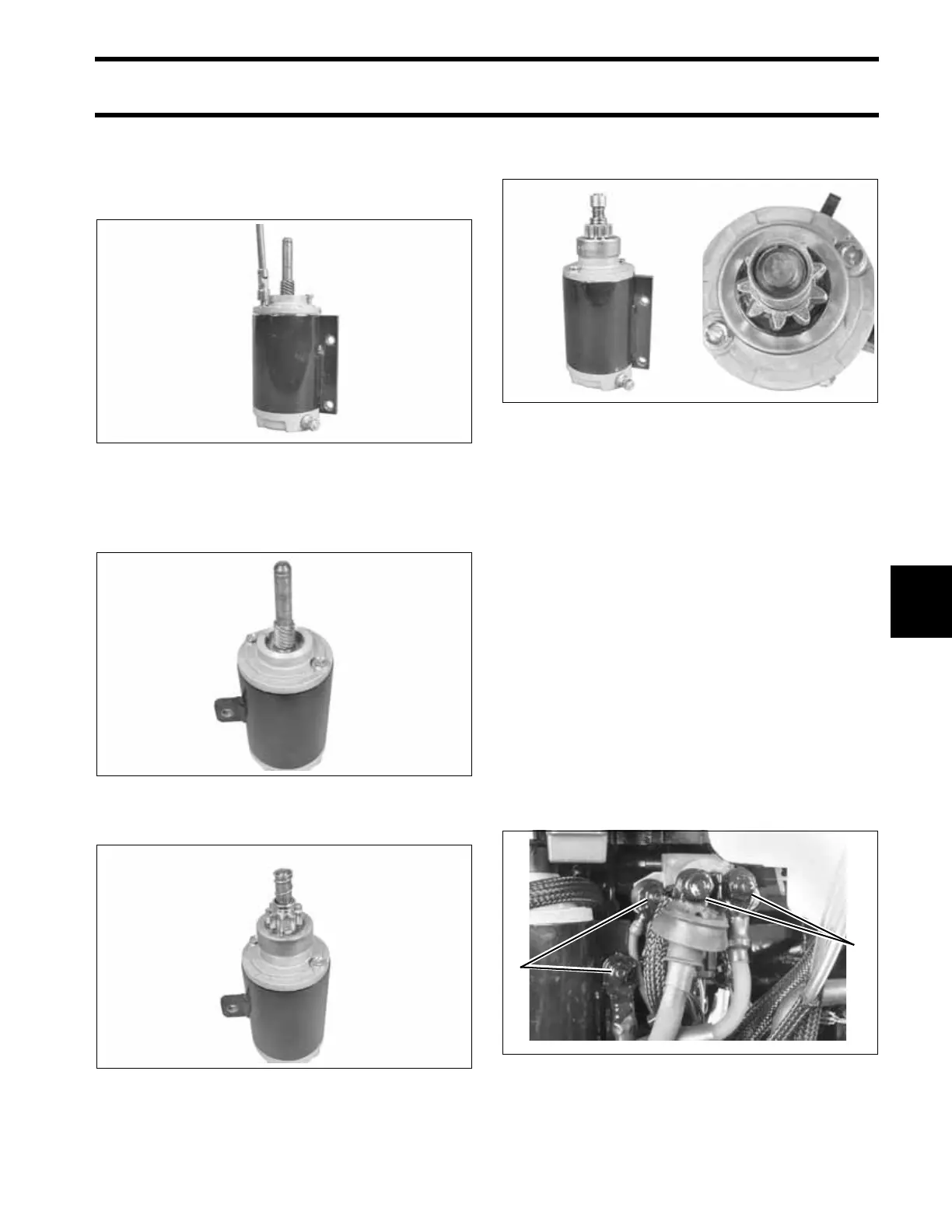

Apply Locquic Primer and Screw Lock to the
threaded portion, and install the two thru-bolts.
Tighten bolts to a torque of 100 to 110 in. lbs. (11
to 12.5 N·m).
Lubricate the splines (helix) of starter pinion shaft
with Starter Bendix Lube. DO NOT use liquid or
aerosol spray lubricants.
Install pinion, spacer and spring.
Install spacer and retaining clip. Spacer must be
raised to cover clip completely.
To test the assembly and operation of the starter,
refer to No Load Current Draw Test on p. 132.
Starter Installation
Apply Triple-Guard grease to the threads of the
two starter screws, the double-ended stud, and
also to the washers.
Position the starter and install the screws and
washers. Tighten screws to a torque of 168 to 192
in. lbs. (19 to 21 N·m).
Attach starter positive (+) cable to post with lock
washer and nut; tighten securely.
Install the battery negative cable (–) to the double-
ended stud.
Coat connections with Black Neoprene Dip.
002306
002307
002305
002311
002297
1. Black Neoprene Dip 002292
1
1
