255
MIDSECTION
STERN BRACKET
12
Tighten screw to a torque of 60 to 84 in. lbs. (7 to
9.54 N·m).
Place reverse lock lever rod through hole at top of
starboard reverse lock lever. Install the starboard
reverse lock link on the swivel bracket. Apply blue
Nut Lock to screw threads and install washer and
screw. Tighten screw to a torque of 60 to 84 in.
lbs. (7 to 9.5 N·m).
Install reverse lock release collar and tighten set
screw.
Install locking lever, pins and new cotter pins.
Install reverse lock springs on locking lever and
reverse lock spring screws.

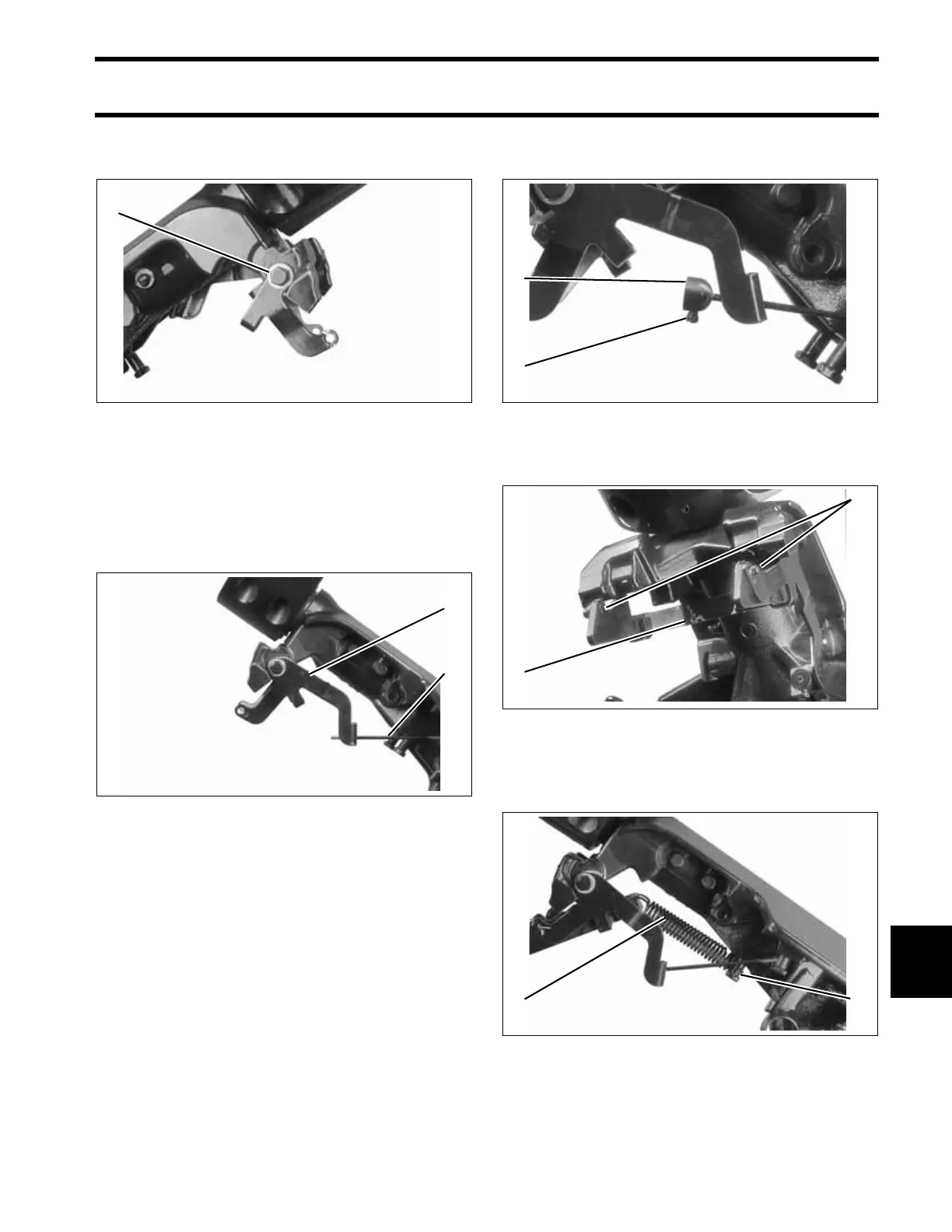

1. Port reverse lock link 006695
1. Starboard reverse lock link
2. Reverse lock lever rod
006696
1
1
2
1. Reverse lock release collar
2. Set screw
006697
1. Locking lever
2. Pins
006699
1. Reverse lock springs
2. Reverse lock spring screws
006700
1
2
2
1
21
