TRIM AND TILT
TRIM AND TILT SERVICE
14

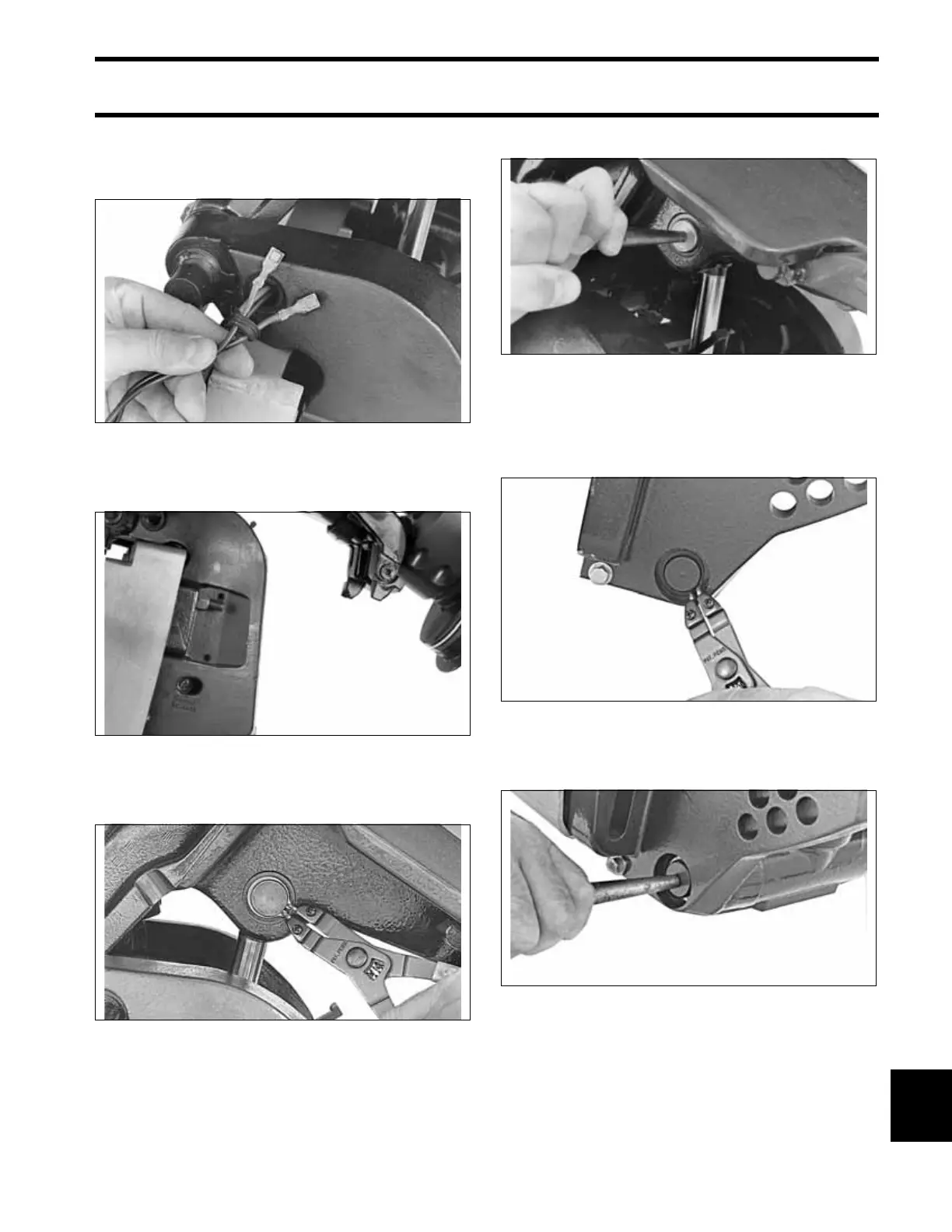

Separate the trim/tilt unit wires in the braided tube
to permit removal through the hole in the stern
bracket.
Unscrew the manual release valve, raise the unit,
and lock it in place with the tilt support.
Remove the external snap rings from the upper
pin.
Use a punch to remove the upper pin.
Retract the tilt cylinder rod.
Remove the external snap rings from the lower
pin.
Use a punch to remove the lower pin and remove
the trim/tilt unit from the stern brackets.
25078
27381
25064
25065
25077
25076
