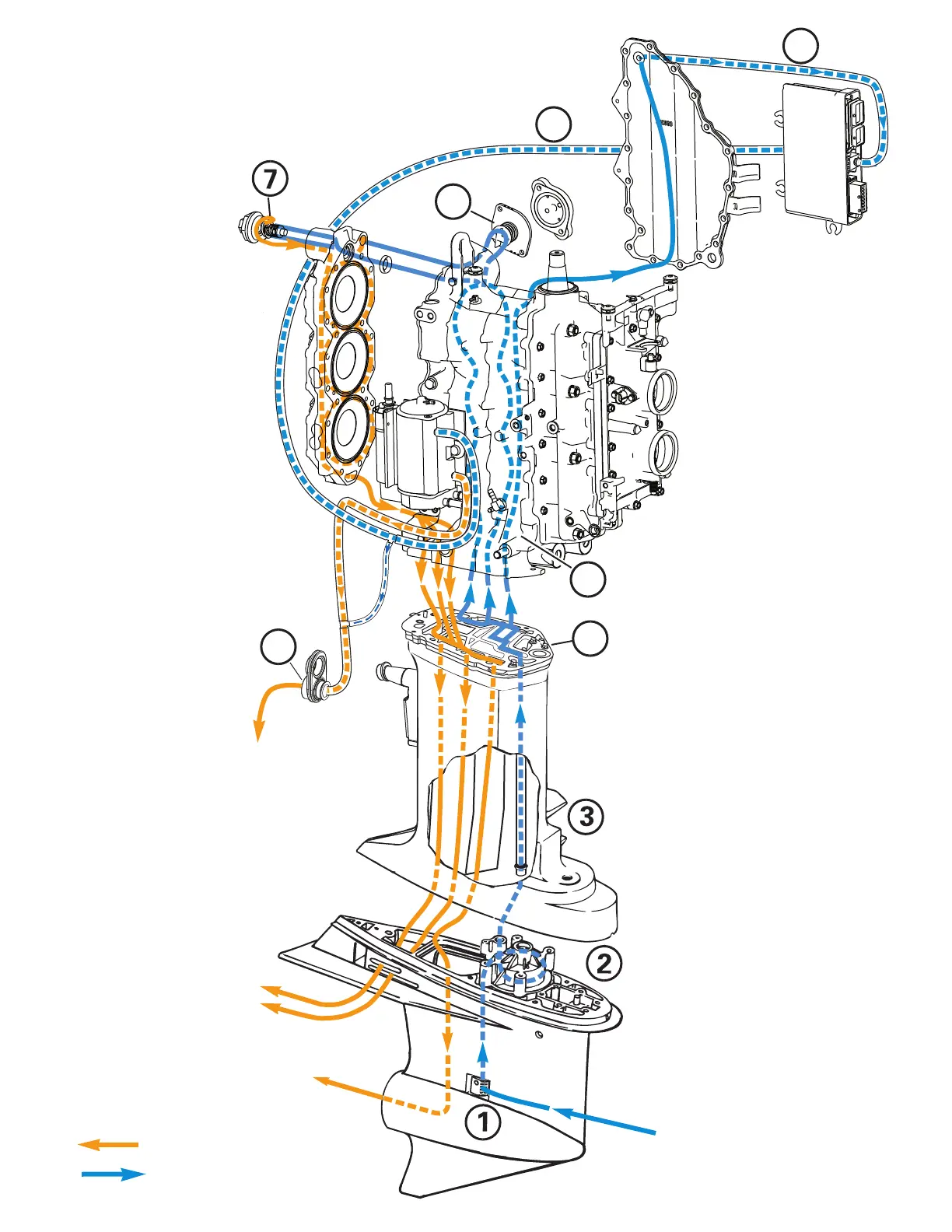

Hose Routing and Water Flow Diagram

75 – 90 HP EVINRUDE E-TEC

Outgoing water (warm/hot)

Incoming water (cool)

1. Intake water screens

2. Water pump

3. Water tube

4. Adaptor housing

5. Cylinder block

6. Pressure valve

7. Thermostat

8. Water supply to EMM

9. Water supply, EMM to

vapor separator

10. Overboard indicator,

outgoing water from

vapor separator

001818
