179
OILING SYSTEM
OIL COMPONENT SERVICING
8
Oil Injection Pump
Removal
Disconnect the battery cables at the battery.
Remove engine cover and air silencer.
Remove the oil supply hose from the fitting (inlet)
of the oil injection pump.
Disconnect the electrical connector.
IMPORTANT: Note oil distribution hose rout-
ings before proceeding with disassembly. Center
hose from primary oil manifold connects to oil to
inlet of rear oil manifold.
Remove oil distribution hoses from the crankcase
fittings.
Remove oil injection pump clamp screw.
Remove the oil injection pump assembly.
IMPORTANT: The oil injection pump and mani-
fold is an assembly and cannot be serviced as
individual components.
Installation
Route oil distribution hoses from the oil distribu-
tion manifold to the crankcase oil delivery fittings
as they were before removal. Refer to OIL SUP-
PLY DIAGRAMS on p. 158.
Connect oil hoses to crankcase fittings and fasten
with tie straps.
Connect oil hose to rear oil manifold.

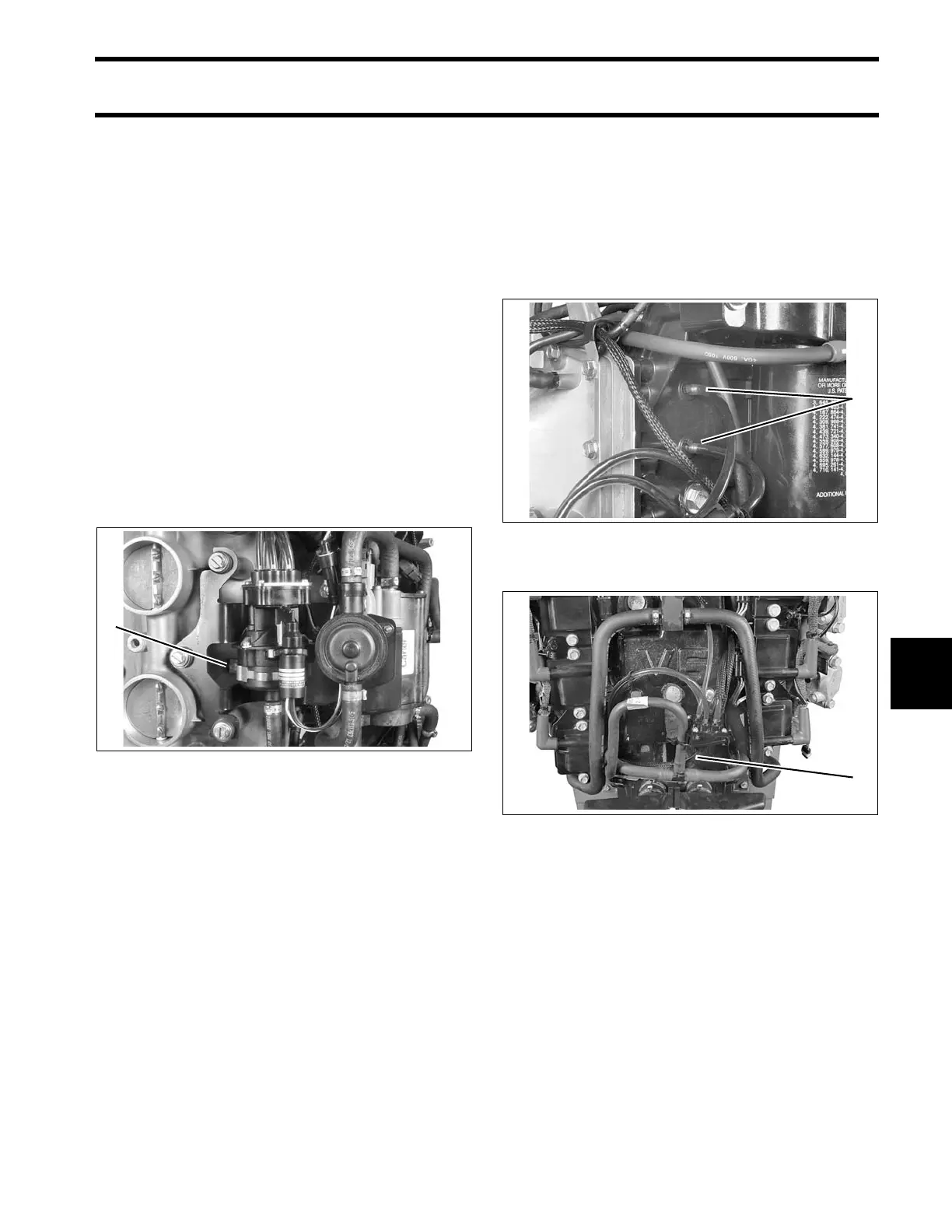

1. Clamp screw 004220
1. Crankcase fitting 004224
1. Oil to rear manifold 007148
