Evinrude E-TEC 250 - Exhaust Housing Disassembly - 3.4 L Models

267
MIDSECTION
EXHAUST HOUSING SERVICE
12

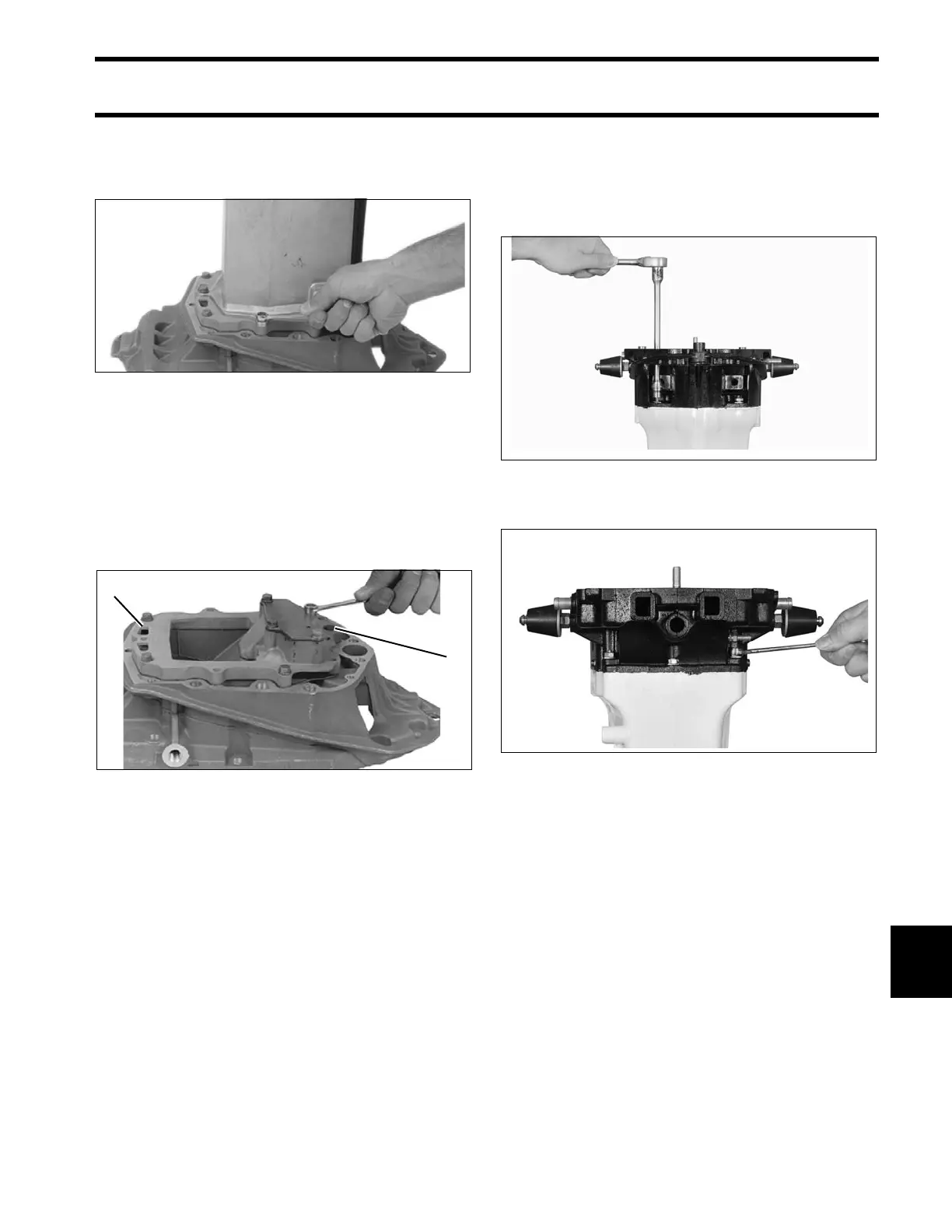

Mark the water tube for correct reassembly loca-
tion. Remove six inner exhaust housing screws.
Remove the inner exhaust housing.
Remove the water tube and grommet from the
inner exhaust housing. Discard the grommet.
Loosen retaining screws and remove the cover
from water plate.
Loosen retaining screws and remove water plate
from the adapter.
Exhaust Housing Disassembly –
3.4 L models
Remove two front adapter to outer exhaust hous-
ing screws.
Remove three nuts at rear of the adapter.
.
13638
1. Cover
2. Water plate
13641
1
2
006980
006978
