316
GEARCASE – STANDARD ROTATION
GEARCASE ASSEMBLY
Apply Ultra Lock to threads and install two retain-
ing screws. Tighten screws to a torque of 18 to 20
ft. lbs. (24 to 27 N·m).
Final Assembly and Adjustment
To complete gearcase assembly, refer to:
• GEARCASE LEAK TEST on p. 286
• WATER PUMP SERVICE on p. 290
• SHIFT ROD ADJUSTMENT on p. 293
• GEARCASE REMOVAL AND INSTALLATION
on p. 287
• Gearcase Lubricant on p. 37
• Propeller Hardware Installation on p. 285
• Trim Tab Adjustment on p. 30.
During break-in period of a reassembled gear-
case, change the gearcase lubricant between 10
to 20 hours of operation.

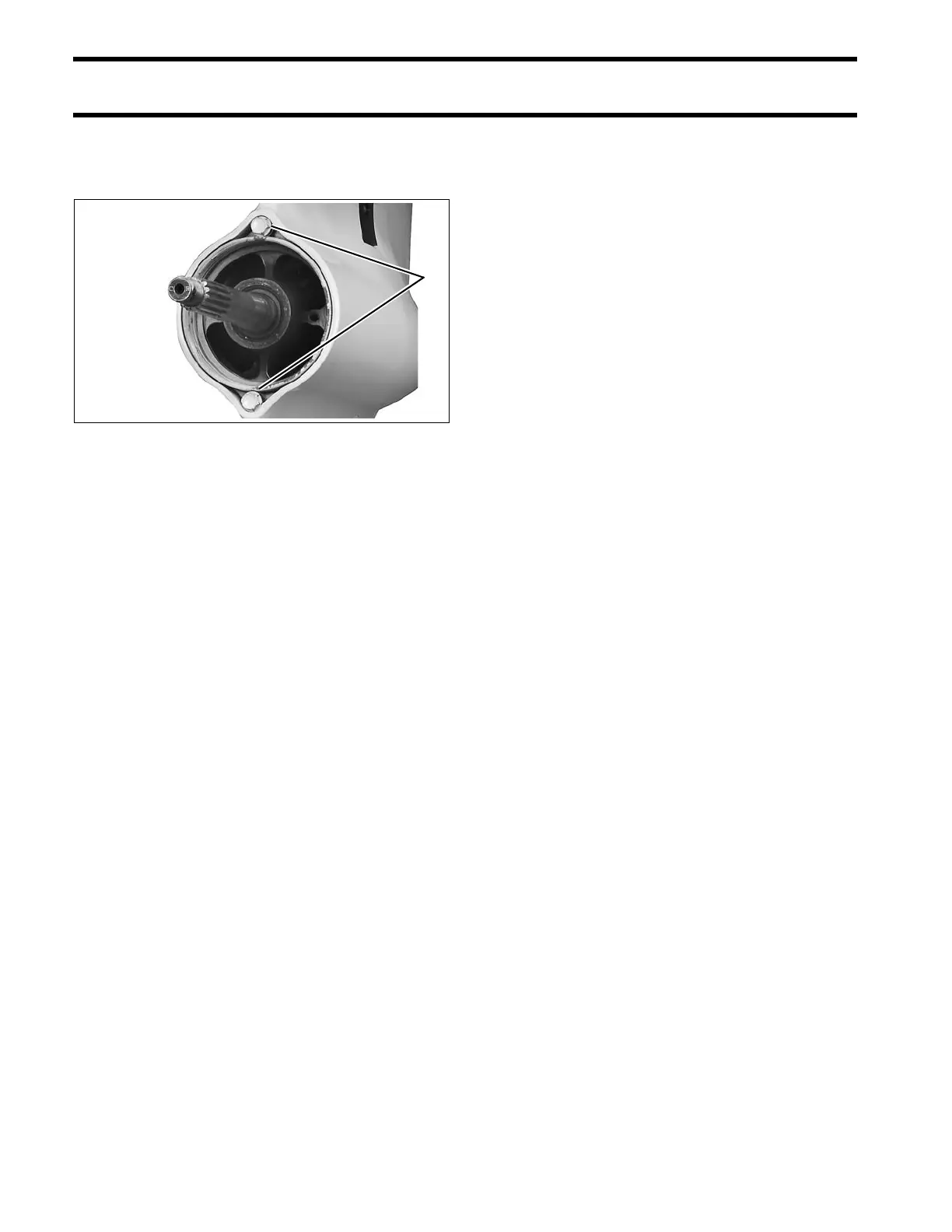

1. Retainer screws 006835
