Remove the two trim rod rollers from the swivel
bracket.
Remove the tilt support and bushing from the
swivel bracket and inspect the detent roller and
spring.
Stern Bracket Assembly
IMPORTANT: Before proceeding, make sure all
components have been thoroughly cleaned.
Replace any seals that have been removed.
Inspect all thrust washers and bushings for evi-
dence of deterioration.
Install the detent roller and spring and the tilt sup-
port with bushing in the swivel bracket. Tighten
bushing to a torque of 28 to 30 ft. lbs. (38 to 41
N·m).

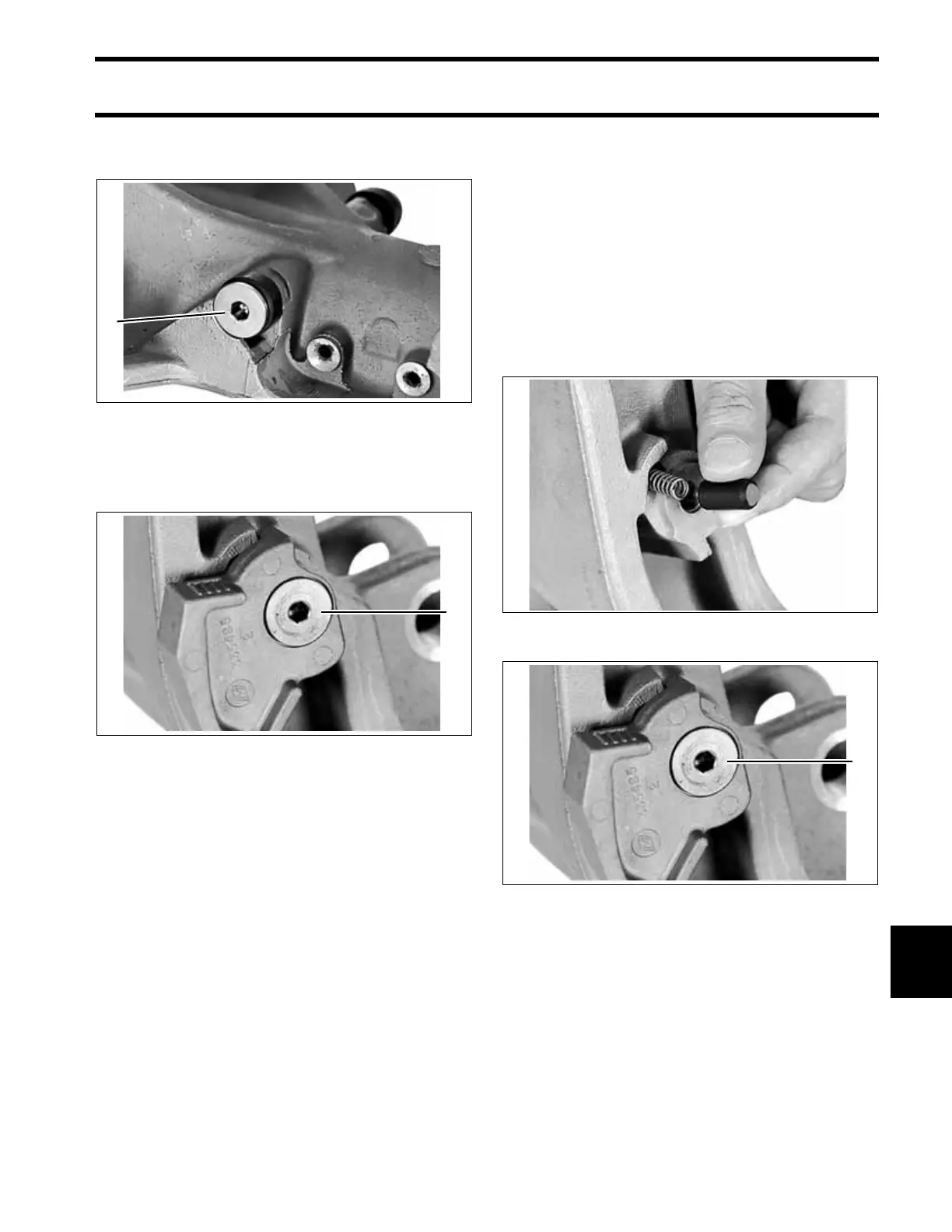

1. Trim rod roller 30754
1. Tilt support bushing 30753
1
1
30752
1. Tilt support bushing 30753
1
