335
GEARCASE – STANDARD ROTATION
GEARCASE ASSEMBLY
13

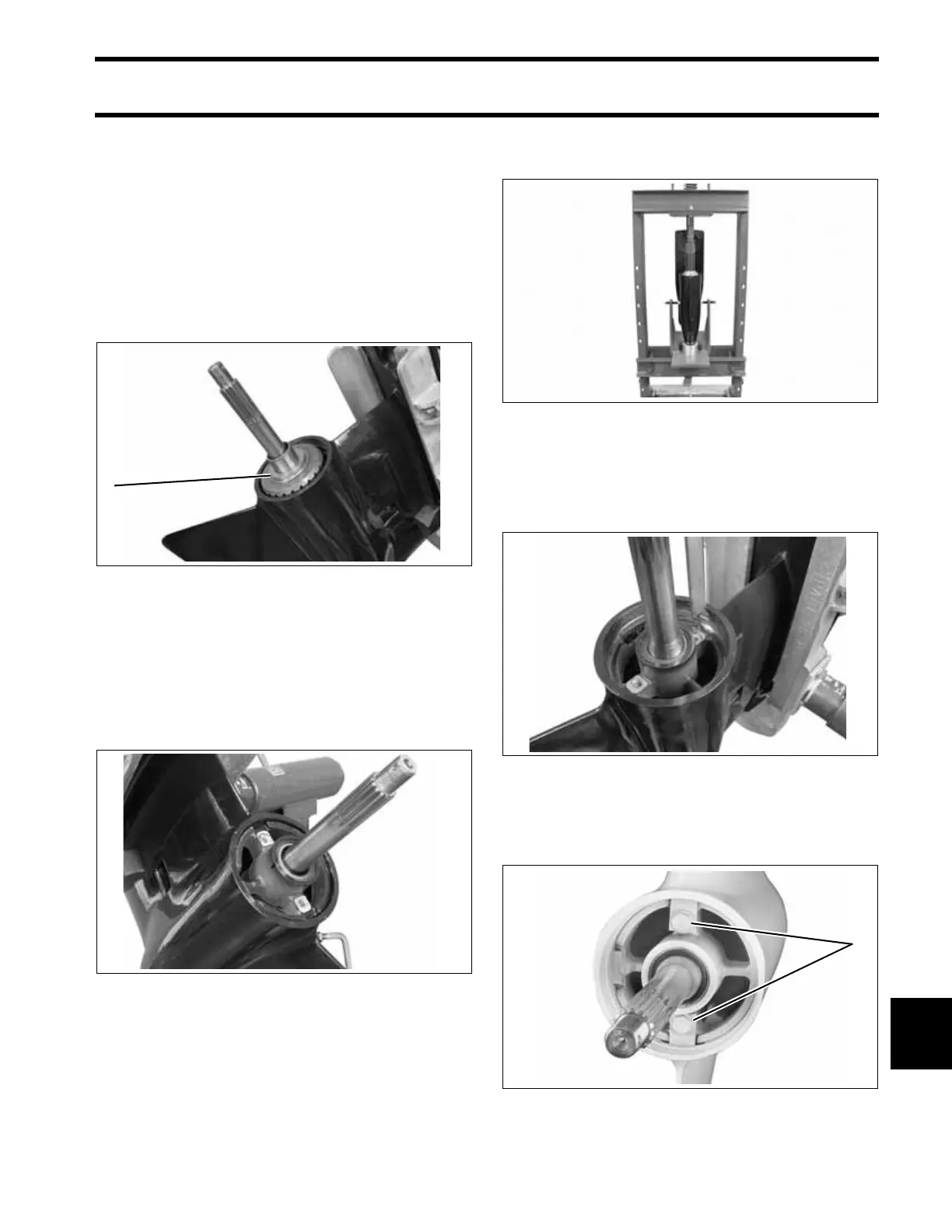

Propeller Shaft Bearing Housing
and Gear Installation – “L2” Type
IMPORTANT: The propeller shaft bearing hous-
ing on the “L2” type gearcases is PRESSED into
the gearcase housing.
Oil and install thrust bearing and thrust washer on
hub of reverse gear. Slide the gear assembly onto
the propeller shaft until it engages the pinion gear.
Lightly apply Triple Guard Grease to a new bear-
ing housing O-ring. Install O-ring in groove in the
housing. Grease the machined side surfaces of
bearing housing.
Install housing into gearcase. Align screw holes
with retainer slots in gearcase.
Use Installer Handle, P/N 345822, Propeller Shaft
Bearing Housing Installer, P/N 354058, Gearcase
Fixture, P/N 354059 and an appropriate floor
press (10 ton or greater) to install housing into
gearcase. Align and level gearcase assembly in
fixture as shown. Secure fixture to floor press.
Housing must be completely seated in gearcase
to install retainer tabs. Depth to retainer tab sur-
face on bearing housing is approximately
1 in. (25.4 mm).
Install two retainers, washers and screws. Apply
Ultra Lock to threads and tighten screws to a
torque of 18 to 20 ft. lbs. (24 to 27 N·m).
1. Thrust bearing and thrust washer 006843
1. 006836
1
006844
006845
1. Retainer tab screws 001989
1
To Next Page
