345

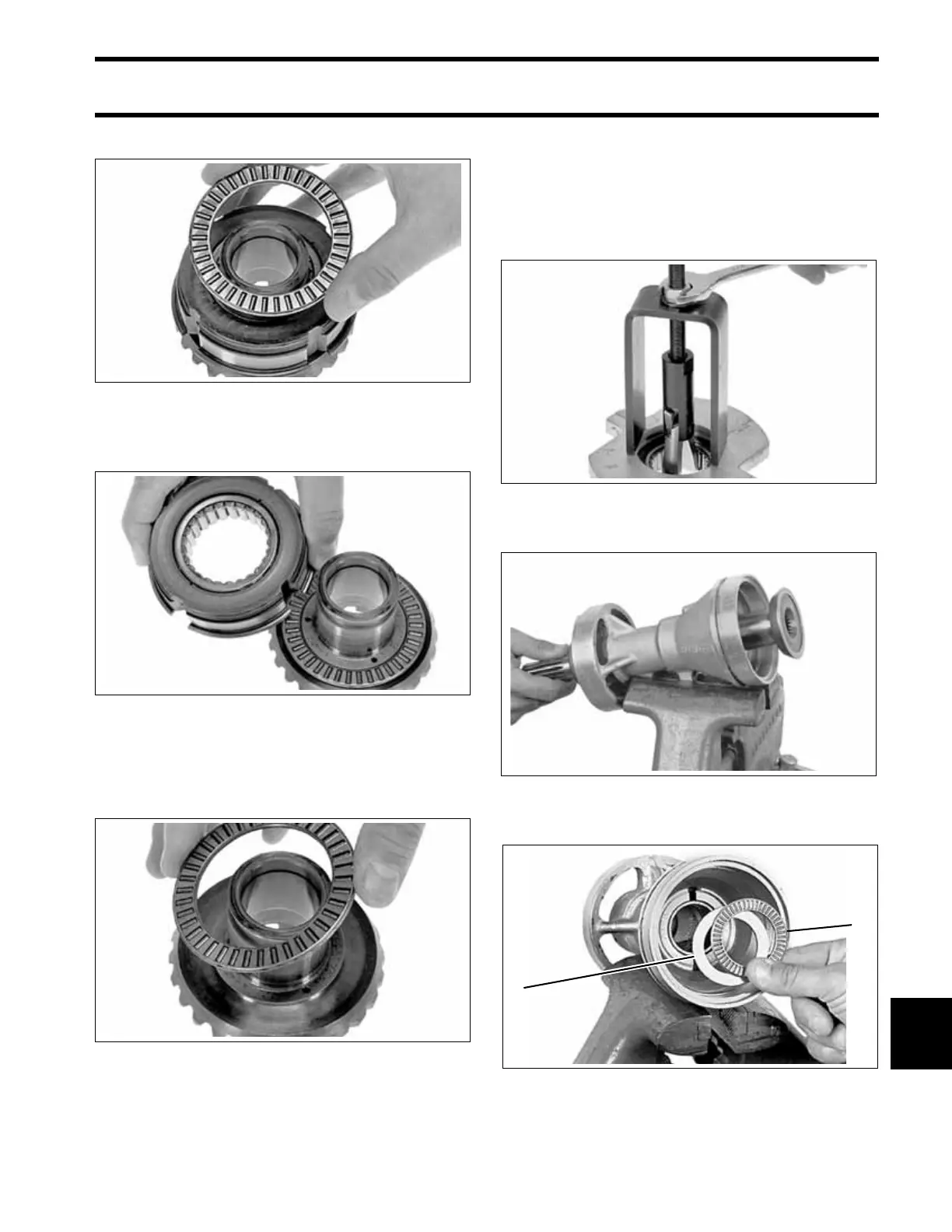

GEARCASE – COUNTER ROTATION
SHIFTER, BEARING AND SEAL SERVICING
13
Remove the thrust bearing.
Remove the bearing housing from the forward
gear.
Remove the thrust bearing from the forward gear.
Inspect the forward gear for excessive wear or
damage.
Remove the forward gear bearing only if it needs
to be replaced. If removal of the bearing is neces-
sary, use Large Puller Jaws, P/N 432129, and
Puller Bridge, P/N 432127, with an appropriate
base. Leave the rollers in to allow for good contact
with the puller jaws.
Push propeller shaft out of the bearing housing.
Remove the thrust washer and thrust bearing.
31963
31961
31960
31958
13479
1. Thrust washer
2. Thrust bearing
13593
2
1
