Evolis Primacy User Manual

60
ä

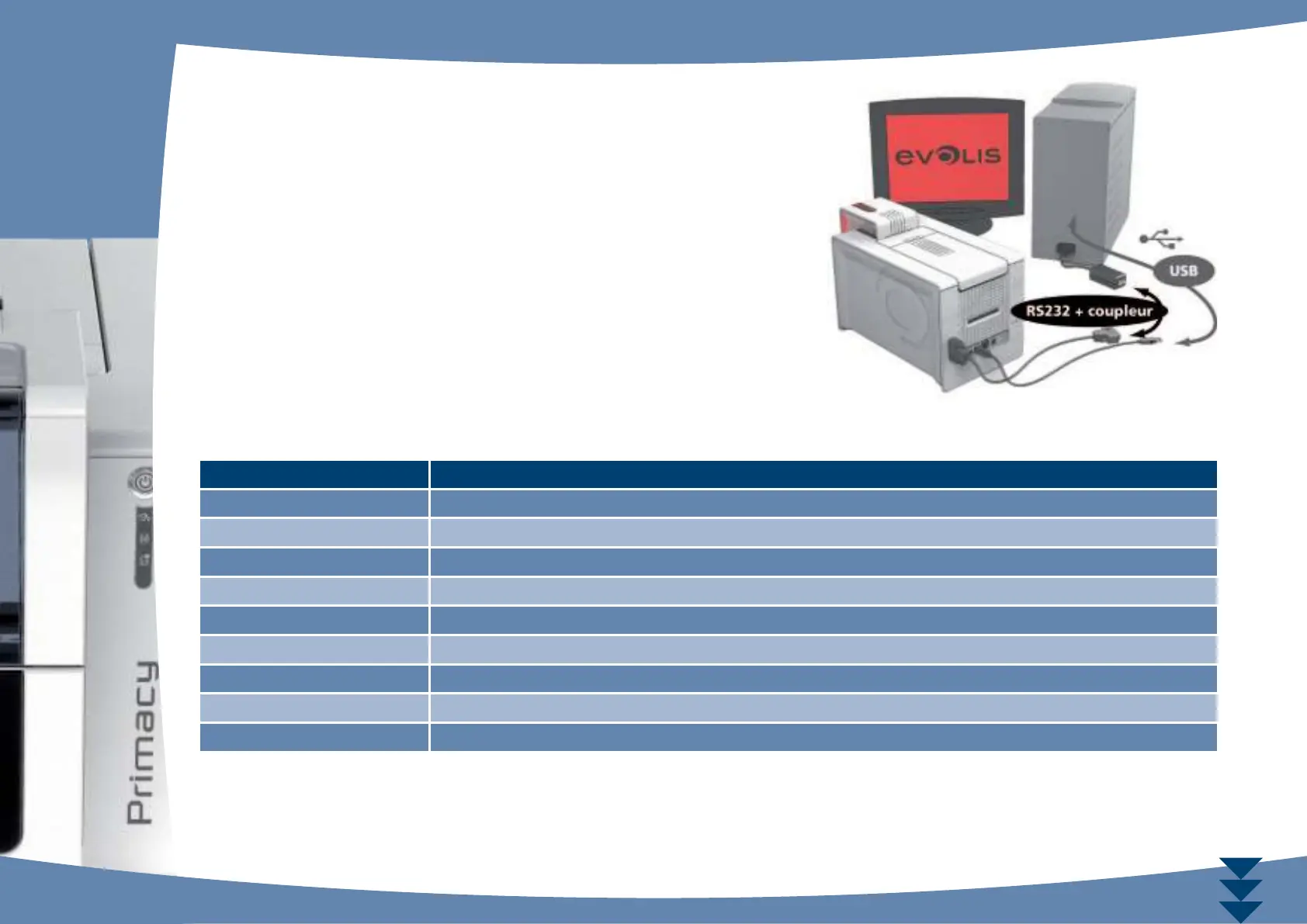

Co nta c t sta tio n inte rfa c e
Printers tted only with a smartcard contact station (without integrated encoder)
are tted with a female DB-9 connector which is found on the back of a printer.
This c o nne c to r, d ire c tly c o nne c te d to the c o nta c t sta tio n insid e the p rinte r, is a lso
c o nne c te d to a n e xte rna l c o up le r to p ro g ra m the c hip .
A se q ue nc e o f c o mma nd s must b e se nt via the p rinte r’ s inte rfa c e to inse rt a c a rd into the p rinte r the n p o sitio n it und e r the sta tio n a nd
e sta b lish c o nta c t.
DB- 9 c o nne c to r pins Sm a rtc a rd c o nta c t points
1 C 1 (V c .c .)
2 C 2 (re se t)
3 C 3 (c lo c k)
4 C4 (reserved)
5 C 5 (g ro und )
6 C 6 (Vp p )
7 C 7 (I/ O )
8 C 8 (re se rve d )
9 Ca rd p re se nt sig na l
C

Evolis Primacy Specifications

General

Resolution	300 dpi
Card Capacity Input	100 cards
Weight	4.02 kg (8.86 lbs)
Printing Technology	Dye-sublimation
Print Speed (YMCKO)	Up to 225 cards/hour
Card Capacity Output	100 cards
Card Thickness	0.25 to 1.25 mm (10 to 50 mil)
Card Types	PVC cards, Composite PVC cards, PET cards, ABS cards, Special varnished cards
Connectivity	USB, Ethernet
Encoding Options	Magnetic stripe, Contact and contactless smart card encoders
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	247 x 205 x 381 mm (9.72 x 8.07 x 14.99 in)
Power Supply	100-240 V, 50-60 Hz
