G2 DISPLAY BOARD – IP-POWERDSP-G2
IP-POWERDSP-G2MAN Rev 1 Page 11 of 25

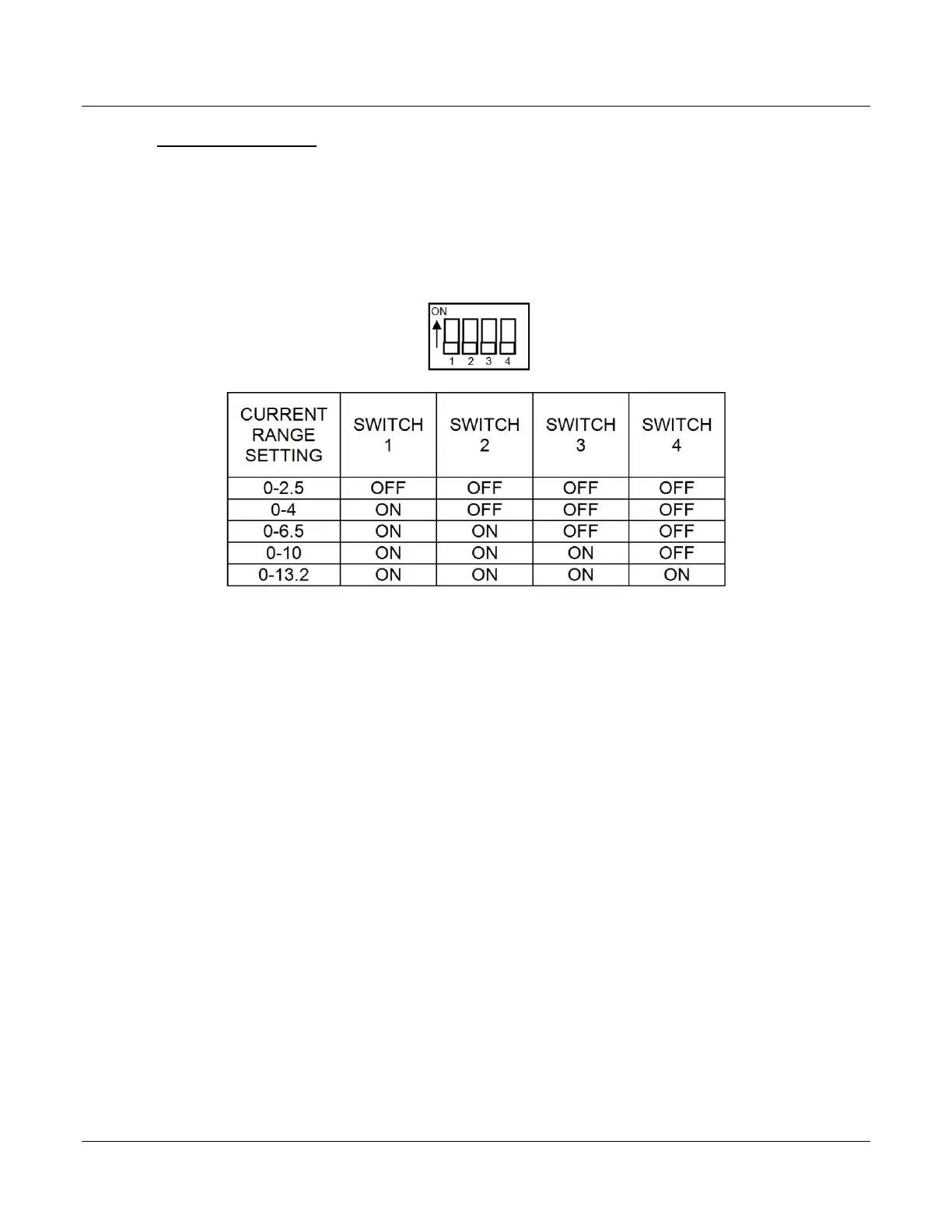

The G2 display will detect the selected current range upon startup and will limit the DC output
current setpoint (A DC out) to this range.
2.4.2 Unit ID Selection
A unique identification number/letter needs to be assigned to each power controller that is
connected to a G2 display so they can be recognized without conflicts. This is done via rotary
switch SW2 of the G2 Power Controller. Each SW2 position corresponds to a channel or
module (MD) identification number on the display board, as shown in Table 1.
Table 1: Unit ID Selection
SW2 Position G2 Display Channel
0 1
1 2
2 3
3 4
4 5
5 6
6 7
7 8
8 9
9 10
A 11
B 12
C 13
D 14
E 15
F 16
If two or more power controllers are mistakenly set to the same SW2 position, the G2 display
will show “ADDRESS CONFLICT” for that channel.
