4.0 Structure and function
4.4 Construction group
description
Motor
E design
ThemotorisabrushedDCmotor,12,24or48VDC.The
motor’s shaft is connected to a helical gear. The linear speed
depends on the load. The motor unit is surrounded by metal
housingandequippedbyaEMClter.Themetalhousing
cannot be opened.
S design
ThemotorisabrushedDCmotor,12,or24VDC.Themo-
tor’s shaft is connected to a helical gear. The line-ar speed is
controlled by smart PCBA but the max. speed depends on
the load. The motor unit is sur-rounded by metal housing
andequippedbyaEMClter.Themetalhousingcannotbe
opened.
Gear unit
E design
The helical gear is directly powered by the motor shaft. Gear
unit is connected to the over load clutch that moves the drive
screw system.
S design
The helical gear is directly powered by the motor shaft. Gear
unit is connected to the drive screw system.
Integrated control unit (S design only)
The control unit consists of PCB with H-bridge to control the
motor,gearswithnoniusprincipleandhallsensorwhichac-
quirestheabsolutepositionofactua-tor,temperaturesensor
and micro controller that con-trol and monitor the function
including I/O and CAN bus communication and diagnostic.
Linear unit
The linear unit is surrounded and protected by the guiding
tube. The linear unit of the CAHB-21E or CAHB-22E is
equipped by brake. The push tube of the actuator is con-
nected to the nut of the drive screw unit and aligned by the
guiding tube.
4.5 Connection

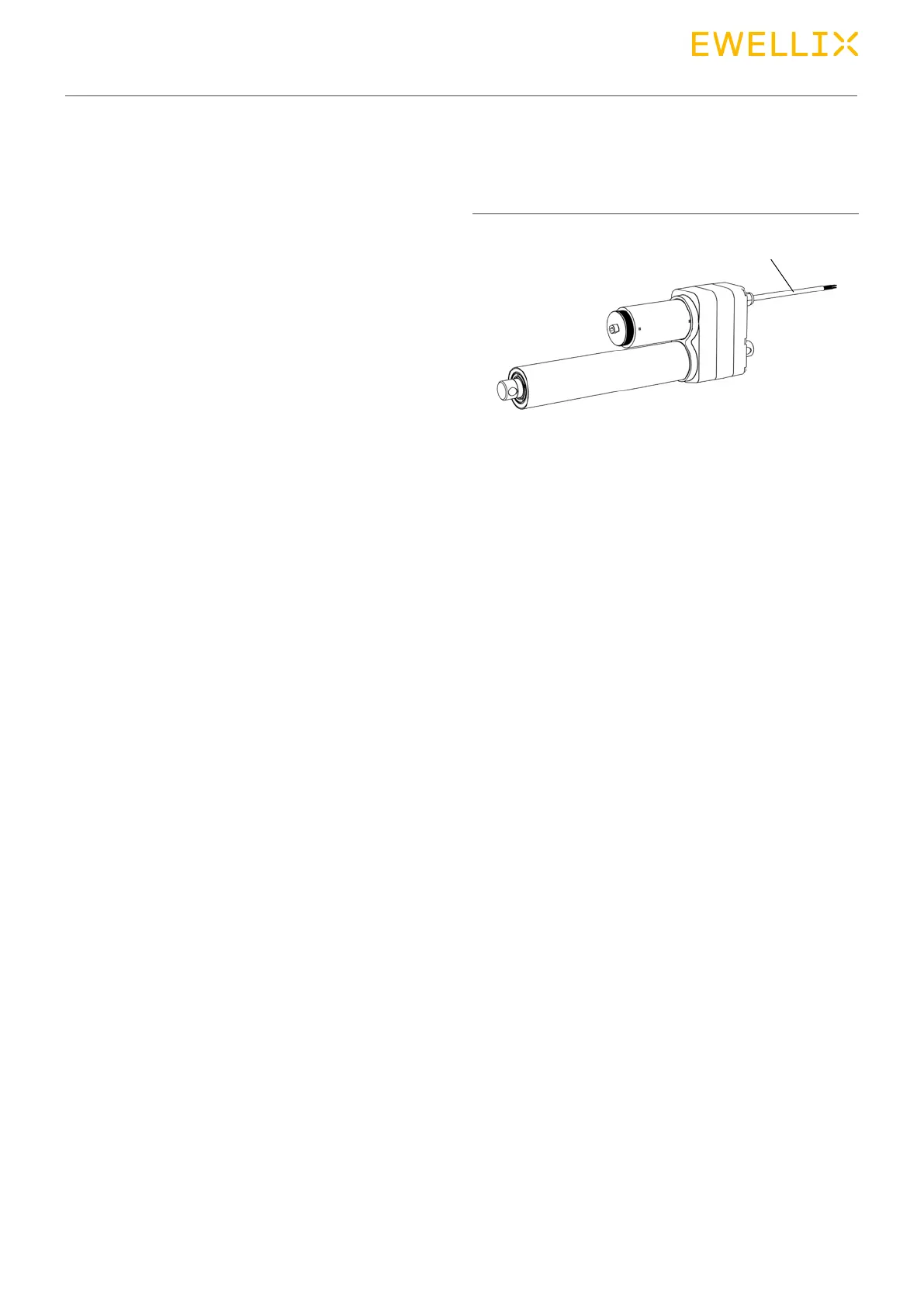

Fig. 14
1
CAHB-2x connections
1. Wires to connect actuator to power supply or to an exter-
