Ewellix CAHB-2 Series - Inspections Prior to First Operation

23
6.0 Installation and first operation
WARNING
Risk of injury and material damage due to insufficient
fastening!
Only use fastener and secure them adequately. Do not use full-
threadscrewtoinstall,thethreadwoulddamagetheattachment
hole and increase friction. Never loosen or otherwise manipulate
screws on actuator or options.

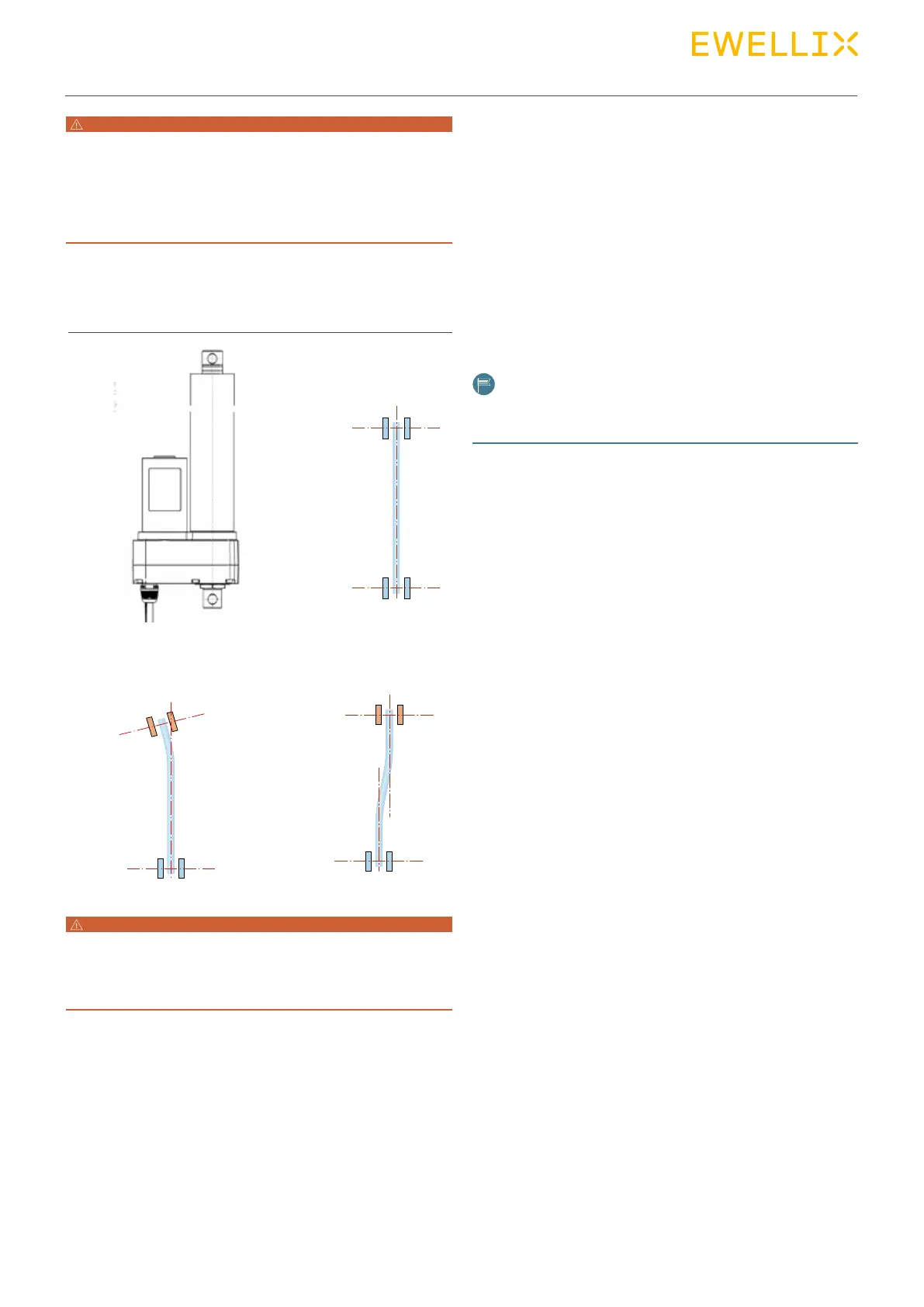

2. Ensure that the applied force on the fastening bolts is al-
ways centrically directed on the actuator (⮑Fig.21).
Fig. 21
Issues schemes:
Correct installation
Parallell issue
Misaligned issue
WARNING
Risk of injury and material damage due to incorrect
installation!
Duringinstallation,donotsubjecttheactuatortoside-impactorto
turning forces.
3. Duringinstallation,besurethatthelinearactuatorisnot
impacted in its movement over the entire stroke area.
4. Duringinstallation,besurethatthemotorcableisnot
squeezed,clampedorpulled.
5. Connect linear actuator to power supply (⮑6.4Connect
to Power Supply, page 24).
6. Ensure that none of the supply or control cables can be
pinched by the kinematics of the application or by the lin-
ear actuator during the extension or retraction.
6.3 Inspections prior to
rst operation
Priortotherstoperation,aprofessionalelectricianmust
perform and document the following tests and readings:
• Check visual condition
• Function check of operating features and safety features
• Reading of protective conductor resistance
• Reading of leakage currents
• Reading of insulation resistance
NOTE
Additional information concerning inspections and readings
(⮑8.0 Maintenance, page 32).
