CAHB-20 series
6.0 Installation and rst operation
Authorized personnel
• Theinstallationandrststartofoperationmayonlybe
conductedbyqualiedpersonnel.
• Work on the electric system may only be performed by
trained electricians.
WARNING
Electric shock and moving parts hazards
Serious injury or death can be caused by touching live electrical
components and by unexpected movement of the actuator.
Be sure the system’s power supply is off and actuator is locked
out before installing.
WARNING
Danger if restarted without authorization!
Whencorrectingfaults,thereisdangeroftheenergysupplybeing
switched on without authorization. This poses a lifethreatening
hazard for persons in the danger zone.
Therefore:
• Priortostartingwork,switchothesystemandsafeguard
it from being switched on again.
WARNING
Risk of injury and material damage due to incorrect installation
of the optional devices!
Therefore:
• Optionaldevices,inparticularcomponentsthatarepartof
aretrotting,mayonlybeinstalledinaccordancewiththere-
spective instructions (circuit diagram).
• The electromagnetic compatibility must be tested for the routing
and appropriate measures must be carried out if necessary.
6.1 Installation location
Adhere to the technical data in accordance with operating
conditions (⮑ 11 Appendix, page 37).
Install in a location where the actuator is not exposed to
strongUVradiationorcorrosiveorexplosiveairmedia.
6.2 Installation
The CAHB-2x linear actuator is attached to two elements via
the hinge heads.
1. Connect the hinge heads (1 and 2, ⮑Fig. 19) to the ap-
propriate elements of the application with the fastening
bolts. To align the hole to the axis of the application at-
tachment,youcanturnthetubeby+/-90°butnotmore.

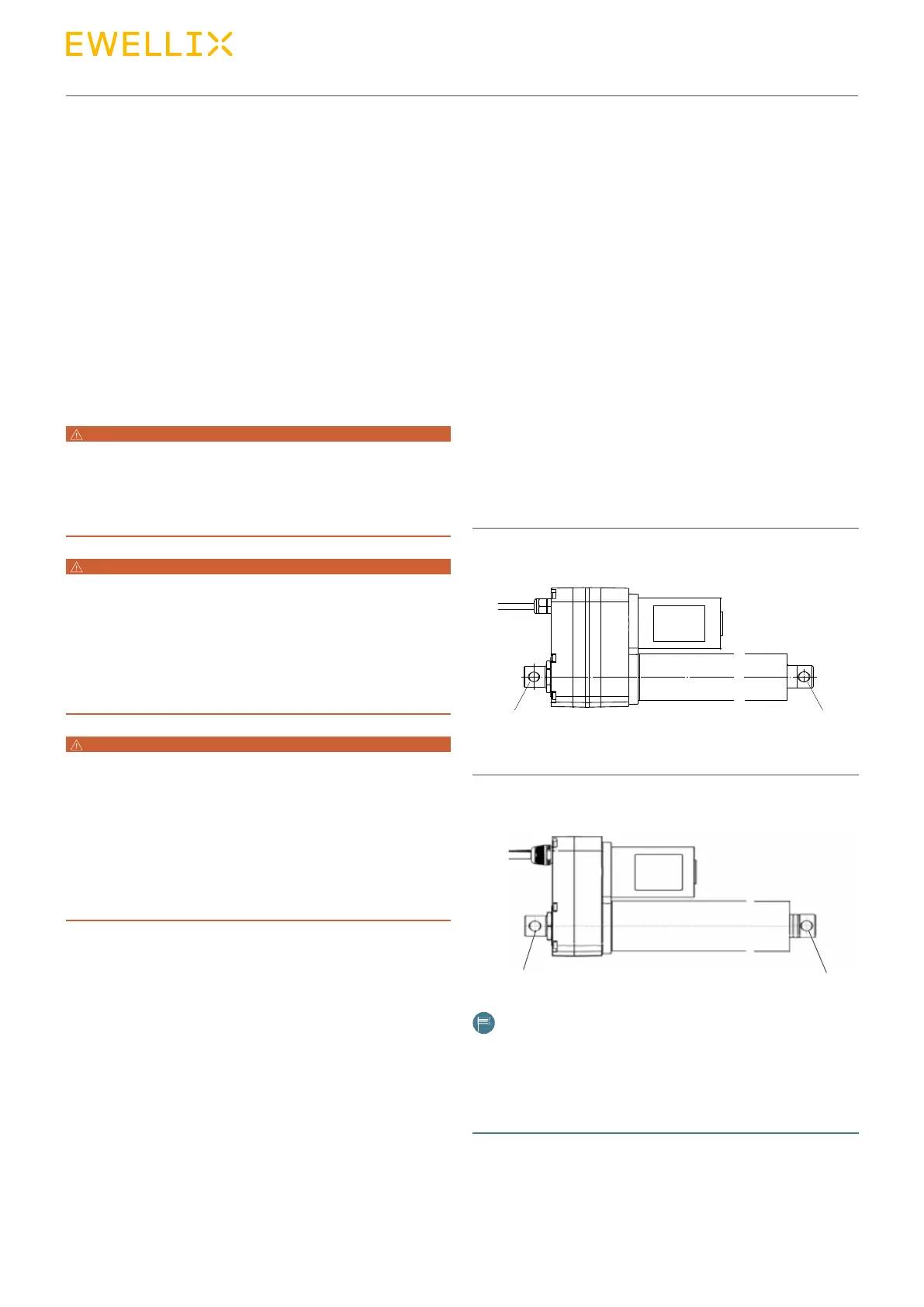

Fig. 19
E-design
1 2
Fig. 20
S-design
1
2
NOTE
Information concerning the diameter of hinge heads can be found
in the datasheet. The dimensions of application elements and pins /
fastening bolts should be appropriate. The fit dimensions between
holes and pins should follow the general tolerance principle so that
keep a good installation status.
