Machine description – quick overview
Rear view
099-005149-EW501
11.08.2016
17

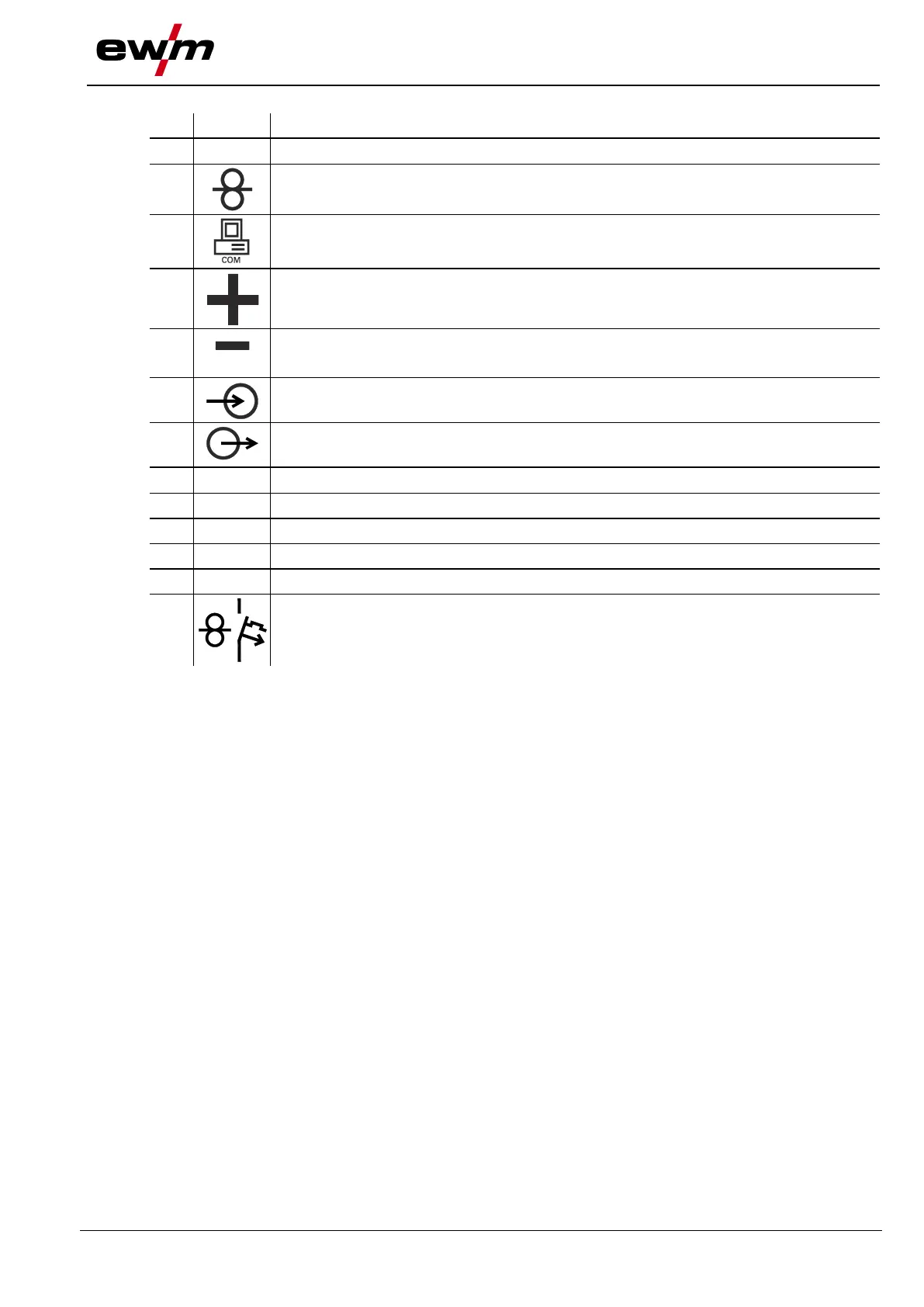

Item
Symbol
Description 0
1
Intermediate hose package strain relief
2
19-pole connection socket (analogue)
Wire feed unit control lead connection
3
D-sub connection socket, 9-pole
With this machine series for maintenance purposes only (specialist staff)
4
Connector plug, welding current "+"
Welding current connection on wire feed unit
5
Connection socket, “-” welding current
• MIG/MAG cored wire welding:
Welding current to wire feed/torch
6
Quick connect coupling (red)
coolant return
7
Quick connect coupling (blue)
coolant supply
8
Wheels, fixed castors
9
Bracket for shielding gas cylinder
10
Cooling air outlet
11
Mains connection cable > see 5.1.8 chapter
12
Securing elements for shielding gas cylinder (strap/chain)
13
Key button, Automatic cutout
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
