EWM Taurus 551 Basic FDG - Air Arc Gouging; Connection

Design and function
MMA welding
099-005149-EW501
11.08.2016
41
5.3.6 Air arc gouging
Please note the relevant documentation of the accessory components.
During gouging, an arc burns between a carbon electrode and the workpiece, heating the workpiece until
it is molten. At the same time, the molten metal is blown out with compressed air. Special electrode
holders with a compressed-air connection and carbon electrodes are required for gouging.
5.3.6.1 Connection

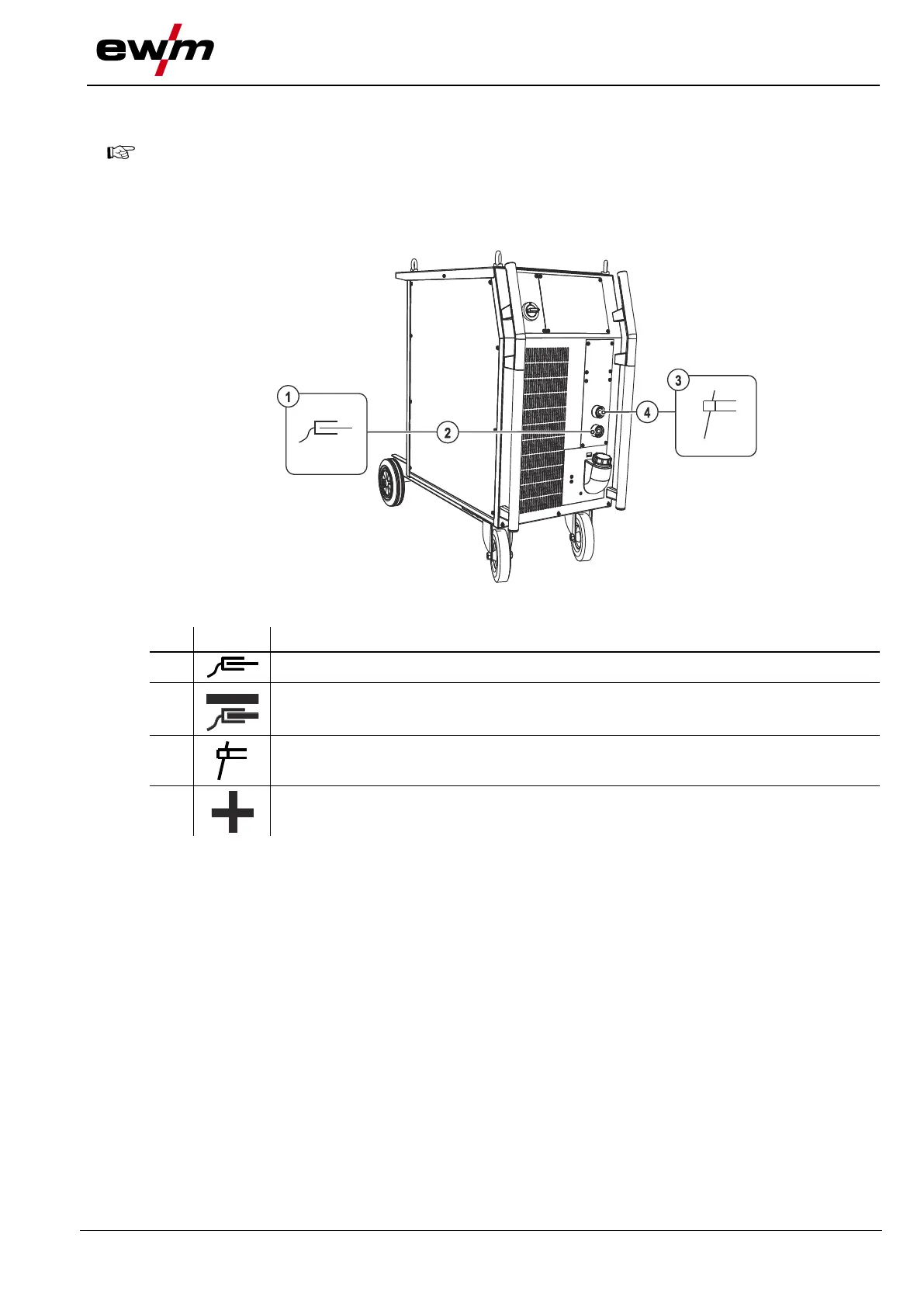

Figure 5-21
Item
Symbol
Description 0
1
Workpiece
2
Connection socket, “-” welding current
3
Gouging torch
4
Connection socket, “+” welding current
• Insert the gouging torch cable plug into the "+" welding current connection socket and lock in place by
turning to the right.
• Insert cable plug on the workpiece lead into the "-" welding current socket and lock by turning to the
right.
