Design and function
MMA welding
40
099-005149-EW501
11.08.2016

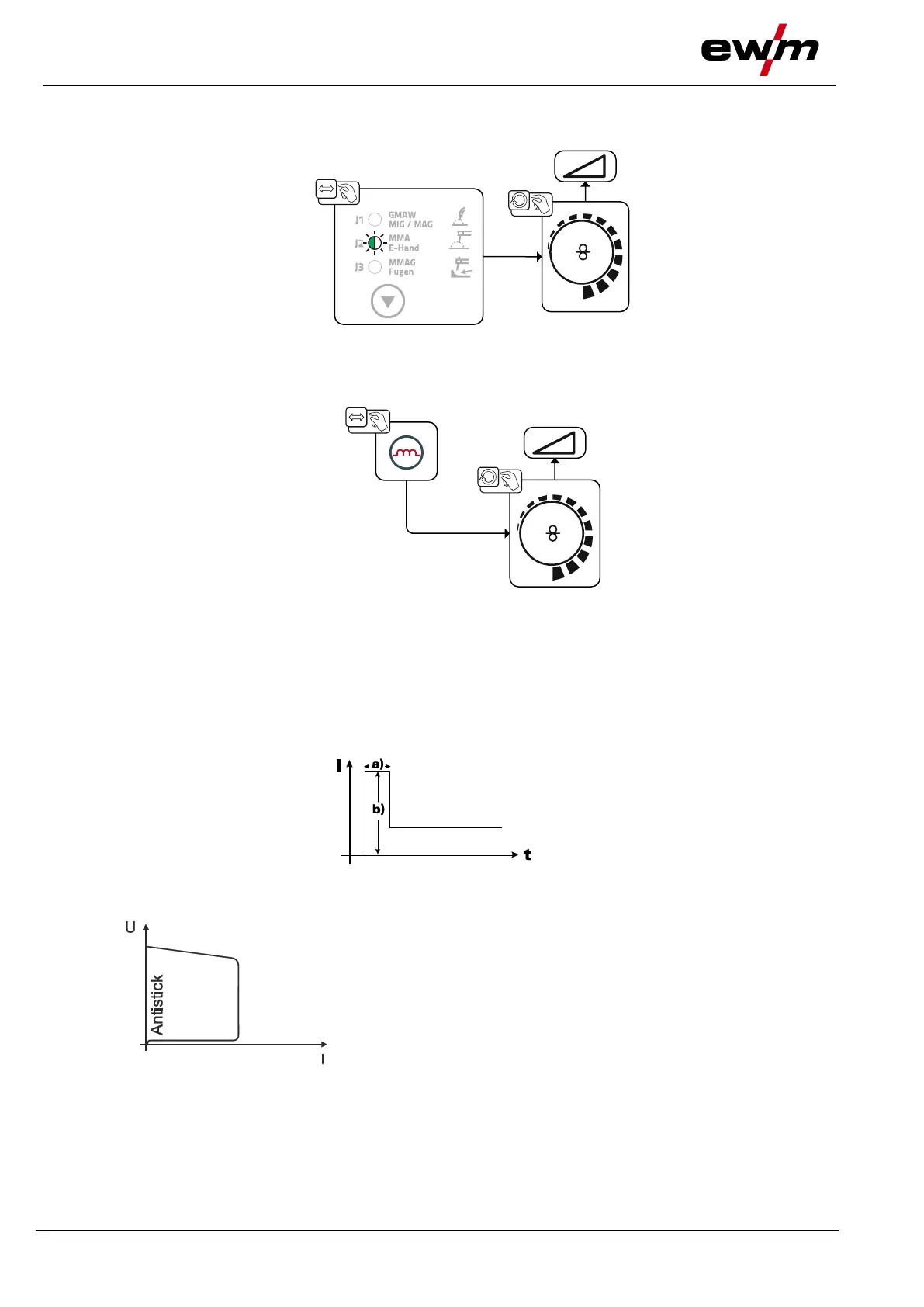

5.3.2 Welding task selection
Figure 5-17
5.3.3 Arcforce
Figure 5-18
Setting:
• Negative values: rutile electrode types
• Values at zero: basic electrode types
• Positive values: cellulose electrode types
5.3.4 Hotstart
The hotstart device improves the ignition of the stick electrodes using an increased ignition current.
a) = Hotstart time
b) = Hotstart current
I = Welding current
t = Time
Figure 5-19
5.3.5 Antistick
Anti-stick prevents the electrode from annealing.
If the electrode sticks in spite of the Arcforce device, the machine
automatically switches over to the minimum current within about 1
second to prevent the electrode from overheating. Check the welding
current setting and correct according to the welding task!
Figure 5-20
