Design and function
Transport and installation
099-005149-EW501
11.08.2016
5 Design and function
Risk of injury from electric shock!
Contact with live parts, e.g. welding current sockets, is potentially fatal!
• Follow safety instructions on the opening pages of the operating instructions.
• Commissioning may only be carried out by persons who have the relevant expertise of
working with arc welding machines!
• Connection and welding leads (e.g. electrode holder, welding torch, workpiece lead,
interfaces) may only be connected when the machine is switched off!

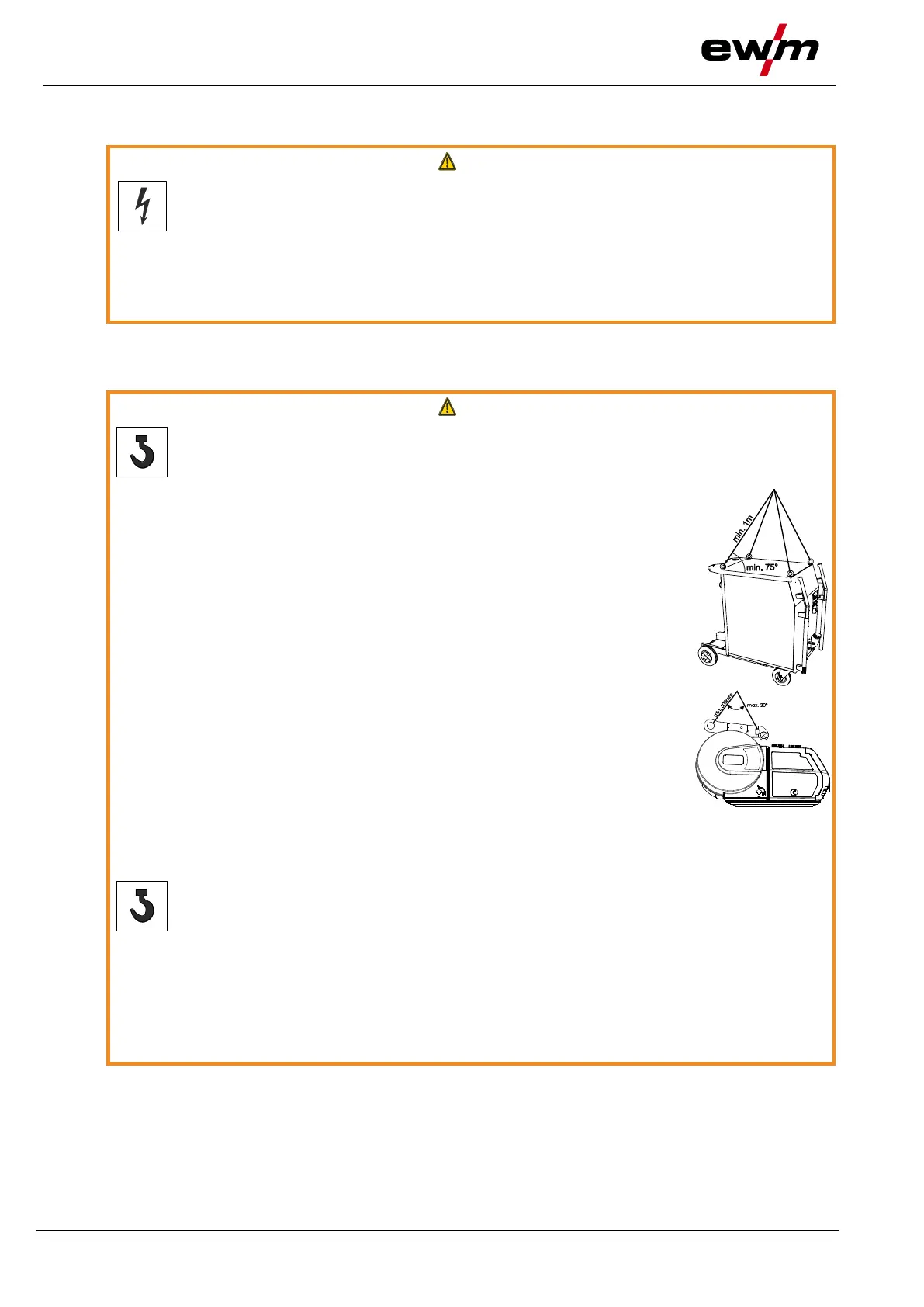

5.1 Transport and installation
5.1.1 Lifting by crane
Risk of injury during lifting by crane!
When lifting the machine by crane, persons may be severely injured by falling machines
or mount-on components.
• Simultaneous lifting of system components such as power source, wire
feeder or cooling unit without suitable crane components is not
allowed. Each system component has to be lifted separately!
• Remove any supply leads and accessories before lifting by crane (e.g.
hose package, wire spool, shielding gas cylinder, toolbox, wire feeder,
remote control,etc.)!)
• Properly close and lock all casing covers and protective caps before
lifting by crane!
• Use the correct number of hoisting equipment of the right size in the
correct position! Observe craning principle (see figure)!
• For machines with lifting eyes: always lift all lifting eyes simultaneously!
• When using retrofitted craning frames etc.: always use at least two
lifting points positioned as far apart as possible – observe option
description.
• Avoid any jerky movements!
• Ensure that the load is distributed evenly! • Use chain hoists and
chain slings of the same length only!
• Stay outside the danger zone underneath the machine!
• Observe the regulations regarding occupational safety and accident
prevention for the respective country.
Risk of injury due to unsuitable lifting eye!
In case of improper use of lifting eyes or the use of unsuitable lifting eyes, persons can
be seriously damaged by falling equipment or add-on components!
• The lifting eye must be completely screwed in!
• The lifting eye must be positioned flat onto and in full contact with the supporting surfaces!
• Check that the lifting eyes are securely fastened before use and check for any damage
(corrosion, deformation)!
• Do not use or screw in damaged lifting eyes!
• Avoid lateral loading of the lifting eyes!
