5.3.1 Connecting the electrode holder and workpiece lead
Polarity depends on the instructions from the electrode manufacturer given on the electrode
packaging.

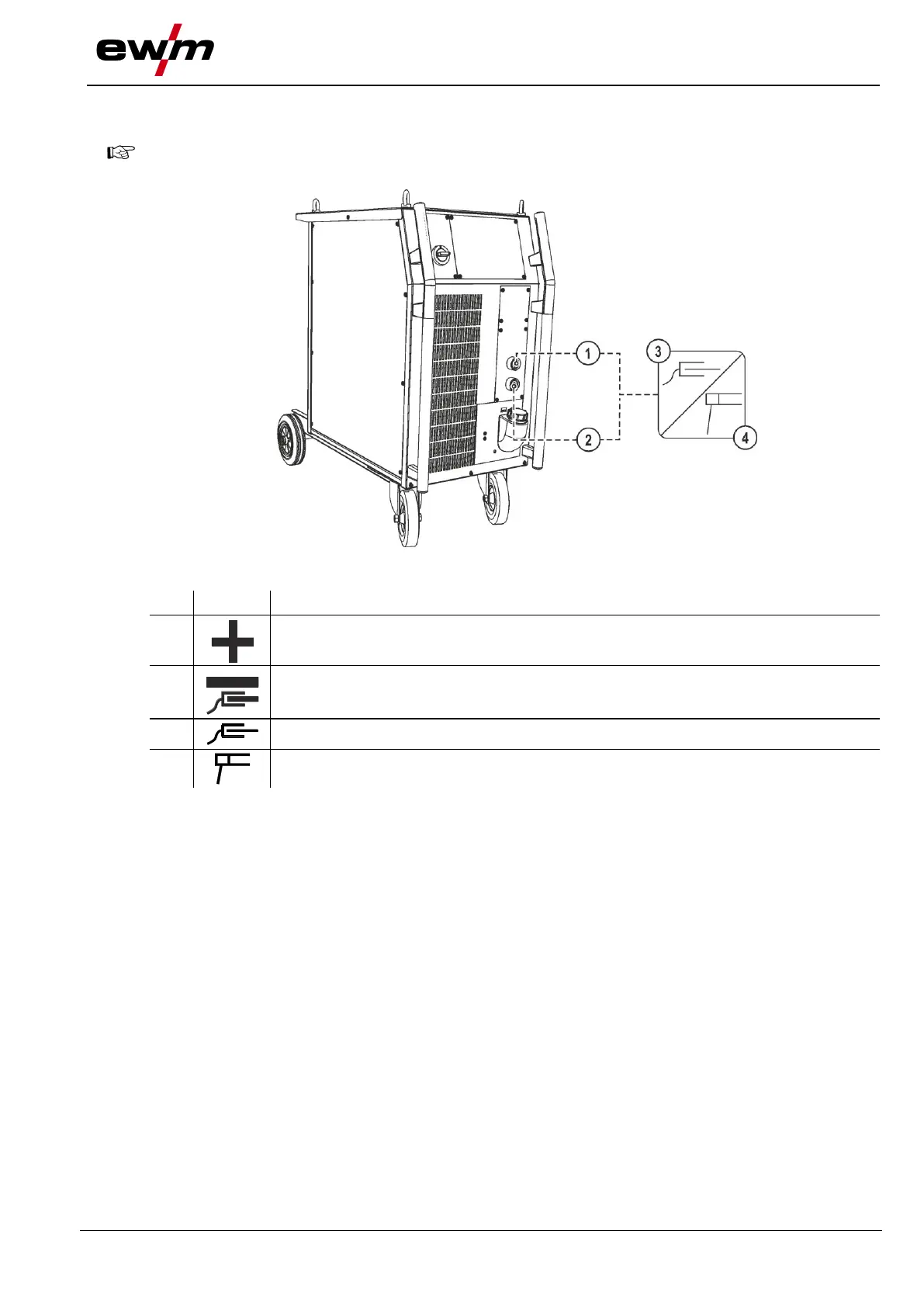

Figure 5-16
Item
Symbol
Description 0
1
Connection socket, “+” welding current
2
Connection socket, “-” welding current
3
Workpiece
4
Electrode holder
• Insert cable plug of the electrode holder into either the "+" or "-" welding current connection socket and
lock by turning to the right.
• Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
