EWM Taurus 551 Basic FDG - Intermediate Hose Package Connection

Design and function
Transport and installation
22
099-005149-EW501
11.08.2016
5.1.5 Intermediate hose package connection
Some wire electrodes (e.g. self-shielding cored wire) are welded using negative polarity. In this
case, the welding current lead should be connected to the "-" welding current socket, and the
workpiece lead should be connected to the "+" welding current socket. Observe the information
from the electrode manufacturer!

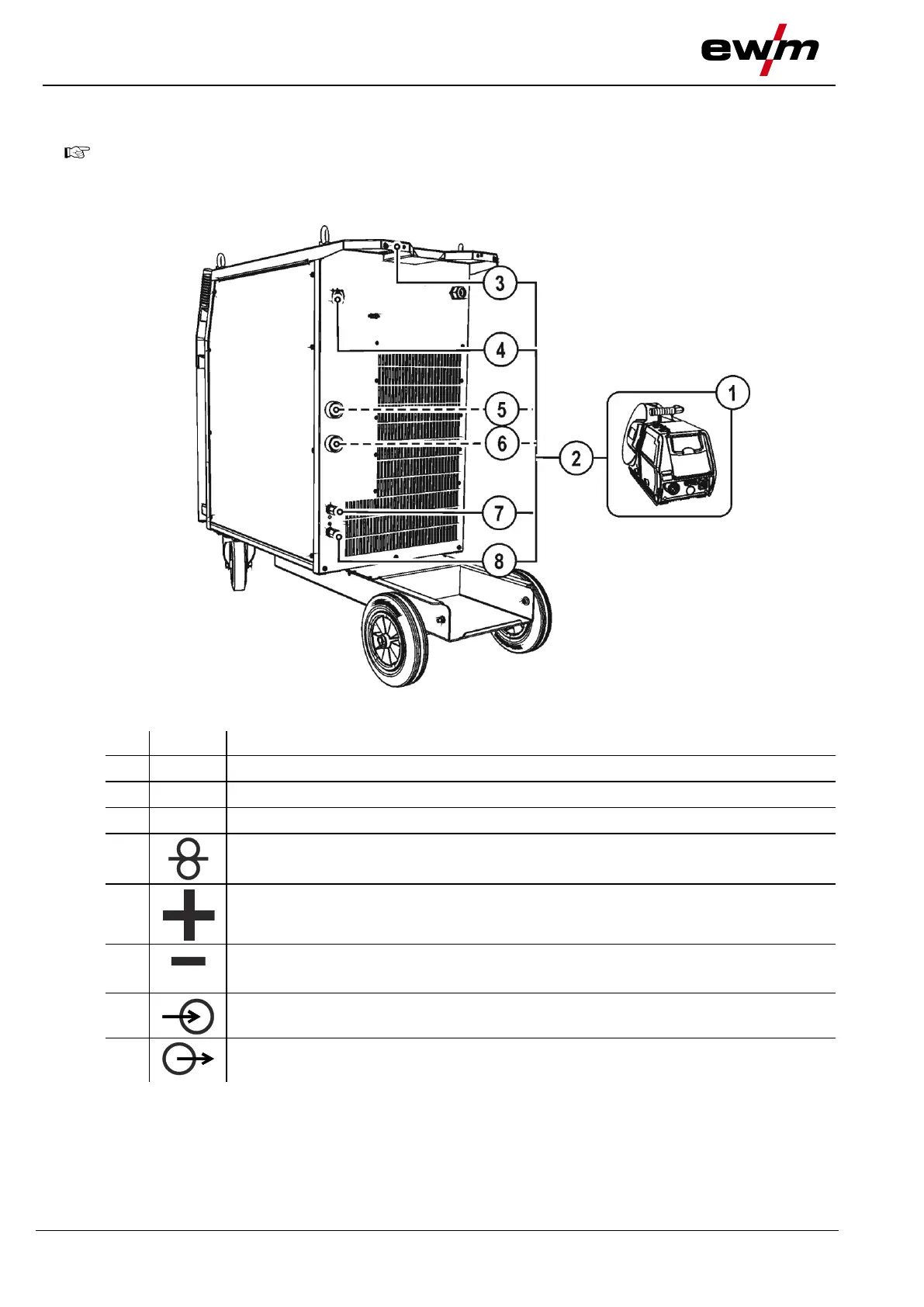

Figure 5-1
Item
Symbol
Description 0
1
Wire feed unit
2
Intermediate hose package
3
Intermediate hose package strain relief
4
19-pole connection socket (analogue)
Wire feed unit control lead connection
5
Connector plug, welding current "+"
Welding current connection on wire feed unit
6
Connection socket, “-” welding current
• MIG/MAG cored wire welding:
Welding current to wire feed/torch
7
Quick connect coupling (red)
coolant return
8
Quick connect coupling (blue)
coolant supply
