Chapter 1 Front and Rear Panel Specifications

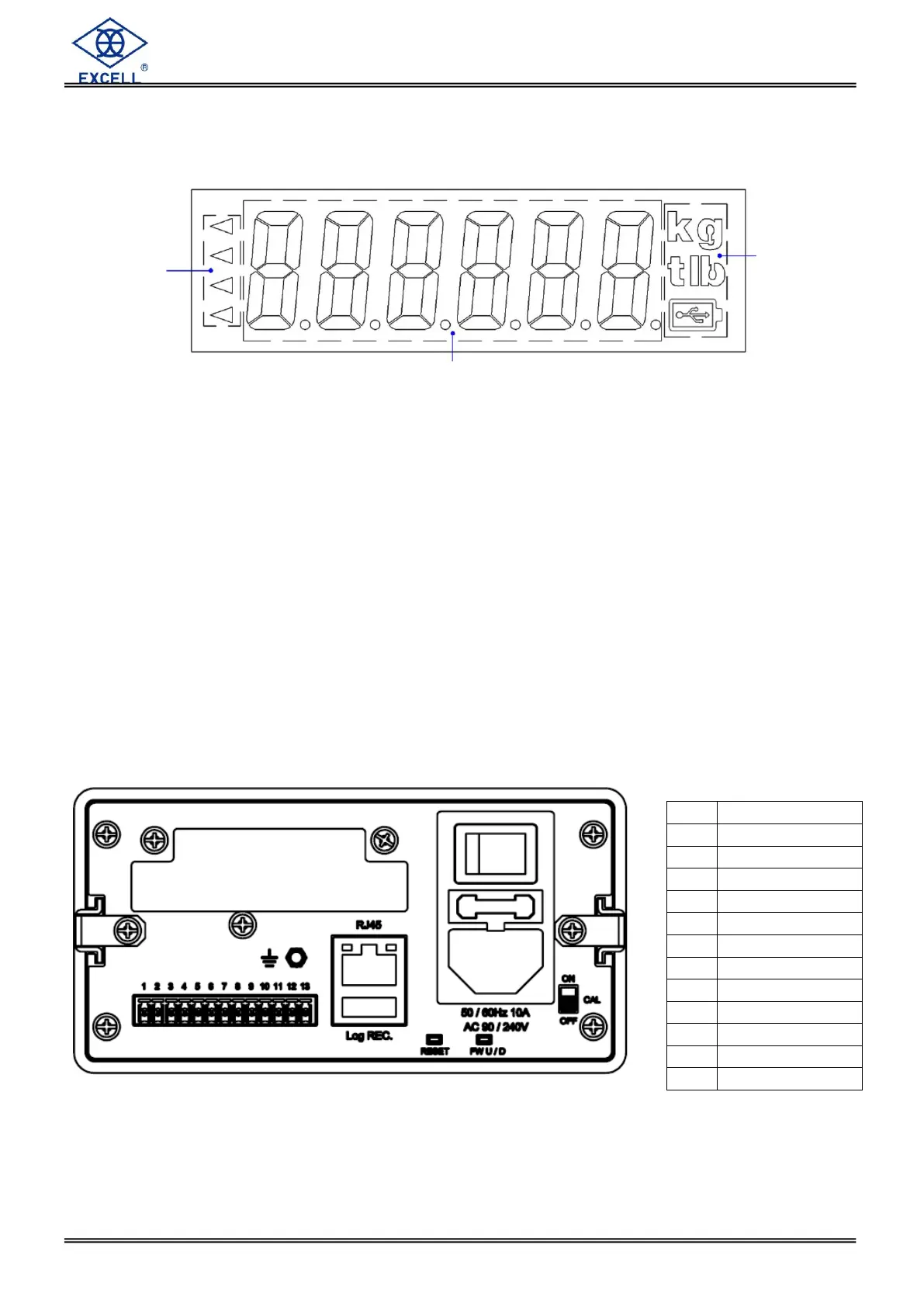

1-1 Front panel
Display
 6 digits, bright red or green, 7 segment LED display, character height 21mm (0.83”).
 Display can be switched between Gross Weight / Net Weight / Totalised Weight /
Number of transactions in the total.
Indication icons “◄”
ZERO
◄
:
Zero Indication
STABLE
◄
:
Stable weight Indication
GROSS
◄
:
Gross weight Indication
NET
◄
:
Net weight Indication
 The indicator is supplied with suitable labels to customise the icon displays.
 Refer to FNC-06 ~ FNC-09 for the various options available.
Weighing Units
 Weighing Units kg / g / t / lb.
USB Indicator
 USB icon is turned on when USB is connected; otherwise USB is not connected.
1-2 Rear panel
 Calibration Switch: set to the down is “OFF” and to the up is “ON”
 RESET: Press and release the "RESET" button to restart the system.
 Firmware update (FW U/D): Hold the "FW U/D" button while turning on 320S. After about 3
seconds, the LED panel will display "READY", and release the button to display "UPDATE".
At this point, it has entered the firmware update mode. Please refer to Appendix 6 for more
details of firmware update.
 13 Way Terminal Block
1
st
E+
2
nd
E-
3
rd
S+
4
th
S-
5
th
SEN-
6
th
SEN+
7
th
N/C
8
th
N/C
9
th
RS-232 RX
10
th
RS-232 TX
11
th
DGND
12
th
RS-485 D+
13
th
RS-485 D-
Indication
Weight Unit
Display Area
