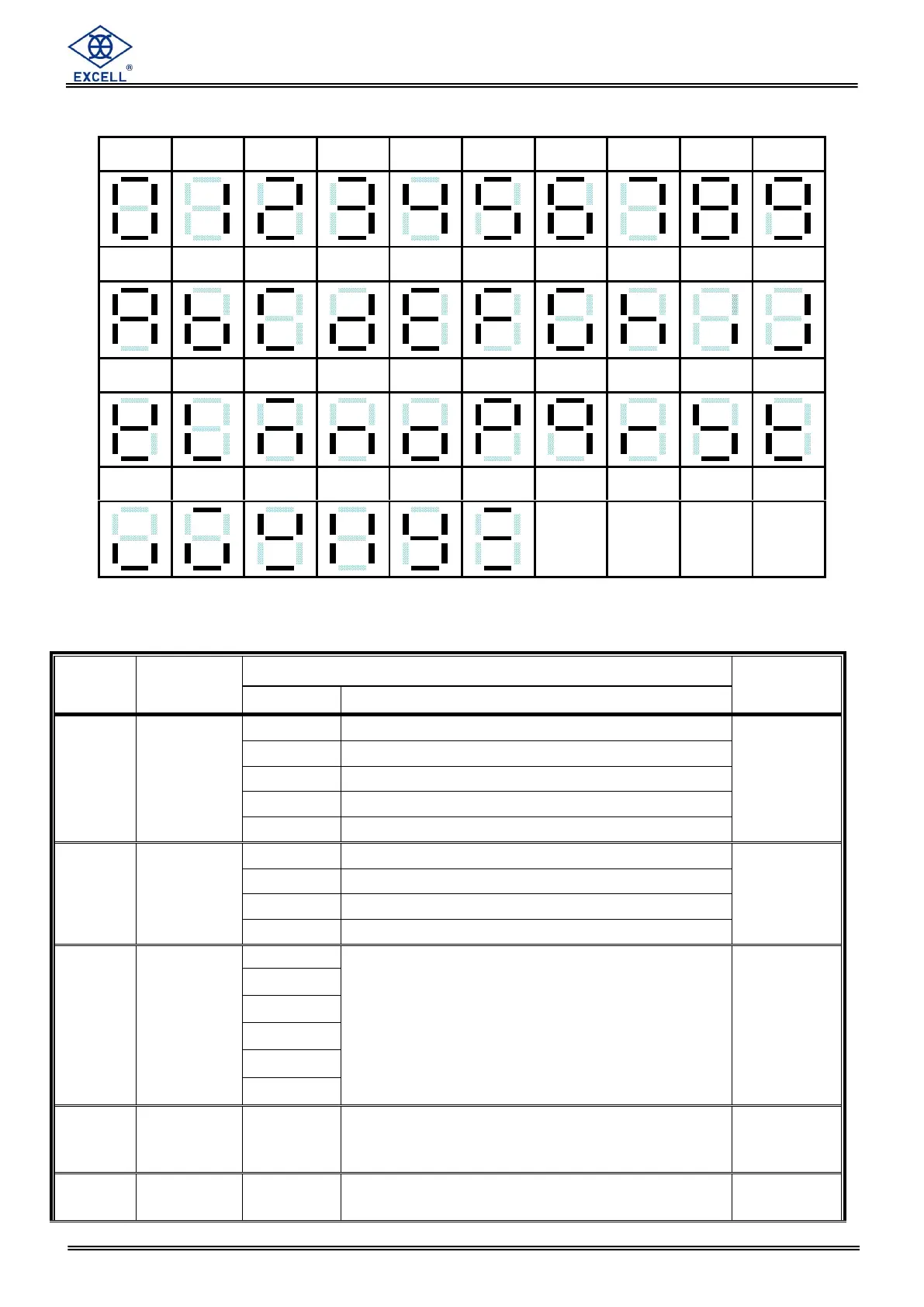

Appendix 1 Description of 7-Segment Characters
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
Appendix 2 Function Table
Specification Calibration
Item
Function
Setting value
Default
Parameter
Description
CSP-01
Unit
0
None
2
1
g
2
Kg
3
t
4
lb
CSP-02
Decimal
Point
0
None
0
1
1 Decimal Point
2
2 Decimal Point
3
3 Decimal Point
CSP-03
Division
1
Division size
1
2
5
10
20
50
CSP-04
Max.
Capacity
999999

000000
Max. capacity
999999
CSP-05
Zero range
0 =full range
(1%~30%)
Zero range = calibration zero point  (Max.
capacitysetting value %)
0
