5-3 Analogue Current / Voltage Output Interface (OP-03)

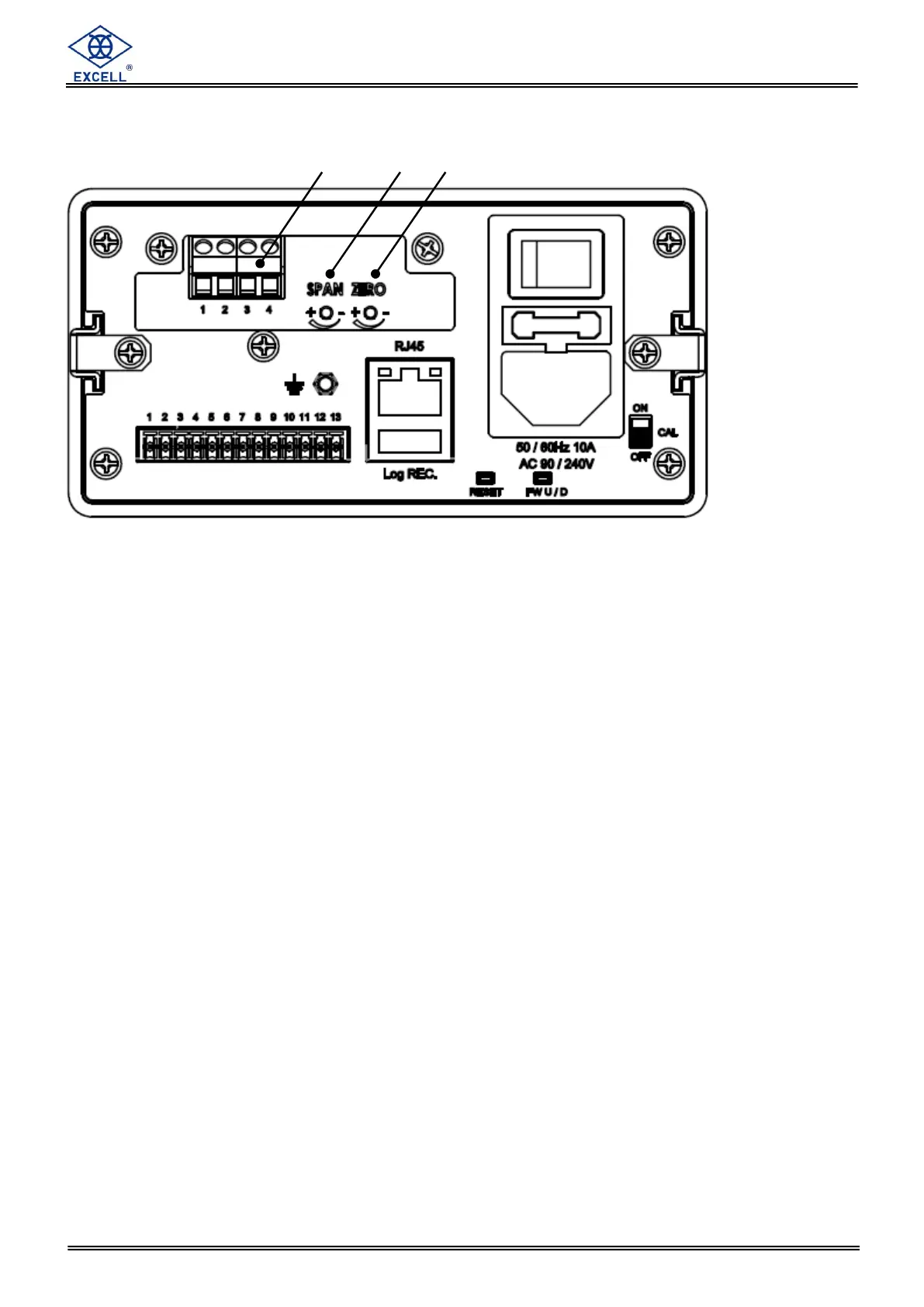

 Location
A. Terminal (4 way)
1
:
4 ~ 20mA current output, A(+)
2
:
0 ~ 10V voltage output, V(+)
3
:
Current / voltage signal, Com. (-)
4
:
Ground / 0V, FG
B. SPAN adjustment
Current / voltage Span adjustment to increase value turn clockwise, decrease value turn
anticlockwise.
C. ZERO adjustment
Current / voltage Zero adjustment to increase value turn clockwise, decrease value turn
anticlockwise.
 Analogue output interface specification
Resolution
:
16 bits
Current output
:
4 ~ 20mA ( 0 ~ 550  load)
Voltage output
:
0 ~ 10V
A B C
