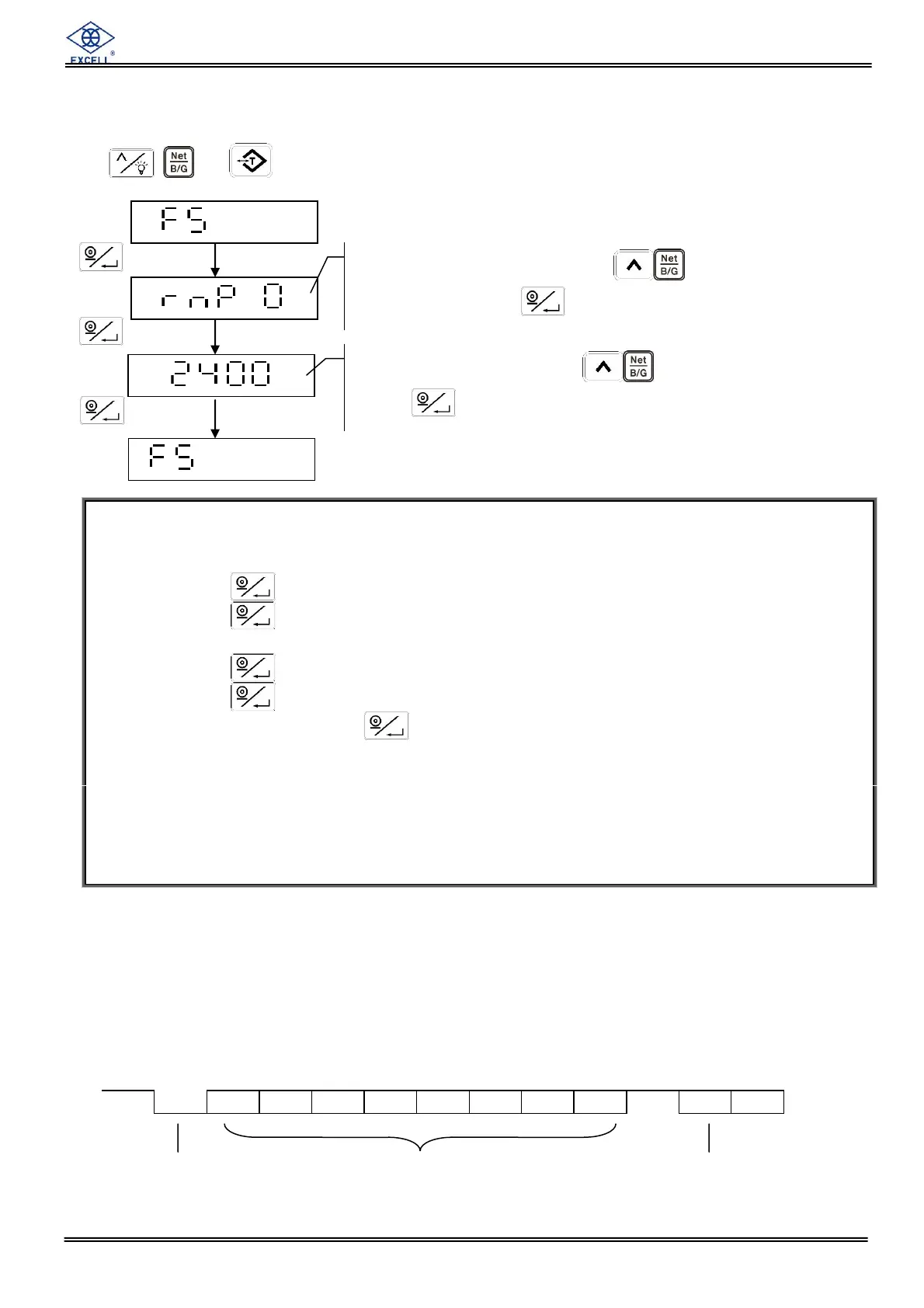

3-2 F5 RS-232 Output Setting (Option)
Make J1、J3 on RS232 short circuit, when connecting to computer.
Use or key to select F5.
RS-232 Interface Format
I . Mode: UART Signal of EIA-RS0232 C
II . Format :
1. Baud rate : 1 200, 2 400, 4 800, 9 600 bits/second
2. Data bits : 8 bits
3. Parity bit : None
4. Stop bits : 1 bit
5. Code : ASCII (Exchange code of American standard)
Start bit Data bits Stop bit
r n P 0
RS232 command mode.
r n P 1
Stable transmission.
r n P 2
Continuous transmission.
r n P 3
Press key to transmit totalized simple format.
r n P 4
Press key to transmit totalized complete format.
r n P 5
Stable transmission in totalizing mode. Same format as (r n P 3).
r n P 6
Press key to transmit simple free format. Please refer to F14.
r n P 7
Press key to transmit complete
Free format. Please refer to F14.
r n P 8
While use Hold, press key to transmit same format as (r n P 1) and (r n P 2).
r n P 11
Print after removing goods (5% mode).
r n P 12
Print after removing goods (OK mode).
r n P 13
MODBUS function, need to use with F11 ID Code Setting
r n P 14
Stable transmission, only weight value is transmitted
r n P 15
Enter serial number, reply serial number, weight
r n P 16
Continuous transmission with High, Low, Ok status
Transmission mode：use key to select r n P 0 ~
r n P 14 and press to save
RS-232 baud rate：use key to select 1200~9600 and
press to save
