Internally power supply from the system itself
Do not connect any power supply to PIN4, PIN5

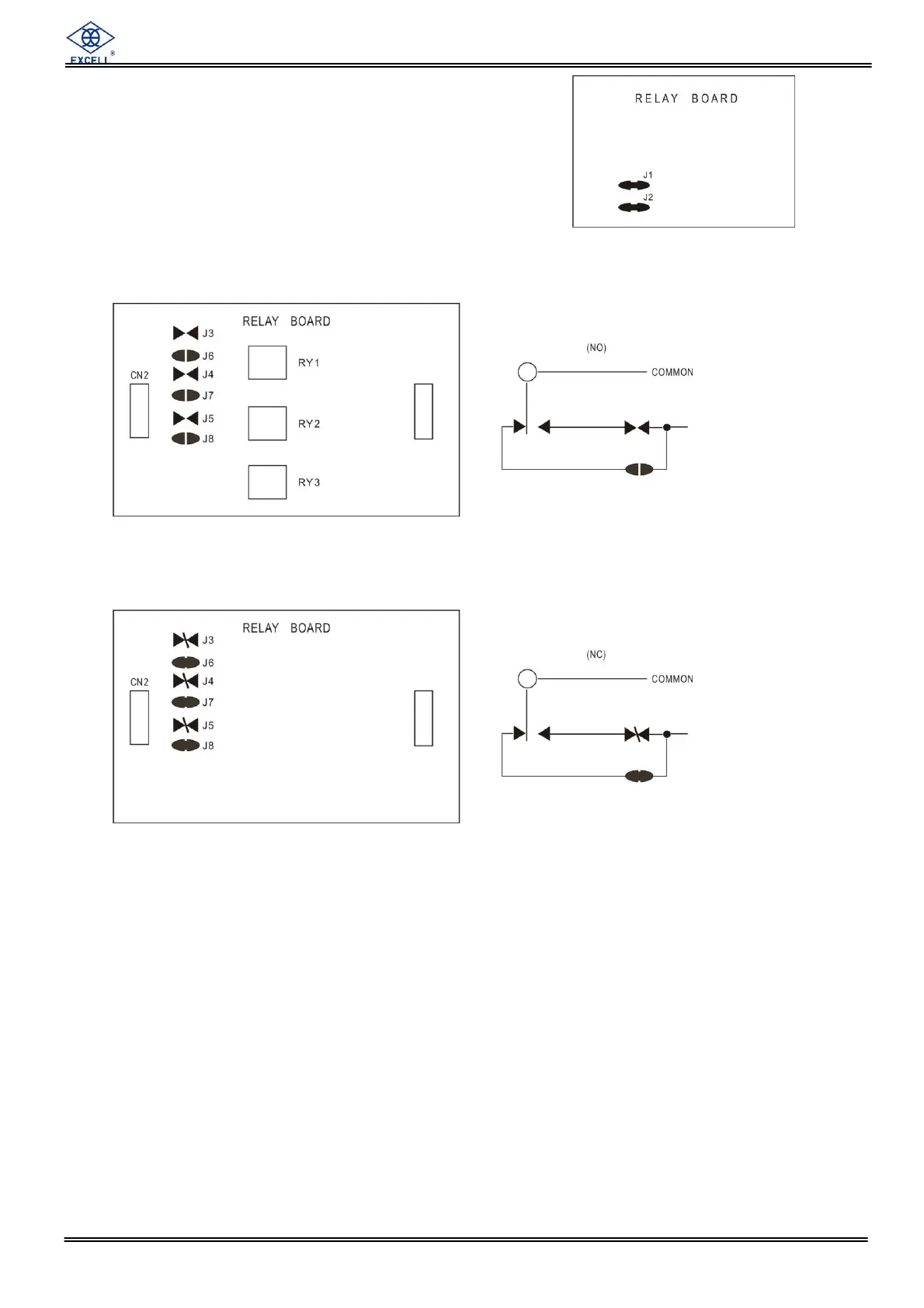

J1, J2 SHORT
4. Configuration
OK, High, and Low can be set to NO (normally open, Type A) or NC (normally closed, Type B).
The default value is NO (normally open, Type A)
OK, High, and Low are NO (normally open, Type A) default
OK, High, and Low are NC (normally close, Type B)
Open J3, J4, and J5 by cutting the circuit
Then short J6, J7, and J8 with solder.
