Performing FTTx Measurements
34 PPM-350D
Performing a Measurement
3. Tu rn unit on.
4. Select appropriate test configuration.
Note: When testing on F1 (between the CO and Splitter), select downstream only.
Results are now available.

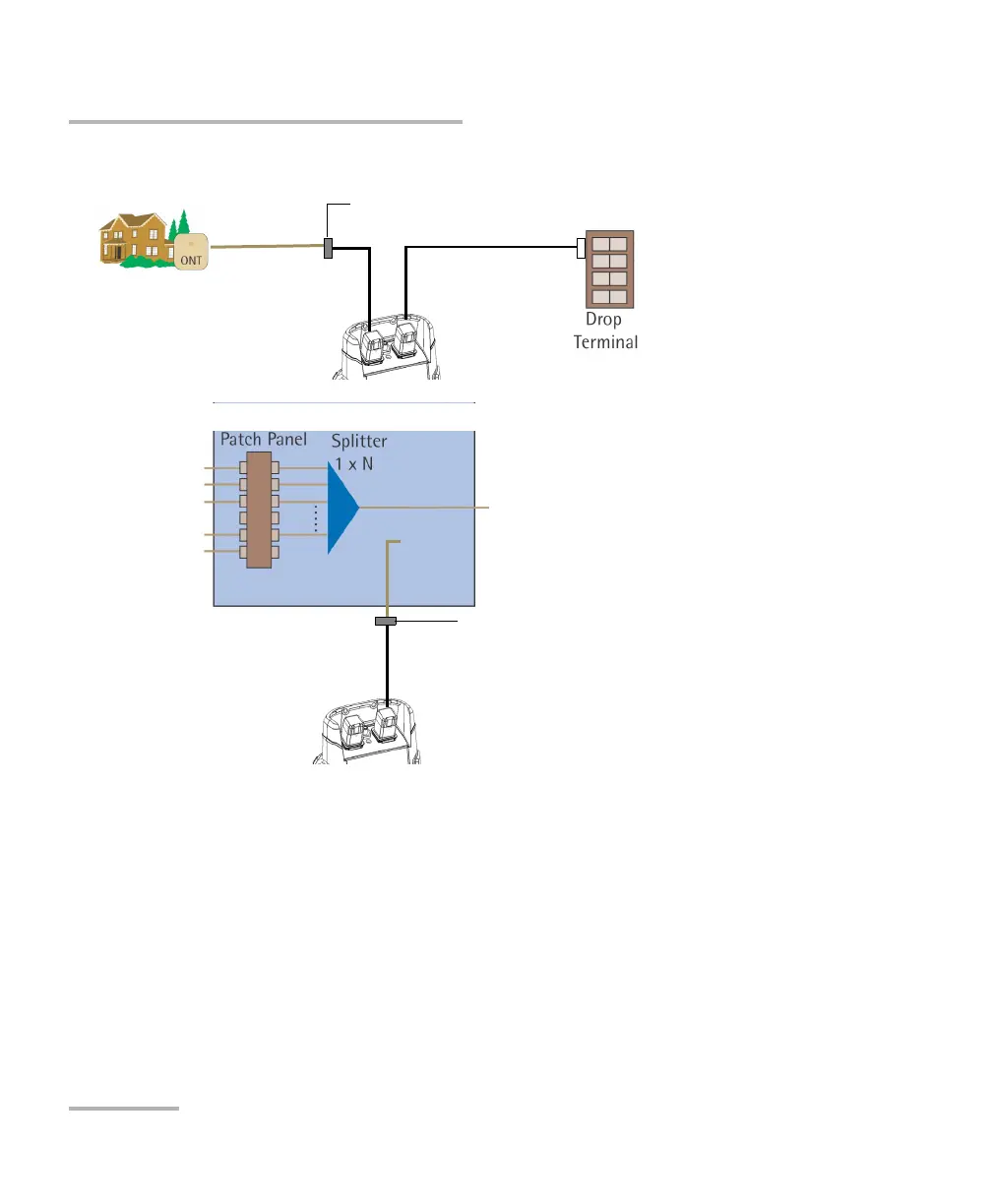

Test at the drop terminal
Tes t j ump e r
OLT/video port
Tes t jump er
ONT port
Bulkhead connector
Drop cable
OLT/video port
ONT port
Splitter’s output pigtail
Bulkhead connector
Te s t j u m p e r
Test at the fiber distribution hub (FDH)
To Next Page
