Exmark Frontrunner 4500-341 - Park Brake Group

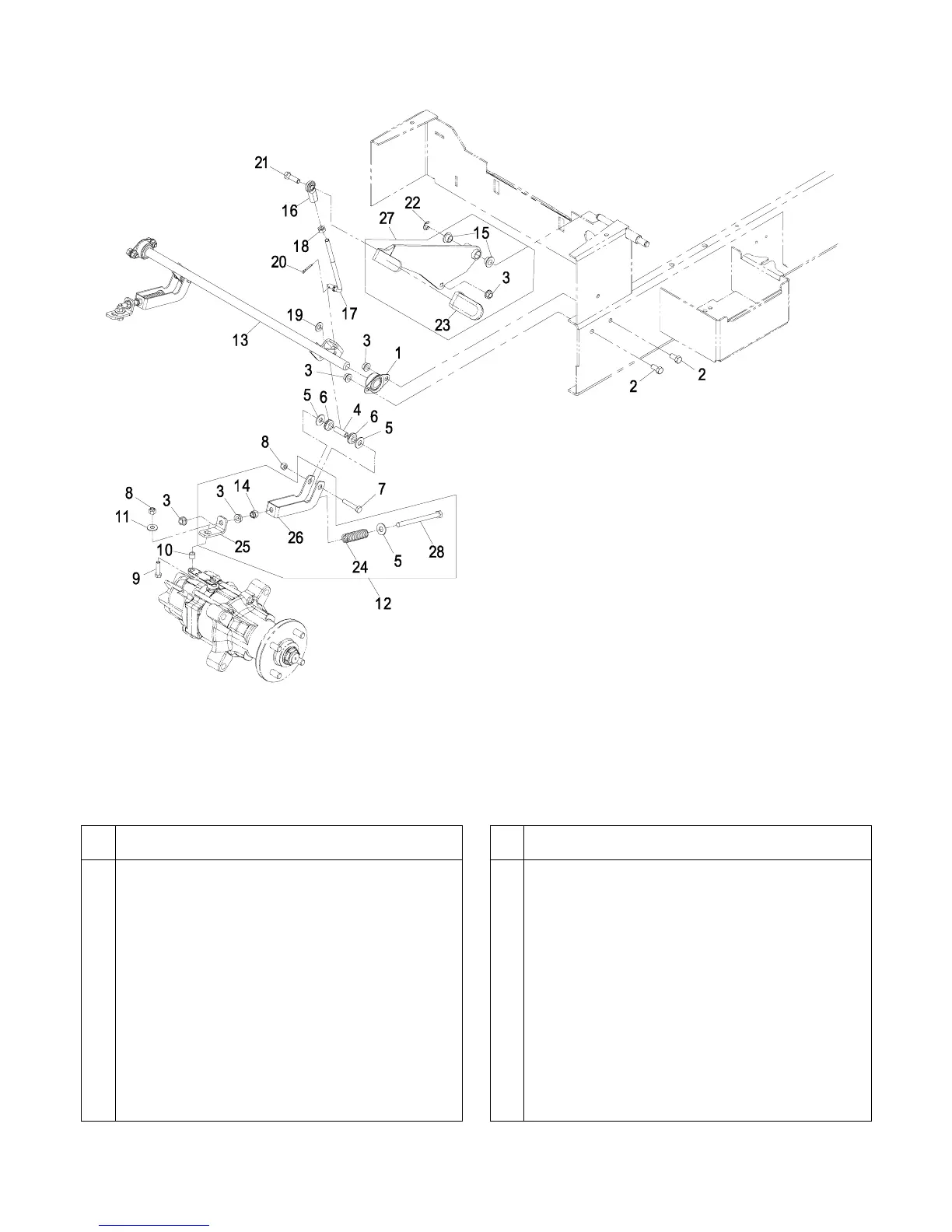

PARK BRAKE GROUP
9
Item Part No. DESCRIPTION Qty.
1 1-633102 Bearing, Flanged.................................... 2
2 323-4 Screw, HH 3/8-16 x 3/4 ..........................4
3 3290-357 Nut, Whizlock 3/8-16..............................9
4 109-0262 Spacer ...................................................2
5 3256-4 Washer, 3/8 Std ..................................... 6
6 1-633630 Grommet................................................4
7 322-9 Screw, HH 5/16-18 x 1 3/4 .....................2
8 3296-29 Nut, Nyloc 5/16-18 .................................4
9 322-6 Screw, HH 5/16-18 x 1 1/4 .....................2
10 103-0126 Bushing..................................................2
11 3256-3 Washer, 5/16 Std ................................... 2
12 109-0132 Asm, Brake Linkage............................... 2
13 103-8625-03 Wld, Brake Cross Shaft .........................1
14 3296-59 Nut, Nyloc 3/8-16 Thin ...........................2
Item Part No. DESCRIPTION Qty.
15 1-513140 Bearing .................................................. 2
16 103-0608 Balljoint.................................................. 1
17 103-4399 Rod, Linkage Brake ............................... 1
18 3219-3 Nut, Hex 3/8-24...................................... 1
19 3256-24 Washer, 3/8 SAE................................... 1
20 3272-10 Pin, Cotter 1/8 x 3/4............................... 1
21 323-7 Screw, HH 3/8-16 x 1 1/4....................... 1
22 32120-47 Ring, Retaining ...................................... 1
23 1-633268 Grip, Brake Lever................................... 1
24 103-4388 Spring.................................................... 2
25 109-0130 Link, Brake ............................................ 2
26 109-0131 Clevis, Brake ......................................... 2
27 109-1192 Asm, Brake Lever W/Grip & Bearings.... 1
28 323-39 Screw, HH 3/8-16 x 5............................. 2
Exmark black touch up spray paint – Gloss black
