Exmark Frontrunner 4500-341 - Electrical Group

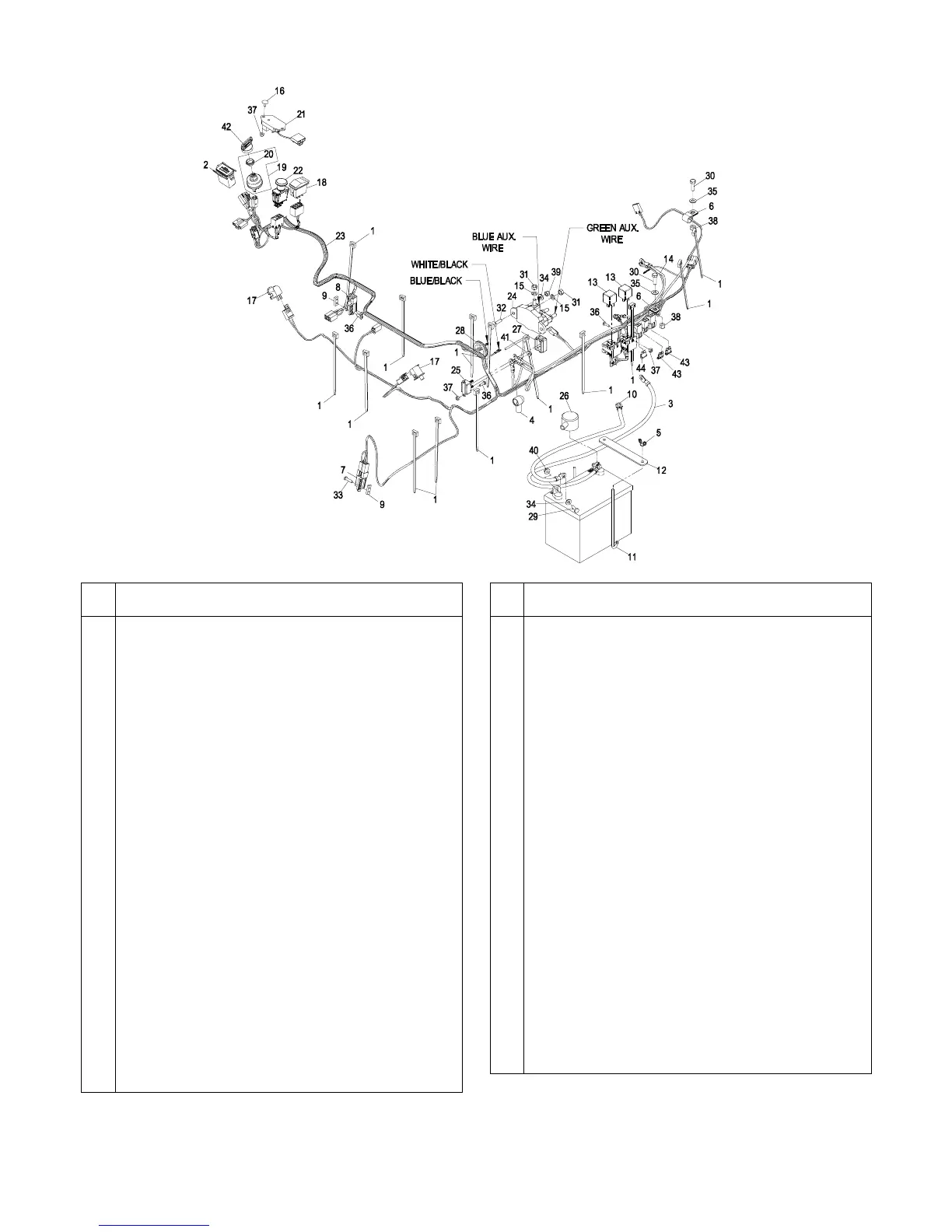

ELECTRICAL GROUP
17
Item Part No. Description Qty.
1 1-303335 Tie, Cable 7 5/16 (Large) .......................14
2 1-513374 Meter, Engine Hours ..............................1
3■ 109-7608 Cable, Battery (+)...................................1
4 1-543393 Insulator, Solenoid .................................2
5 1-543792 Wingnut, Nyloc 1/4-20............................ 2
6 1-603727 Clip, Loom .............................................2
7 1-633110 Switch ....................................................1
8 1-633111 Switch ....................................................1
9 1-633181 Plate, Tapped ........................................2
10 1-633307 Cable, Ground (-) ................................... 1
11 1-633651 Bolt Battery Hold Down .......................... 2
12 107-9277-03 Strap, Battery Hold Down....................... 1
13 1-643275 Relay, 12VDC 40 Amp (27HP)...............2
1-643275 Relay, 12VDC 40 Amp (31HP)...............3
14 109-2589 Harness, Auxiliary Hydraulics.................1
15 1-805005 Washer, Lock 5/16 Heavy ......................4
16 1-807513 Bolt, Carriage #10-24 x 1/2 .................... 2
17 82-2190 Switch ....................................................2
18 109-4813 Switch ....................................................1
19 109-4736 Asm, Switch W/Nut ................................1
20 103-0498 Nut, Ignition............................................1
21 103-5218 Module, Seat Delay................................1
22 103-5221 Switch, PTO...........................................1
23X 103-9268 Harness, Wiring (27HP) .........................1
109-5593 Harness Wiring (31HP) ..........................1
Item Part No. Description Qty.
24 109-0742 Contactor, Reversing Polarity ................ 1
25 109-2398 Breaker, Circuit 40A............................... 1
26 109-2407 Insulator, Battery (+) .............................. 1
27 109-2571 Cover, Circuit Breaker ........................... 1
28 240-3 Grommet ............................................... 1
29 321-4 Screw, HH 1/4-20 x 3/4.......................... 2
30 322-5 Screw, HH 5/16-18 x 1........................... 2
31 3219-2 Nut, Hex 5/16-24.................................... 4
32 3229-2 Bolt, Carriage 1/4-20 x 1 ........................ 2
33 3250-27 Screw, PPH #10-24 x 7/8....................... 2
34 3256-22 Washer, 1/4 SAE................................... 4
35 3256-23 Washer, 5/16 SAE ................................. 2
36 3290-500 Screw, PPH #10-24 x 5/8....................... 6
37 3296-2 Nut, Nyloc #10-24.................................. 6
38 3296-29 Nut, Nyloc 5/16-18................................. 2
39 3296-42 Nut, Nyloc 1/4-20................................... 2
40 32128-33 Nut, Whizlock 1/4-20 ............................. 2
41 32149-8 Nut, Keps 10-32 UNF YZ....................... 2
42 103-2106 Key, Exmark Logo ................................. 1
43 1-816001 Fuse, 20 Amp (27HP) ............................ 2
1-816001 Fuse, 20 Amp (31HP) ............................ 1
44 109355 Fuse, 15 Amp ........................................ 1
45 1-816003 Fuse, 30 Amp (31HP) ............................ 1
Exmark black touch up spray paint – gloss black.
X Use dielectric grease on all wiring harness connectors.
■ Includes items 4 & 26.
 Not shown.
