Exmark Frontrunner 4500-341 - Engine Group 27 HP

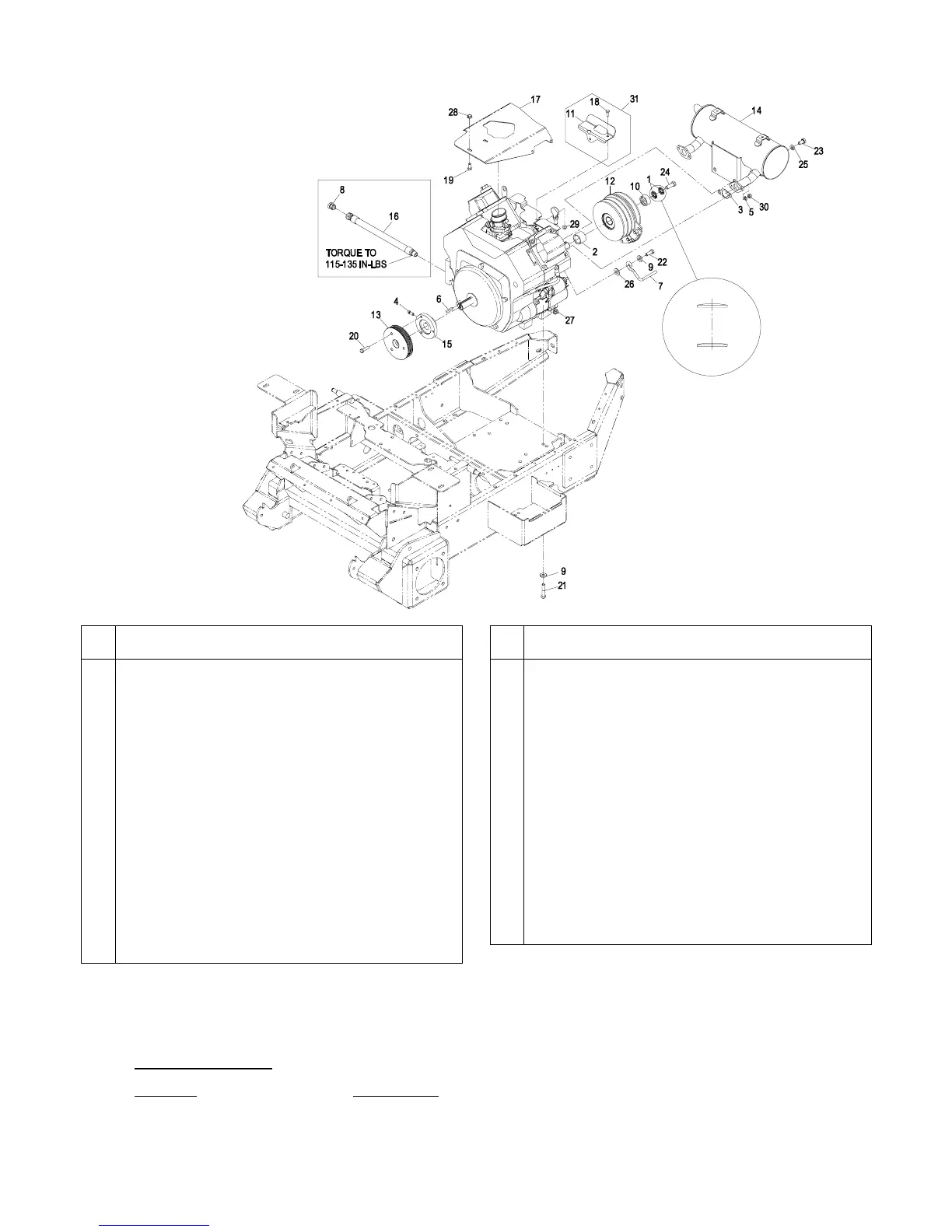

ENGINE GROUP 27HP
12
Item Part No. Description Qty.
1 1-603610 Washer, Spring Disc 7/16 ......................2
2 1-633179 Spacer ...................................................1
3 1-653291 Gasket, Exhaust Manifold ......................2
4V 1-803050 Setscrew, 5/16-18 x 3/4 .........................2
5 1-805005 Washer, Lock 5/16 Heavy ......................4
6 13-2840 Key, Machine 1/4 x 1/4 x 1 1/4 ............... 1
7 52-4780 Rod, Belt................................................1
8 109-1012 Plug, Oil Drain........................................1
9 98-5975 Washer, Spring Disc 3/8 ........................5
10 103-0152 Keeper, Clutch .......................................1
11 103-3535 Kit, Cable Heat Shield ............................1
12 109-6627 Kit, Clutch ..............................................1
13 103-6774 Sheave ..................................................1
14X 103-7480 Kit, Muffler .............................................1
15 103-8813 Hub, Adapter.......................................... 1
16 109-2987 Asm, Hose Oil Drain W/Plug.................. 1
Item Part No. Description Qty.
17 109-1830-03 Bracket, Air Cleaner............................... 1
18 321-4 Screw, HH 1/4-20 x 3/4.......................... 1
19 322-3 Screw, HH 5/16-18 x 3/4........................ 2
20V 322-5 Screw, HH 5/16-18 x 1........................... 3
21V 323-10 Screw, HH 3/8-16 x 2............................. 4
22 323-6 Screw, HH 3/8-16 x 1............................. 1
23 324-2 Screw, HH 7/16-14 x 3/4........................ 2
24V 3212-5 Screw, HH 7/16-20 x 1 1/4..................... 1
25 3253-6 Washer, Lock 7/16................................. 2
26 3256-4 Washer, 3/8 Std..................................... 1
27 3290-357 Nut, Whizlock 3/8-16 ............................. 4
28 32128-20 Nut, Whizlock 5/16-18 ........................... 2
29 32128-33 Nut, Whizlock 1/4-20 ............................. 1
30 33014-00 Nut, Hex M8-1.25................................... 4
31O 103-3535 Kit, Cable Heat Shield............................ 1
Exmark black touch up spray paint – gloss black.
 Use a Teflon Pipe Sealant or equivalent on threads.
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #4, #20, #21 & #24
X Includes item #3.
O Includes item 29
Replacement Parts List
(
Refer to En
g
ine Owner’s Manual
)
Description
Kohler Part No.
Engine Oil Filter...................................
.
5205002-S
Engine Air Filter...................................
.
2508301
Safety Filter .........................................
.
2508304
