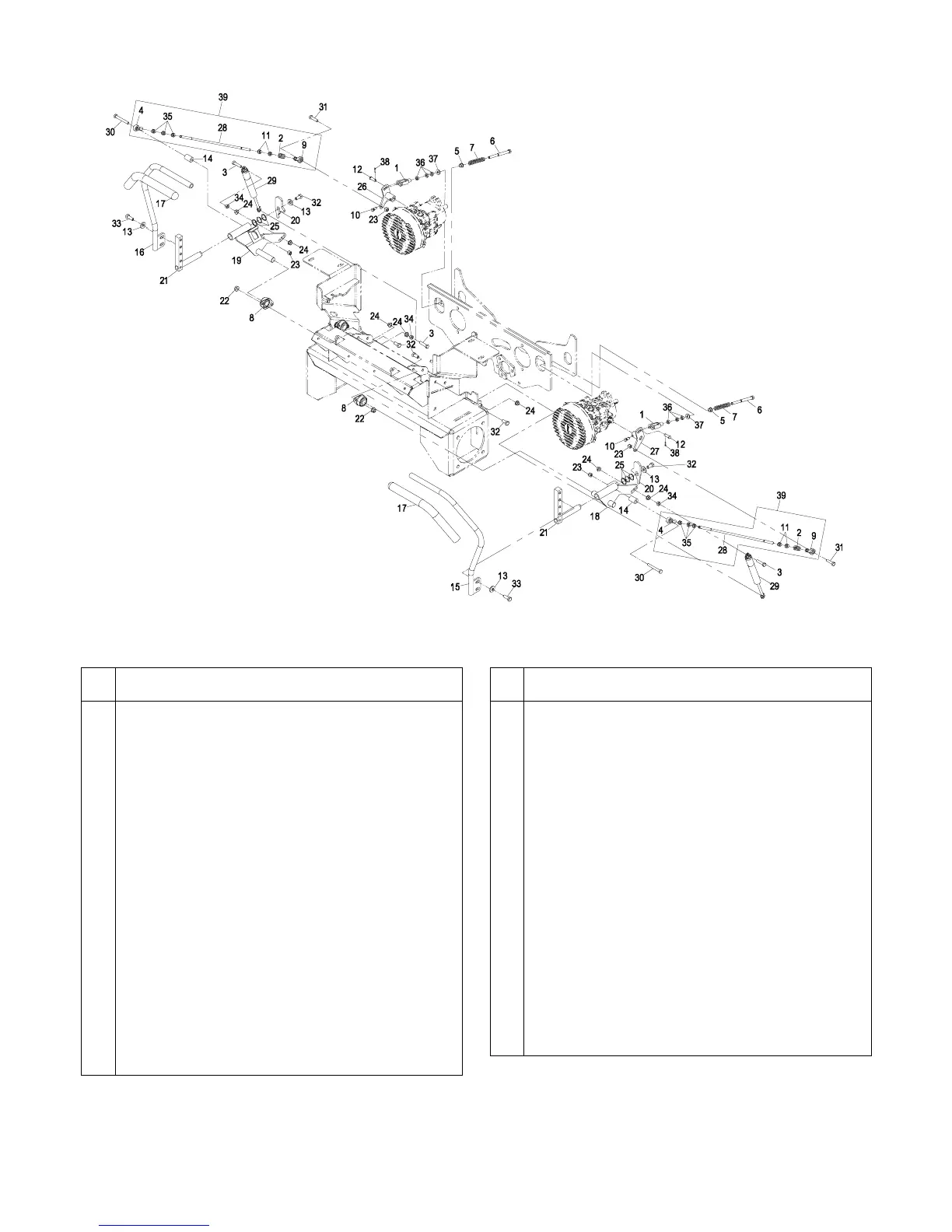

MOTION CONTROL GROUP
10
Item Part No. Description Qty.
1 1-303105 Yoke, Adjustable....................................2
2 1-323245 Spring, Compression .............................2
3 1-403180 Screw, HH 5/16-18 X 1 1/4 Sp ...............4
4 1-543017 Balljoint ..................................................2
5 1-603735 Bushing, Flanged...................................2
6 1-603737 Bolt, Neutral Return ............................... 2
7 1-603807 Spring ....................................................2
8 1-633102 Bearing, Flanged.................................... 4
9 1-633152 Balljoint, (LH) .........................................2
10V 1-803022 Setscrew, 5/16-18 X 5/8.........................2
11 1-804524 Nut, Hex 5/16-24 (LH) ............................ 4
12 1-808280 Pin, Clevis 5/16 X 1................................2
13 98-5975 Washer, Spring Disc 3/8 ........................6
14 103-1361 Spacer ...................................................2
15 103-3457 Asm, Handle W/Grip (LH) ......................1
16 103-3458 Asm, Handle W/Grip (RH)......................1
17 103-3456 Grip, Control Lever.................................2
18 109-3623 Wld, Lever Control (LH) ......................... 1
19 109-3622 Wld, Lever Control (RH)......................... 1
20 103-8262 Tab, Motion Cntrl ...................................2
Item Part No. Description Qty.
21 109-3618 Wld, Control Shaft ................................. 2
22 3290-357 Nut, Whizlock 3/8-16 ............................. 8
23 3296-29 Nut, Nyloc 5/16-18................................. 4
24 32128-20 Nut, Whizlock 5/16-18 ........................... 8
25 106-5335 Washer, Wave....................................... 6
26 103-8286-03 Wld, Pump Ctrl (RH) ............................. 1
27 103-8285-03 Wld, Pump Ctrl (LH) .............................. 1
28 103-8300 Link, Tracking Rod................................. 2
29 109-2339 Damper, Motion Control......................... 2
30 322-12 Screw, HH 5/16-18 X 2 1/2 .................... 2
31 322-6 Screw, HH 5/16-18 X 1 1/4 .................... 2
32 323-4 Screw, HH 3/8-16 X 3/4 ......................... 10
33 323-6 Screw, HH 3/8-16 X 1 ............................ 4
34 3217-6 Nut, Hex 5/16-18.................................... 4
35 3219-2 Nut, Hex 5/16-24.................................... 6
36 3220-2 Nut, Jam 5/16-24................................... 6
37 3256-2 Washer, 1/4 Std..................................... 2
38 3272-5 Pin, Cotter 3/32 X 1/2 ............................ 2
39 109-2582 Asm, Tracking Rod ................................ 2
Exmark black touch up spray paint – Gloss black.
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screw, item #10 & screw, item #32 going into control shaft
weldment item #21.
