Exmark Frontrunner 4500-341 - Rear Frame Group

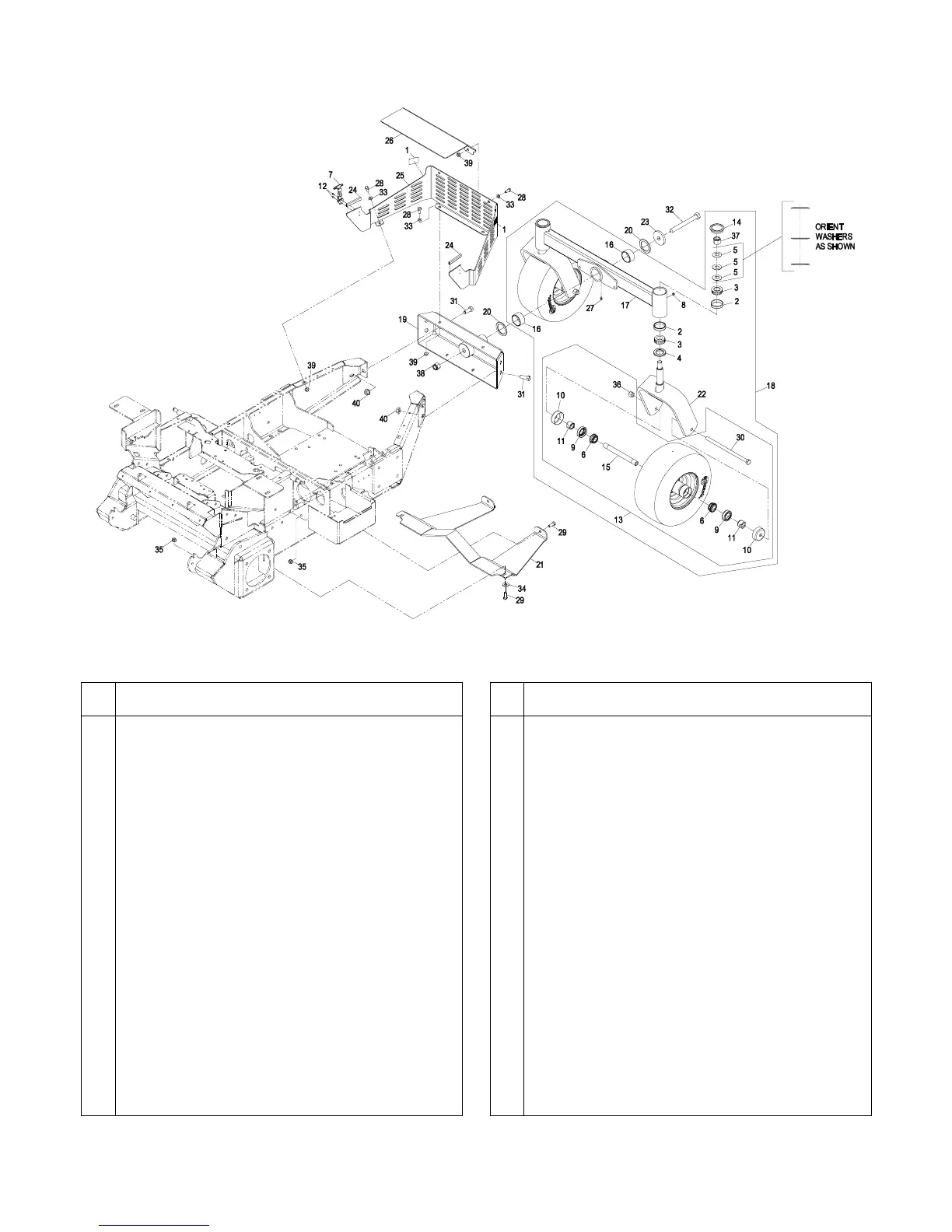

REAR FRAME GROUP
7
Item
Part No.
Description Qty.
1 1-513746 Decal, Muffler.........................................2
2 1-543508 Cup, Bearing Tapered Roller.................. 4
3 1-543509 Cone, Bearing Tapered Roller................ 4
4 1-543511 Seal, Grease..........................................2
5 1-633508 Washer, Spring Disc .............................. 6
6 1-633585 Bearing, Cone Tapered Roller................ 4
7 1-643188 Latch...................................................... 2
8 1-811010 Plug ....................................................... 2
9 103-0063 Seal, Double Lip..................................... 4
10 103-2768 Guard, Seal............................................ 4
11 103-3051 Spacer, Nut............................................4
12 923786 Rivet ......................................................4
13 109-9127 Asm, Caster Wheel................................2
14 103-4882 Cap, Grease ..........................................2
15 103-5156 Axle, Caster ...........................................2
16 103-6825 Bearing, Sleeve......................................2
17 103-7957-03 Wld, Dual Caster Tube...........................1
18 103-8347 Asm, Dual Rear Wheels.........................1
19 103-9045-03 Wld, Rear Frame Dual Wheel ................1
20 103-9051 Bearing, Thrust ......................................2
21 103-9789-03 Guard, Hose ..........................................1
Item
Part No.
Description Qty.
22 103-9868-03 Wld, Caster Fork ................................... 2
23 103-9974 Washer.................................................. 1
24 105-7699 Strip, Seal.............................................. 2
25 109-2769 Asm, Rear Guard W/Decals (27 HP) ..... 1
109-6071 Asm, Rear Guard W/Decals (31 HP) ..... 1
26 109-0414-03 Cover, Muffler (27 HP)........................... 1
109-5580-03 Cover, Muffler (31 HP)........................... 1
27 302-19 Zerk, 1/4-28 Str...................................... 1
28 322-3 Screw, HH 5/16-18 x 3/4........................ 5
29 323-6 Screw, HH 3/8-16 x 1............................. 4
30 325-39 Screw, HH 1/2-13 x 9 1/2....................... 2
31 325-5 Screw, HH 1/2-13 x 1 1/4....................... 6
32 327-24 Screw, HH 5/8-11 x 5 3/4....................... 1
33 3256-23 Washer, 5/16 SAE ................................. 5
34 3256-4 Washer, 3/8 Std..................................... 2
35 3290-357 Nut, Whizlock 3/8-16 ............................. 4
36 3296-23 Nut, Nyloc 1/2-13................................... 2
37 3296-51 Nut, Nyloc 3/4-10................................... 2
38 3296-53 Nut, Nyloc 5/8-11................................... 1
39 32128-20 Nut, Whizlock 5/16-18 ........................... 5
40 32128-49 Nut, Whizlock 1/2-13 ............................. 6
