Exmark LAZER Z S-SERIES User Manual

Maintenance

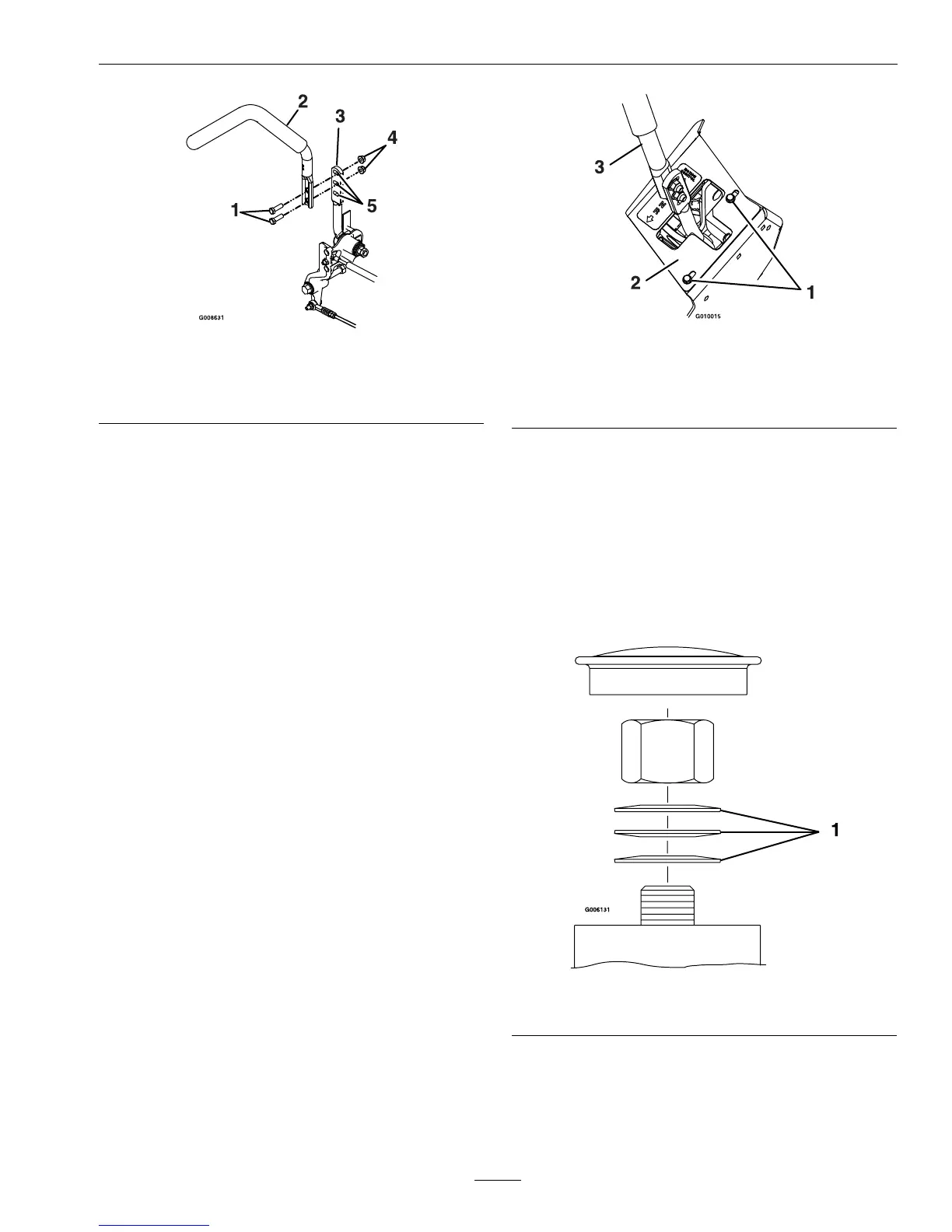

Figure39
1.Bolts4.Nuts
2.Controllever5.Slottedholes
3.Controlarmshaft
2.Movethecontrollevertothenextsetofholes.
Securetheleverwiththetwobolts.
3.Repeattheadjustmentfortheoppositecontrol
lever.
AdjustingtheTilt
Themotioncontrolleverscanbetiltedforeoraftfor
maximumoperatorcomfort.
1.Loosentheupperboltholdingthecontrollever
tothecontrolarmshaft.
2.Loosenthelowerboltjustenoughtopivotthe
controlleverforeoraft
Figure39.Tightenboth
boltstosecurethecontrolinthenewposition.
3.Repeattheadjustmentfortheoppositecontrol
lever.
MotionControlFullForward
TrackingAdjustment
Ifthemachinetravelsorpullstoonesidewhenthe
motioncontrolleversareinthefullforwardposition,
adjustthecoverplates.
1.Loosenthescrewsonacoverplate(seeFigure40).
2.Slidethecoverplatebackwardorforwardto
adjustthetraveloftheleverandtightenthe
screws.
3.Drivethemachineandcheckthefullforward
tracking.
4.Repeatsteps1through3untildesiredtracking
isobtained.
Figure40
RHMotionControlShown
1.Screw
3.Motioncontrollever
2.Coverplate
CasterPivotBearings
Pre-LoadAdjustment
Removedustcapfromcasterandtightennylocnut
untilwashersareatandbackoff1/4ofaturn
toproperlysetthepre-loadonthebearings.If
disassembled,makesurethespringdiscwashersare
reinstalledasshownin
Figure41.
Figure41
1.Springdiscwashers
47

Exmark LAZER Z S-SERIES Specifications

General

Engine Brand	Kawasaki
Cutting Width	60 inches
Transmission	Hydro-Drive
Deck Construction	Fabricated
Deck Material	10-gauge steel
Turning Radius	Zero-turn
Speed	10 mph
